MKJ4A Series

Catalog

MKJ MINIATURE CIRCULAR CONNECTOR

Part	Connector Type	Color	Fastening Type	Current Rating (Amps)	Shielding	Applications	Termination	Primary Material	Shell Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Finish	Shell Size - Insert	Contact Finish - Mating	Insert Material	Orientation	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating	Shell Size - Insert [Min]	Shell Size - Insert [Max]
ITT Cannon, LLC MKJ4A1Z5-3P	Receptacle Male Pins	Black	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-65 ░C	175 °C	Copper Alloy	Black Zinc Nickel	5-3	Gold	Thermoplastic	N (Normal)	Free Hanging (In-Line)	50 µin	1.27 µm
ITT Cannon, LLC MKJ4A1W7-10PD	Receptacle Male Pins	Olive Drab	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Olive Drab Cadmium		Gold	Thermoplastic	D	Free Hanging (In-Line)			10	500 VAC
ITT Cannon, LLC MKJ4A6W9-19PA	Plug Male Pins	Olive Drab	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Olive Drab Cadmium		Gold	Thermoplastic	A	Free Hanging (In-Line)			19	500 VAC	9	19
ITT Cannon, LLC MKJ4A6F6-7SB	Plug Female Sockets	Silver	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Electroless Nickel		Gold	Thermoplastic	B	Free Hanging (In-Line)			7	500 VAC	6	7
ITT Cannon, LLC MKJ4A6W6-7PA	Plug Male Pins	Olive Drab	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Olive Drab Cadmium		Gold	Thermoplastic	A	Free Hanging (In-Line)			7	500 VAC	6	7
ITT Cannon, LLC MKJ4A6F6-4PC	Plug Male Pins	Silver	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Electroless Nickel	6-4	Gold	Thermoplastic	C	Free Hanging (In-Line)			4	500 VAC
ITT Cannon, LLC MKJ4A1W7-10PA	Receptacle Male Pins	Olive Drab	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Olive Drab Cadmium		Gold	Thermoplastic	A	Free Hanging (In-Line)			10	500 VAC
ITT Cannon, LLC MKJ4A1W9-19PC	Receptacle Male Pins	Olive Drab	Push-Pull	5 A	Shielded	Aerospace Communication Systems Industrial Instrumentation Medical	Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C	Copper Alloy	Olive Drab Cadmium		Gold	Thermoplastic	C	Free Hanging (In-Line)			19	500 VAC	9	19

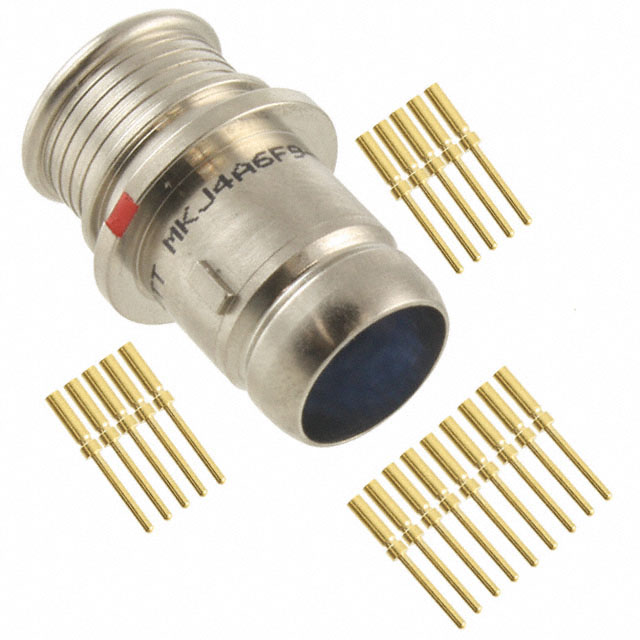

ITT Cannon, LLC MKJ4A6F9-19P	Plug Male Pins		Push-Pull	5 A	Shielded		Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C		Electroless Nickel		Gold		N (Normal)	Free Hanging (In-Line)	50 µin	1.27 µm	19	500 VAC	9	19
ITT Cannon, LLC MKJ4A1W6-7S	Receptacle Female Sockets	Olive Drab	Push-Pull	5 A	Shielded		Crimp	Metal	Aluminum Alloy	Environment Resistant	-55 C	150 °C		Olive Drab Cadmium		Gold		N (Normal)	Free Hanging (In-Line)	50 µin	1.27 µm	7	500 VAC	6	7
