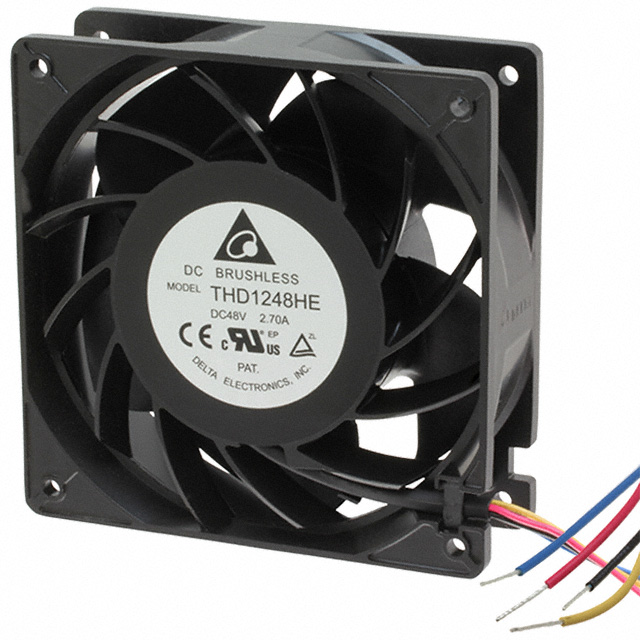

THD1248 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN AXIAL 120X38MM 48VDC WIRE
| Part | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Noise | Bearing Type | Approval Agency | Weight | Weight | Features | Termination | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Width [y] | RPM | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 2.2 A | 70000 Hrs | Aluminum | Plastic | 32 VDC | 59 VDC | 120 mm | 120 mm | 105.82 W | 78 dB(A) | Ball | CE cURus TUV | 499 g | 1.1 lbs | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | 48 VDC | 70 °C | -10 °C | 4.4 in H2O | 1096 Pa | 38 mm | 10900 RPM | Tubeaxial |
