8FM-38 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN SOCKET 8P 0.1 GOLD SMD R/A
| Part | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Termination | Contact Type | Number of Rows | Contact Finish - Mating | Mounting Type | Fastening Type | Insulation Color | Current Rating (Amps) | Number of Positions Loaded | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 8 | |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 4 | Pick and Place |

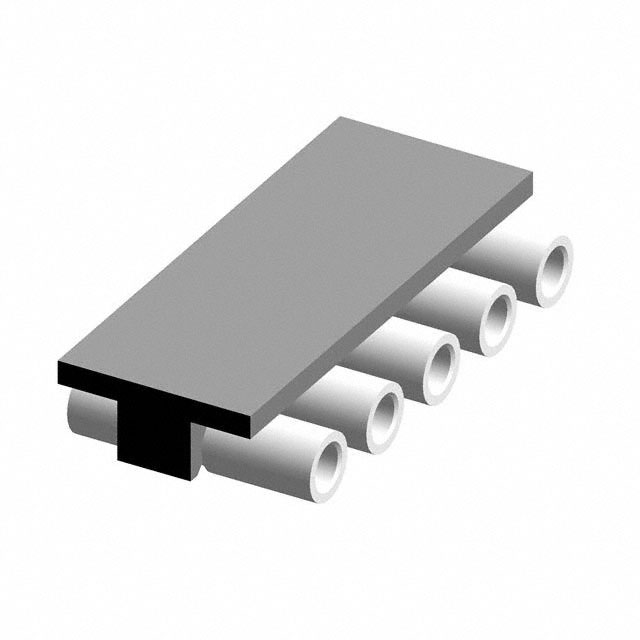

 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 5 | Pick and Place |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | Pick and Place | |

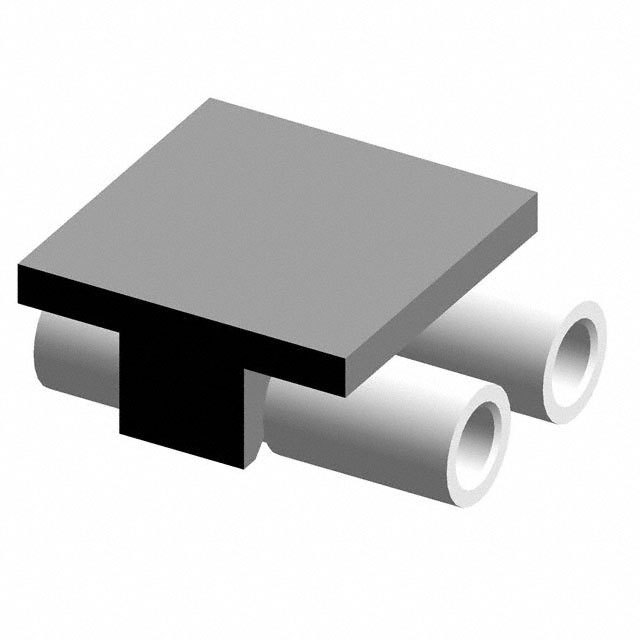

 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 2 | Pick and Place |
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 4 | |

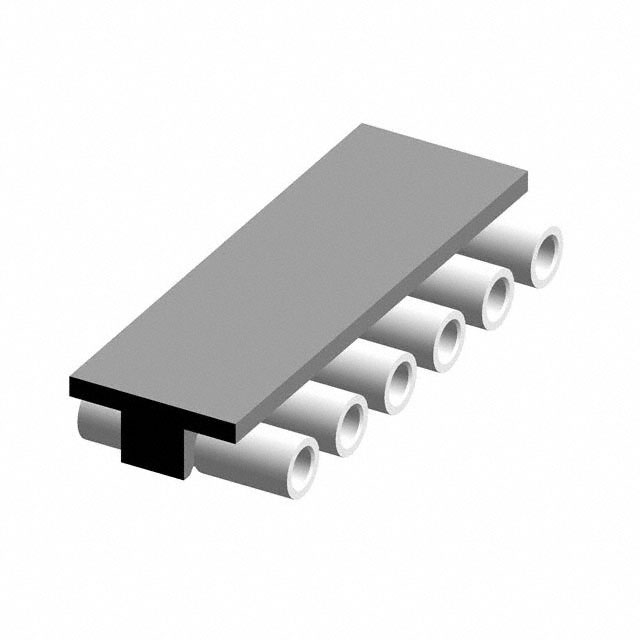

 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 6 | Pick and Place |

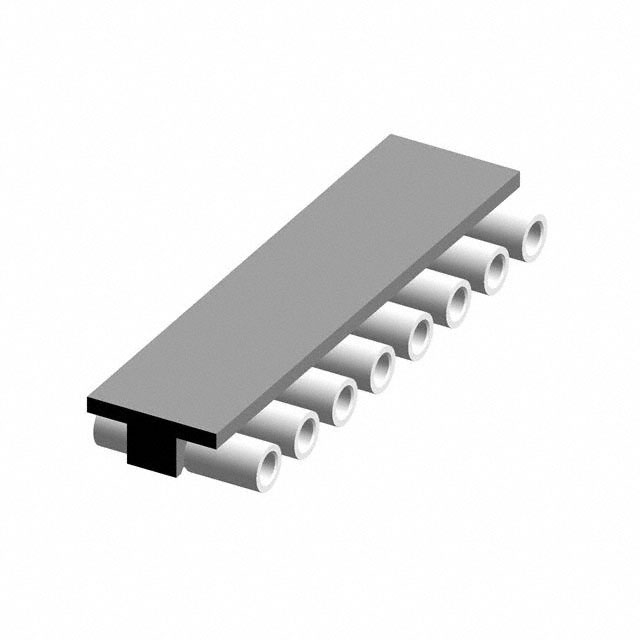

Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 8 | Pick and Place |
 Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All | 9 | Pick and Place |
Preci-Dip | Circular | Beryllium Copper | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 29.5 µin | 0.75 µm | Tin | UL94 V-0 | -55 C | 125 °C | 0.1 " | 2.54 mm | 0.096 in | 2.44 mm | Socket | Solder | Female Socket | 1 | Gold | Right Angle Surface Mount | Push-Pull | Black | 3 A | All |
