3808-0 Series

Catalog

CONN RECEPT PIN .040-.050" .175"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall	Termination	Contact Finish	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Tail Type
Mill-Max Manufacturing Corp. 3808-0-15-01-02-14-10-0	-55 C	125 °C	0.04 in	1.27 mm	1.02 mm	0.05 in	0.175 in	4.45 mm	Knurled Press-Fit	Gold	Beryllium Copper	0.09 in	2.29 mm	2.67 mm	0.105 in	0.25 Ám	10 Áin	0.068 "	1.73 mm	4.45 mm	0.175 "	No Tail

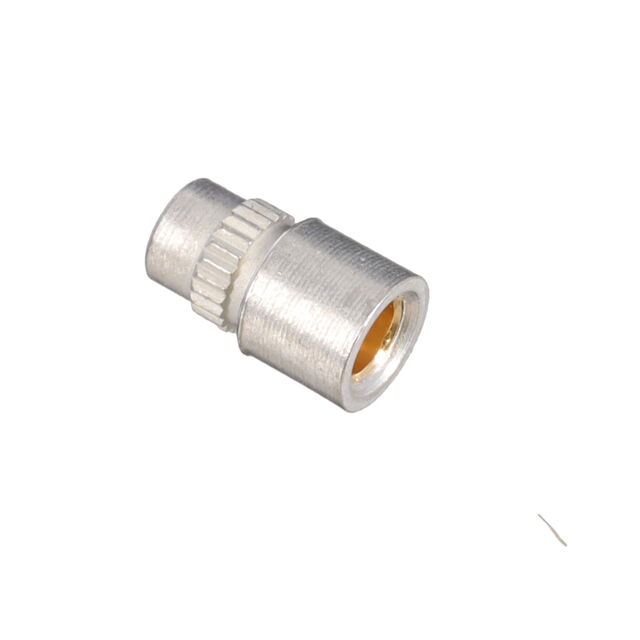

Mill-Max Manufacturing Corp. 3808-0-15-01-02-27-10-0	-55 C	125 °C	0.04 in	1.27 mm	1.02 mm	0.05 in	0.175 in	4.45 mm	Knurled Press-Fit	Gold	Beryllium Copper	0.09 in	2.29 mm	2.67 mm	0.105 in	0.76 Ám	30 Áin	0.068 "	1.73 mm	4.45 mm	0.175 "	No Tail

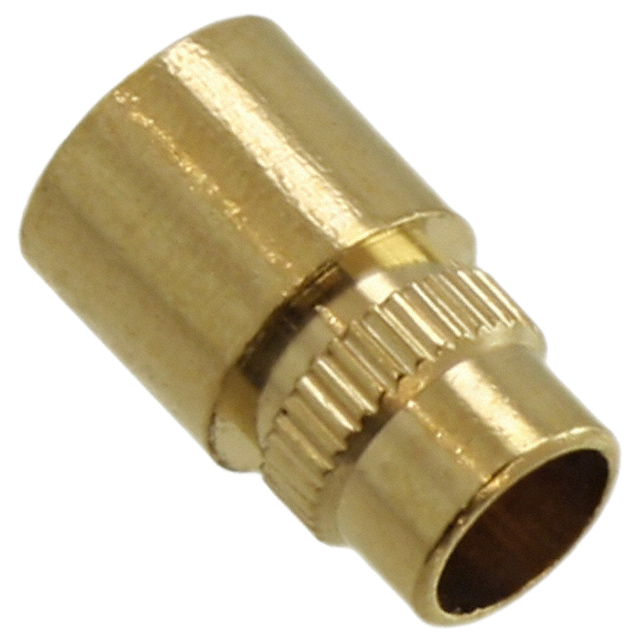

Mill-Max Manufacturing Corp. 3808-0-15-15-02-27-10-0	-55 C	125 °C	0.04 in	1.27 mm	1.02 mm	0.05 in	0.175 in	4.45 mm	Knurled Press-Fit	Gold	Beryllium Copper	0.09 in	2.29 mm	2.67 mm	0.105 in	0.76 Ám	30 Áin	0.068 "	1.73 mm	4.45 mm	0.175 "	No Tail
Mill-Max Manufacturing Corp. 3808-0-15-80-02-27-10-0	-55 C	125 °C	0.04 in	1.27 mm	1.02 mm	0.05 in	0.175 in	4.45 mm	Knurled Press-Fit	Gold	Beryllium Copper	0.09 in	2.29 mm	2.67 mm	0.105 in	0.76 Ám	30 Áin	0.068 "	1.73 mm	4.45 mm	0.175 "	No Tail
