330062 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

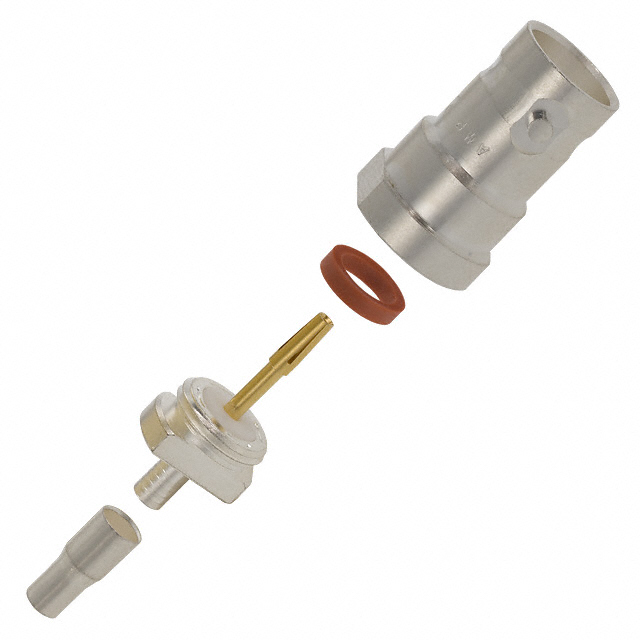

CONN BNC JACK STR 50 OHM PUSH
| Part | Mounting Type | Voltage Rating | Center Contact Material | Frequency - Max [Max] | Number of Ports | Housing Color | Fastening Type | Contact Termination | Dielectric Material | Body Material | Body Finish | Shield Termination | Impedance | Includes | Mating Cycles | Connector Style | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 500 V | Beryllium Copper | 2.5 GHz | 1 | Silver | Bayonet Lock | Push On | Fluoropolymer (FP) | Brass | Silver | Crimp | 50 Ohms | 1 Connector 1 Contact 1 Ferrule 1 Gasket | 500 | BNC | Gold | 85 °C | -55 °C | 188 RG-174 | Female Socket Jack |
