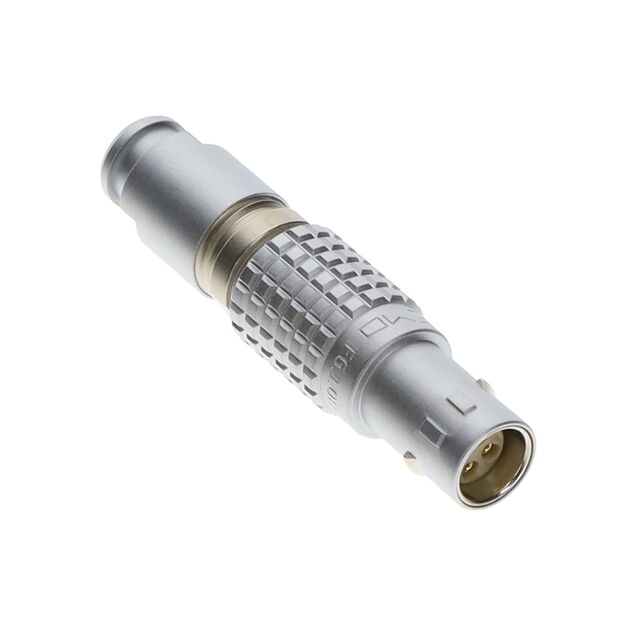

FGJ.0B Series
Manufacturer: LEMO
Catalog
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Current Rating (Amps) | Features | Ingress Protection | Contact Finish - Mating | Shell Finish | Mounting Type | Fastening Type | Primary Material | Connector Type | Contact Material | Shielding | Color | Shell Size - Insert | Insert Material | Backshell Material, Plating | Shell Material | Orientation [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Cable Opening [Max] | Cable Opening [Min] | Number of Positions | Termination | Contact Type | Contact Shape | Note | Contact Size | Housing Color | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | 8 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 303 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | |||||||||||
5.2 mm | 4.2 mm | 2 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 309 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 0.205 in | 0.165 " | 9 | ||||||||||
5.2 mm | 4.2 mm | 7 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 304 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 0.205 in | 0.165 " | 4 | ||||||||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | 10 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 302 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 2 | ||||||||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | 7 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 304 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 4 | ||||||||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | 10 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 302 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 2 | Crimp | |||||||||
5.2 mm | 4.2 mm | 7 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 304 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 0.205 in | 0.165 " | 4 | ||||||||||
5.2 mm | 4.2 mm | 8 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 303 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 0.205 in | 0.165 " | Crimp | ||||||||||
5.2 mm | 4.2 mm | 2.5 A | Backshell | IP50 - Dust Protected | Gold | Chrome | Free Hanging (In-Line) | Push-Pull | Metal | Plug Female Sockets | Bronze | Shielded | Silver | 306 | Polyetheretherketone (PEEK) | Brass Chrome | Brass | J | 1.5 Ám | 59 Áin | -55 C | 250 °C | UL94 V-0 | 0.205 in | 0.165 " | 6 | ||||||||||
LEMO | Backshell | IP50 - Dust Protected | Chrome | Free Hanging (In-Line) | Detent Lock Push-Pull | Plug Housing | Shielded | 305 | Polyetheretherketone (PEEK) | Brass | J | -55 C | 250 °C | 5 | Crimp | Circular | Contacts Not Included | 0.7 mm | Silver | For Female Sockets |
