TPS54623 Series

Catalog

4.5-V TO 17-V, 6-A SYNCHRONOUS SWIFT™ BUCK CONVERTER WITH LIGHT LOAD EFFICIENCY

Part	Function	Frequency - Switching [Min]	Frequency - Switching [Max]	Output Type	Supplier Device Package	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Mounting Type	Package / Case	Voltage - Output (Min/Fixed)	Number of Outputs	Output Configuration	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Topology	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Main Purpose	Contents	Regulator Topology	Voltage - Output
Texas Instruments TPS54623RHLR	Step-Down	200 kHz	1.6 MHz	Adjustable	14-VQFN 3.5x3.5	17 V	-40 °C	150 °C	6 A	Surface Mount	14-VFQFN Exposed Pad	0.6 V	1	Positive	15 V	4.5 V	Buck

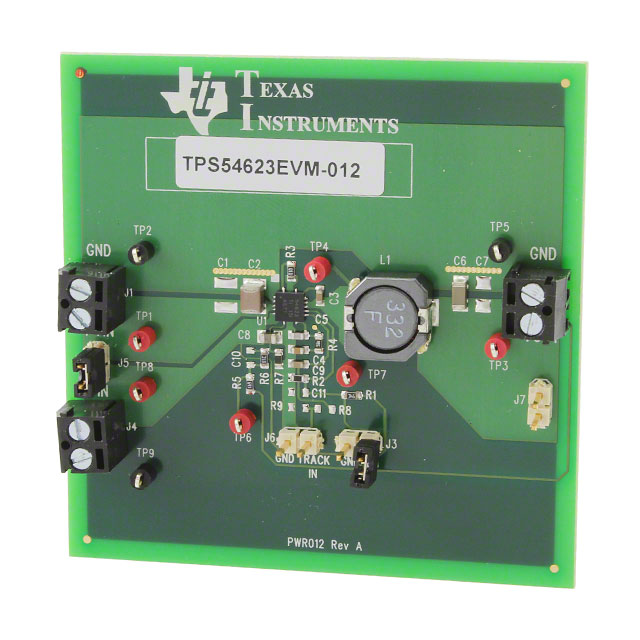

Texas Instruments TPS54623EVM-012		200 kHz	1.6 MHz						6 A									1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	8 V	17 V	TPS54623	DC/DC Step Down	Board(s)	Buck	3.3 V
Texas Instruments TPS54623RHLT	Step-Down	200 kHz	1.6 MHz	Adjustable	14-VQFN 3.5x3.5	17 V	-40 °C	150 °C	6 A	Surface Mount	14-VFQFN Exposed Pad	0.6 V	1	Positive	15 V	4.5 V	Buck
