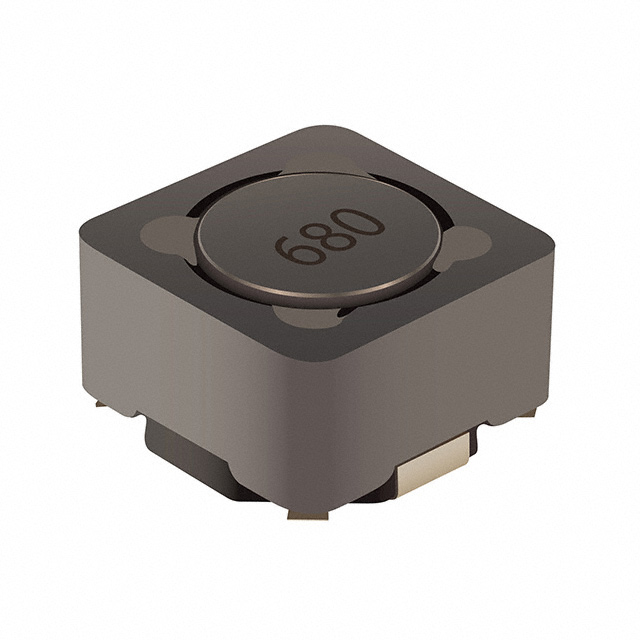

SRR0745A Series

Catalog

POWER INDUCTOR (SMD), 100 ΜH, 700 MA, SHIELDED, 780 MA, SRR0745A SERIES

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR)	Tolerance	Shielding	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Package / Case	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]
Bourns Inc. SRR0745A-101M	Surface Mount	125 °C	-40 C	700 mA	450 mOhm	20 %	Shielded	100 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	780 mA	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm
Bourns Inc. SRR0745A-150M	Surface Mount	125 °C	-40 C	1.9 A		20 %	Shielded	15 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	2.1 A	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm	75 mOhm
Bourns Inc. SRR0745A-820M	Surface Mount	125 °C	-40 C	780 mA		20 %	Shielded	82 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	900 mA	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm	400 mOhm
Bourns Inc. SRR0745A-100M	Surface Mount	125 °C	-40 C	2.1 A		20 %	Shielded	10 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	2.5 A	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm
Bourns Inc. SRR0745A-270M	Surface Mount	125 °C	-40 C	1.45 A	130 mOhm	20 %	Shielded	27 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	1.62 A	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm
Bourns Inc. SRR0745A-220M	Surface Mount	125 °C	-40 C	1.65 A		20 %	Shielded	22 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	1.75 A	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm	96 mOhm
Bourns Inc. SRR0745A-470M	Surface Mount	125 °C	-40 C	1.05 A		20 %	Shielded	47 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	1.2 A	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm	210 mOhm
Bourns Inc. SRR0745A-330M	Surface Mount	125 °C	-40 C	1.35 A	150 mOhm	20 %	Shielded	33 µH	7.3 mm	0.287 "	0.287 in	7.3 mm	1.45 A	Ferrite	1 kHz	Nonstandard	AEC-Q200	0.185 "	4.7 mm
