C01610C014 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

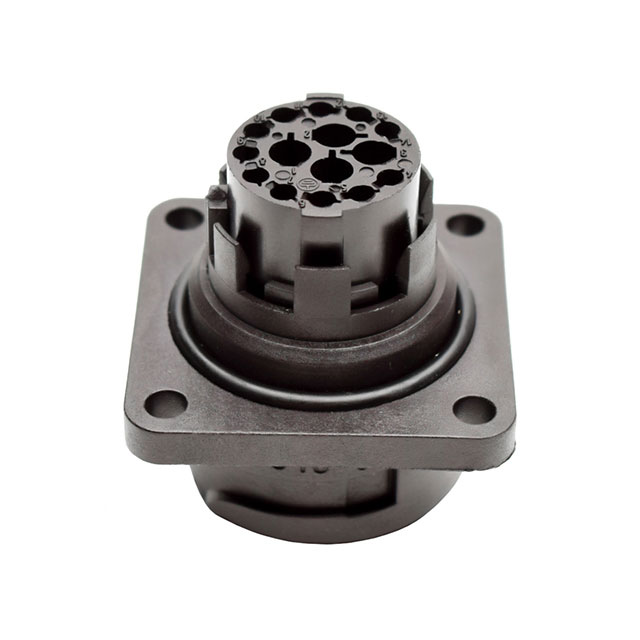

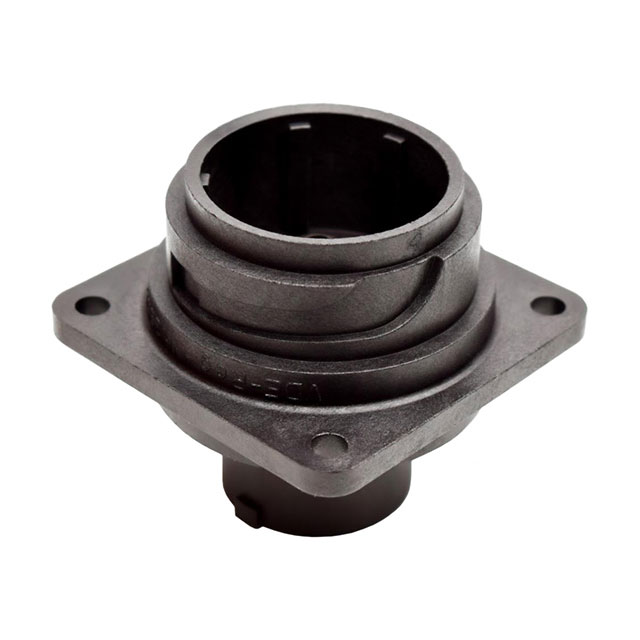

CONN RCPT HSNG MALE 15POS PNL MT
| Part | Type | Shielding | Contact Shape | Mounting Feature | Number of Positions | Housing Color | Mounting Type | Shell Size - Insert [custom] | Orientation | Note | Ingress Protection | Fastening Type | Connector Type | Contact Size | Shell Material | Contact Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | For Male Pins | Unshielded | Circular | Flange | 15 | Black | Panel Mount | 2 | N (Normal) | Contacts Not Included | IP65 - Dust Tight Water Resistant | Bayonet Lock | Receptacle Housing | 1.5 mm 1.6 mm | Nylon 6/6 Polyamide (PA66) | Crimp | UL94 V-0 | 125 °C | -40 C | |
 Amphenol Tuchel Industrial | For Male Pins | Unshielded | Circular | Flange | 15 | Black | Panel Mount | N (Normal) | Contacts Not Included | IP65 - Dust Tight Water Resistant | Bayonet Lock | Receptacle Housing | 1.5 mm 2.5 mm | Nylon 6/6 Polyamide (PA66) | Crimp | UL94 V-0 | 125 °C | -40 C | 1 |
