PKE531 Series
Manufacturer: Flex Power Modules
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE
| Part | Voltage - Input (Min) [Min] | Mounting Type | Current - Output (Max) [Max] | Control Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Features | Number of Outputs | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Efficiency | Applications | Standard Number | Voltage - Isolation | Package / Case | Power (Watts) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

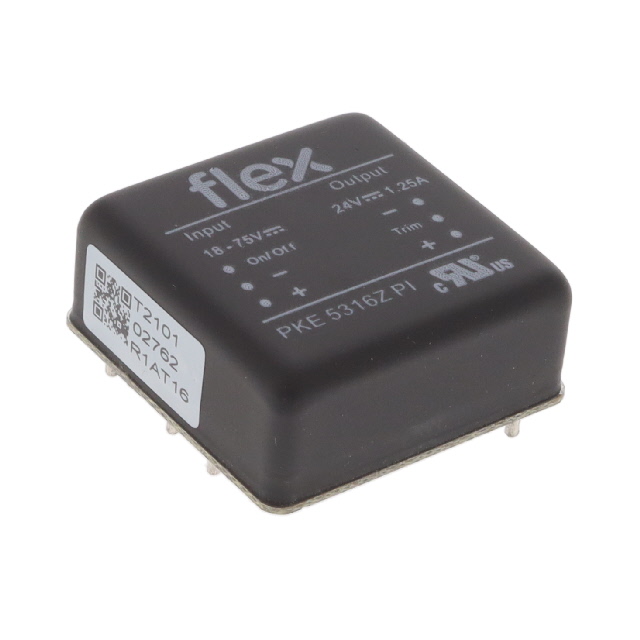

 Flex Power Modules | 18 V | Through Hole | 1.25 A | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 24 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 92 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 30 Watts | Isolated Module |
 Flex Power Modules | 18 V | Through Hole | 2.5 A | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 12 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 91 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 30 Watts | Isolated Module |
 Flex Power Modules | 18 V | Through Hole | 463 mA | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 54 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 90 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 25 W | Isolated Module |
 Flex Power Modules | 18 V | Through Hole | 6 A | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 5 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 91 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 30 Watts | Isolated Module |

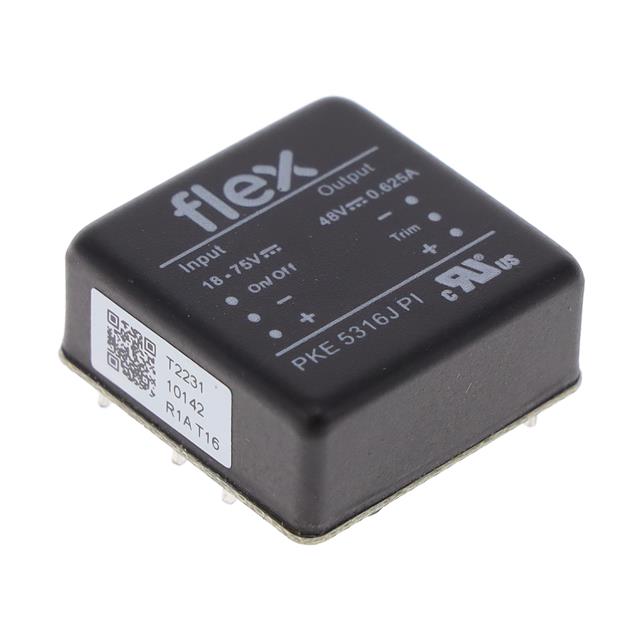

 Flex Power Modules | 18 V | Through Hole | 625 mA | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 48 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 91 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 30 Watts | Isolated Module |
Flex Power Modules | 18 V | Through Hole | 2 A | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 15 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 91 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 30 Watts | Isolated Module |
Flex Power Modules | 18 V | Through Hole | 7 A | Active Low Enable | 25.4 mm | 0.43 in | 10.8 mm | 1 in | 25.4 mm | 1 " | 75 V | Adjustable Output Remote On/Off | 1 | 3.3 V | -40 °C | 115 °C | CB CSA IEC TUV UL | 89 % | ITE (Commercial) | 62368-1 | 1.5 kV | 6-DIP Module | 23 Watts | Isolated Module |
