9773 Series
Manufacturer: Belden Inc.
Beta
⌘K

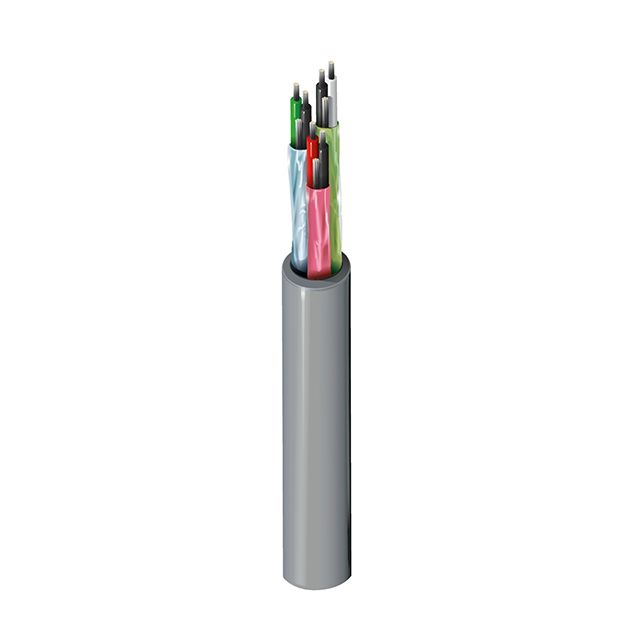

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 3 PAIR, 18 AWG, 100 FT, 30.48 M
| Part | Shield Material | Shield Coverage | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Shield Type | Usage | Wire Gauge | Number of Conductors | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire | 80 °C | -20 ░C | Chrome | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Foil | Audio Control Instrumentation | 18 AWG | 6 | 100 ft | 30.5 m | 10.26 mm | 0.404 in | Multi-Pair | 30 AWG | 19 | Polypropylene (PP) | Copper Tinned | ||
 Belden Inc. | Aluminum | 100 % | Drain Wire | 80 °C | -20 ░C | Chrome | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Foil | Audio Control Instrumentation | 18 AWG | 6 | 10.26 mm | 0.404 in | Multi-Pair | 30 AWG | 19 | Polypropylene (PP) | Copper Tinned | 152.4 m | 500 ft |
