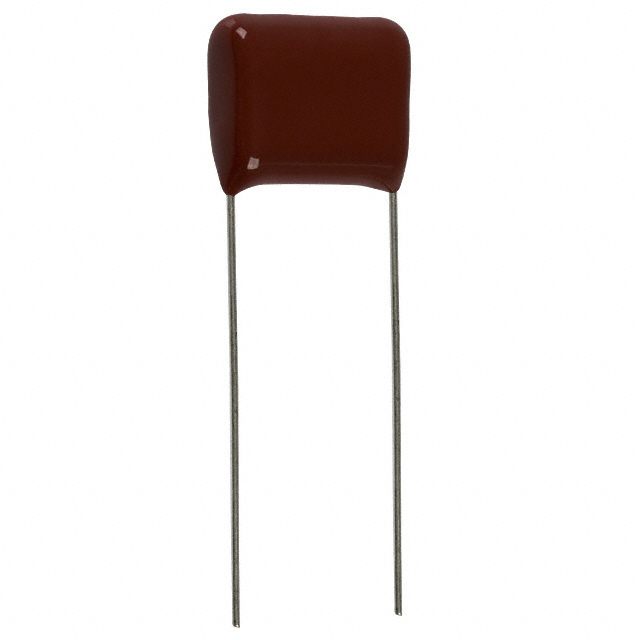

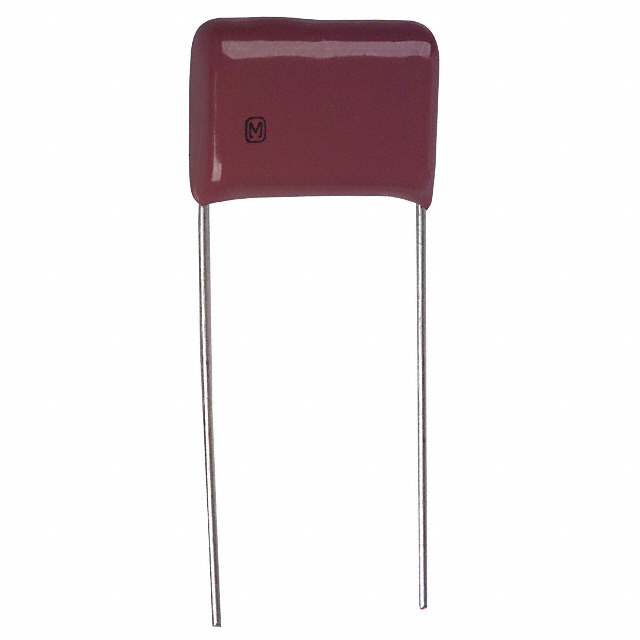

ECQ-E2824 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.82UF 10% 250VDC RAD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Dielectric Material	Lead Spacing	Lead Spacing	Tolerance	Mounting Type	Applications	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Industrial Automation Sales ECQ-E2824KS	85 °C	-40 °C	Radial	Polyester Metallized	27.5 mm	1.083 in	10 %	Through Hole	General Purpose	250 V	0.532 "	13.5 mm	31 mm	7 mm	0.276 in	1.22 in	0.82 µF	PC Pins
Panasonic Industrial Automation Sales ECQ-E2824RJB	105 ░C	-40 °C	Radial	Polyester Metallized	12.5 mm	0.492 in	5 %	Through Hole	General Purpose	250 V			15.3 mm	6.3 mm	0.248 in	0.602 in	0.82 µF	PC Pins	18.3 mm	0.72 in
Panasonic Industrial Automation Sales ECQ-E2824KFW	105 ░C	-40 °C	Radial	Polyester Metallized	10 mm	0.394 in	10 %	Through Hole	General Purpose	250 V			18.5 mm	6.5 mm	0.256 in	0.728 in	0.82 µF	PC Pins	19.5 mm	0.768 in
Panasonic Industrial Automation Sales ECQ-E2824KB	105 ░C	-40 °C	Radial	Polyester Metallized	12.5 mm	0.492 in	10 %	Through Hole	General Purpose	250 V	0.567 in	14.4 mm	15.3 mm	6.3 mm	0.248 in	0.602 in	0.82 µF	PC Pins
Panasonic Industrial Automation Sales ECQ-E2824JB	105 ░C	-40 °C	Radial	Polyester Metallized	12.5 mm	0.492 in	5 %	Through Hole	General Purpose	250 V			15.3 mm	6.3 mm	0.248 in	0.602 in	0.82 µF	PC Pins		0.563 in	14.3 mm
Panasonic Industrial Automation Sales ECQ-E2824JBB	105 ░C	-40 °C	Radial	Polyester Metallized	5 mm	0.197 in	5 %	Through Hole	General Purpose	250 V			15.3 mm	6.3 mm	0.248 in	0.602 in	0.82 µF	PC Pins	18.3 mm	0.72 in
Panasonic Industrial Automation Sales ECQ-E2824JFB	105 ░C	-40 °C	Radial	Polyester Metallized	10 mm	0.394 in	5 %	Through Hole	General Purpose	250 V			18.5 mm	6.5 mm	0.256 in	0.728 in	0.82 µF	PC Pins	19.5 mm	0.768 in
Panasonic Industrial Automation Sales ECQ-E2824JF3	105 ░C	-40 °C	Radial	Polyester Metallized	5 mm	0.197 in	5 %	Through Hole	General Purpose	250 V			18.5 mm	6.5 mm	0.256 in	0.728 in	0.82 µF	PC Pins	19.5 mm	0.768 in
Panasonic Industrial Automation Sales ECQ-E2824RKF	105 ░C	-40 °C	Radial	Polyester Metallized	15 mm	0.591 in	10 %	Through Hole	General Purpose	250 V			18.5 mm	6.5 mm	0.256 in	0.728 in	0.82 µF	PC Pins	19.5 mm	0.768 in
Panasonic Industrial Automation Sales ECQ-E2824RJF	105 ░C	-40 °C	Radial	Polyester Metallized	15 mm	0.591 in	5 %	Through Hole	General Purpose	250 V			18.5 mm	6.5 mm	0.256 in	0.728 in	0.82 µF	PC Pins	19.5 mm	0.768 in
