2238139 Series

Catalog

HIGH TEMPERATURE 250 POSITIVE LO

Part	Tab Thickness	Tab Thickness	Termination	Tab Width	Tab Width	Contact Material	Tab Length	Tab Length	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Mounting Type	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]

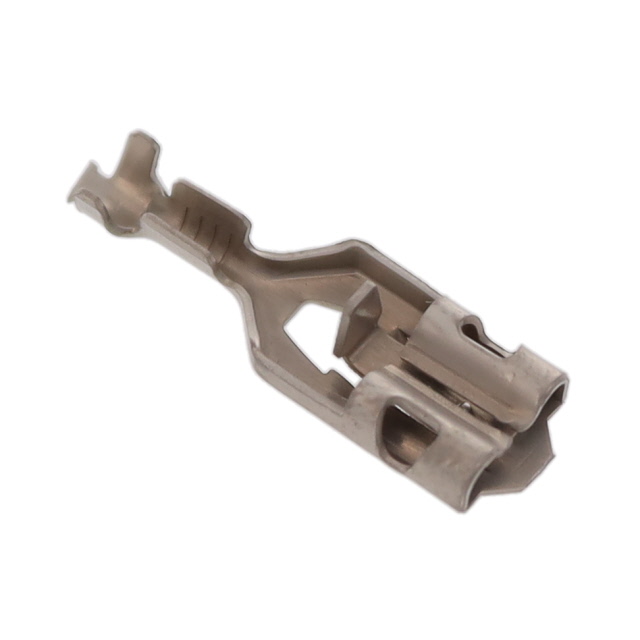

TE Connectivity Raychem Cable Protection 2238139-1	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	Steel	0.255 in	6.48 mm	Nickel	22 AWG	17.5 AWG	Female	Free Hanging (In-Line)	0.89 in	22.61 mm	Standard	Non-Insulated	0.06 in	0.1 in	2.54 mm	1.52 mm
