207524 Series

Catalog

CONN HDR 6POS 0.197 TIN PCB

Part	Contact Material	Mounting Type	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Connector Type	Insulation Color	Style	Contact Shape	Number of Positions Loaded	Features	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Material Flammability Rating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish - Mating

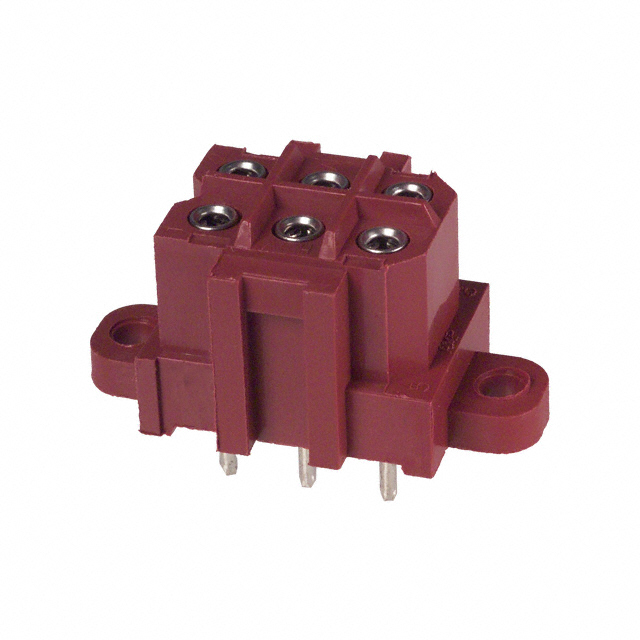

TE Connectivity Raychem Cable Protection 207524-7	Phosphor Bronze	Through Hole	Solder	Tin	150 Áin	3.81 Ám	5 mm	0.197 "	600 V	130 °C	-55 °C	0.565 in	14.35 mm	Nylon Polyamide (PA)	2	Header	Black Red	Board to Cable/Wire	Circular	All	Mounting Flange	7.5 A	150 Áin	3.81 Ám	Latch Holder	UL94 V-0	6	0.181 in	4.6 mm	5 mm	0.197 in	Female Socket

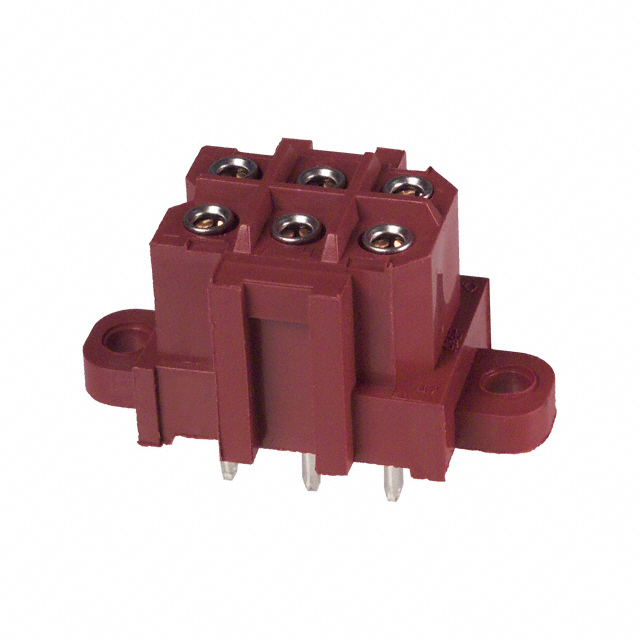

TE Connectivity Raychem Cable Protection 207524-9	Phosphor Bronze	Through Hole	Solder	Tin	30 Áin	0.76 Ám	5 mm	0.197 "	600 V	130 °C	-55 °C	0.565 in	14.35 mm	Nylon Polyamide (PA)	2	Header	Black Red	Board to Cable/Wire	Circular	All	Mounting Flange	7.5 A	150 Áin	3.81 Ám	Latch Holder	UL94 V-0	6	0.181 in	4.6 mm	5 mm	0.197 in	Female Socket	Gold PdNi +Gold
