CRE22F2F Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES
| Part | Mechanical Life | Electrical Life | Actuator Marking | Circuit | Voltage Rating - AC | Termination Style | Actuator Type | Switch Function | Color - Actuator/Cap | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

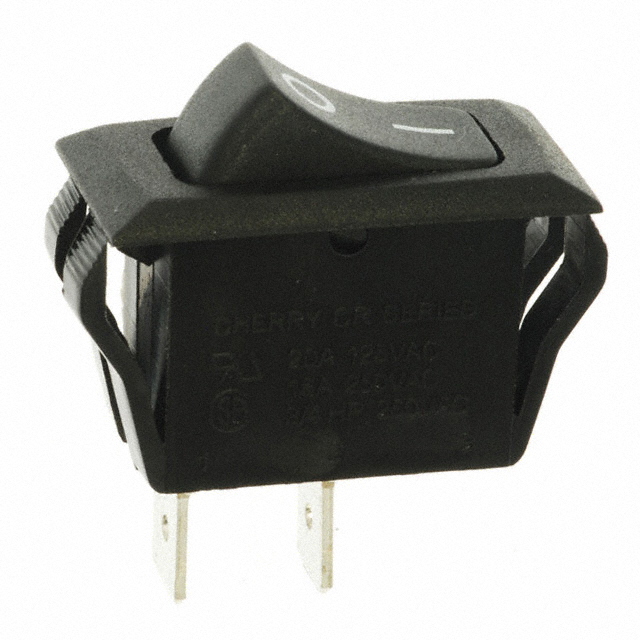

 ZF Electronics | 100000 Cycles | 6000 Cycles | O - | SPST | 125 V | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | On-Off | Black | 20 A | 85 °C | -20 ░C | Panel Mount Snap-In | 28.5 mm | 12.1 mm |

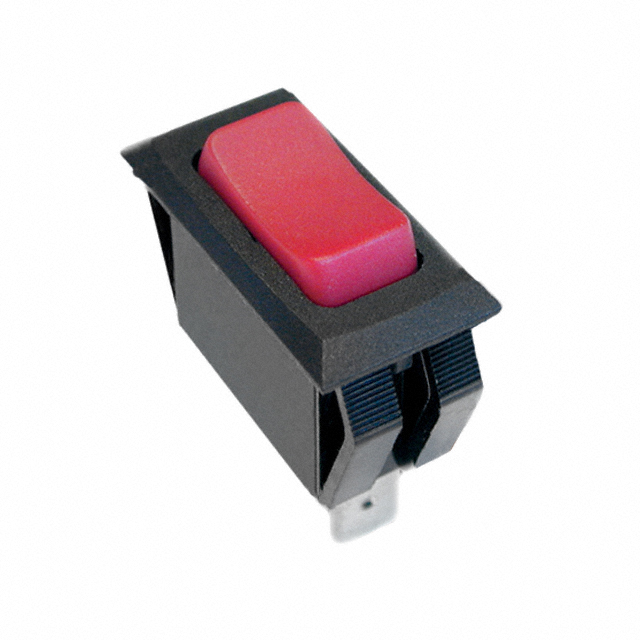

 ZF Electronics | 100000 Cycles | 6000 Cycles | O - | SPST | 125 V | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | On-Off | Red | 20 A | 85 °C | -20 ░C | Panel Mount Snap-In | 28.5 mm | 12.1 mm |
