2307819 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,BB,REC,DRVT,SMD,AU.76,TR

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Number of Positions Loaded	Contact Shape	Contact Material	Insulation Height	Insulation Height	Number of Rows	Insulation Material	Voltage Rating	Features	Current Rating (Amps)	Mounting Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Number of Positions	Contact Finish - Mating	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions

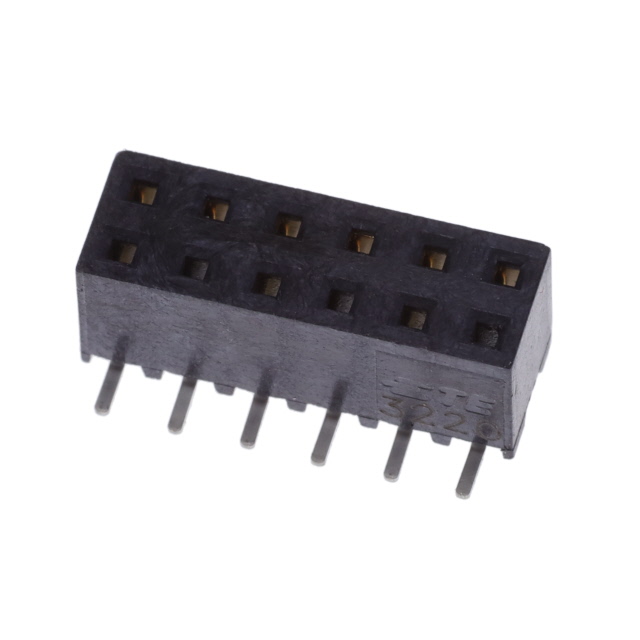

TE Connectivity Raychem Cable Protection 1-2307819-2	0.3 µm	12 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry	12	Gold	Solder	UL94 V-0	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 2307819-8	0.3 µm	12 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry	8	Gold	Solder	UL94 V-0	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 1-2307819-6	0.3 µm	12 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry		Gold	Solder	UL94 V-0	30 Áin	0.76 Ám	16
TE Connectivity Raychem Cable Protection 1-2307819-4	3 µm	118.1 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry	14	Gold	Solder	UL94 V-0	30 Áin	0.76 Ám

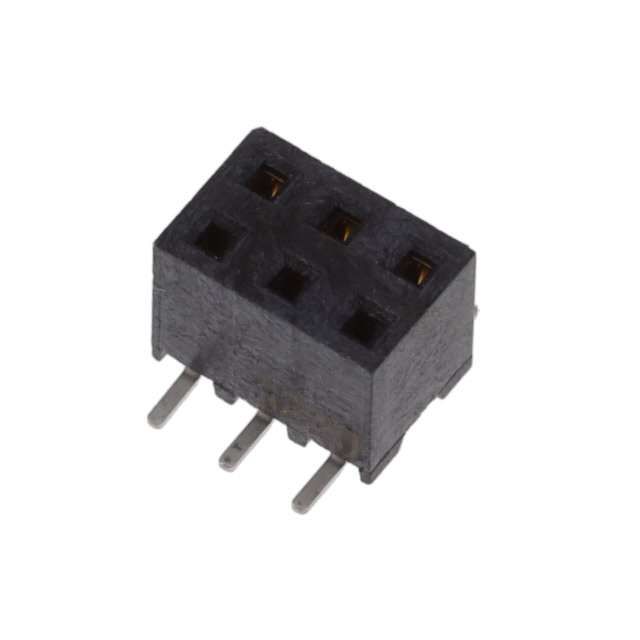

TE Connectivity Raychem Cable Protection 2307819-6	3 µm	118.1 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry	6	Gold	Solder	UL94 V-0	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 1-2307819-0	0.3 µm	12 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry	10	Gold	Solder	UL94 V-0	30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 2307819-4	0.3 µm	12 µin	125 °C	-40 °C	Black	All	Square	Phosphor Bronze	0.177 in	4.5 mm	2	Liquid Crystal Polymer (LCP)	125 VDC	Pick and Place	2 A	Surface Mount	Female Socket	0.079 in	2 mm	Tin	Push-Pull	0.079 in	2 mm	Receptacle Bottom or Top Entry	4	Gold	Solder	UL94 V-0	30 Áin	0.76 Ám
