OSTNR24 Series

Catalog

3.5MM 2 PC TERM BLOCK HEADER VER

Part	Contact Material	Housing Material	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Header Orientation	Features	Contact Mating Finish	Current - UL	Number of Positions	Voltage - UL	Termination Style	Number of Levels	Mounting Type	Color	Type	Positions Per Level	Pitch	Pitch	Insulation Height [z]	Insulation Height [z]
On Shore Technology Inc. OSTNR241200	Copper	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	11.6 mm	0.457 in	UL94 V-0	115 °C	-40 C	Vertical	Mating Flange	Tin	8 A	24	300 V	Solder	2	Through Hole	Black	Header Male Pins Shrouded (4 Side)	12	3.5 mm	0.138 "

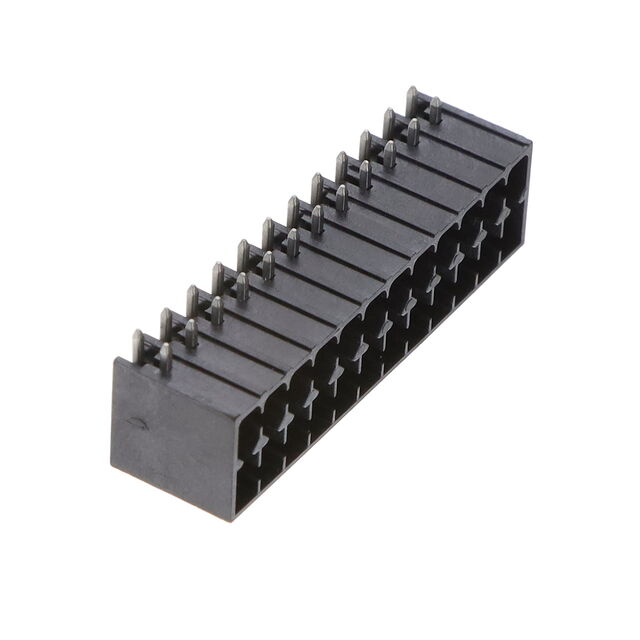

On Shore Technology Inc. OSTNR241101	Copper	Liquid Crystal Polymer (LCP)	2 mm	0.079 in			UL94 V-0	115 °C	-40 C	90° Right Angle		Tin	8 A	24	150 V	Solder	2	Through Hole	Black	Header Male Pins Shrouded (4 Side)	12	3.5 mm	0.138 "	10.8 mm	0.425 in

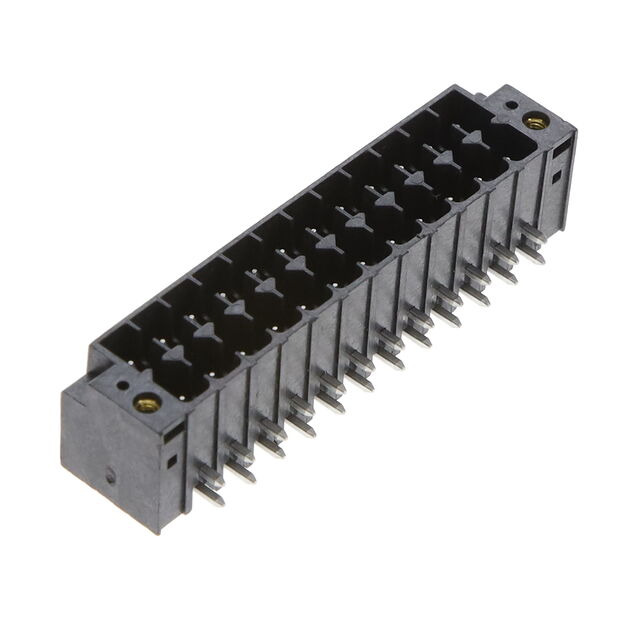

On Shore Technology Inc. OSTNR241201	Copper	Liquid Crystal Polymer (LCP)	2 mm	0.079 in			UL94 V-0	115 °C	-40 C	90° Right Angle	Mating Flange	Tin	8 A	24	150 V	Solder	2	Through Hole	Black	Header Male Pins Shrouded (4 Side)	12	3.5 mm	0.138 "	10.8 mm	0.425 in

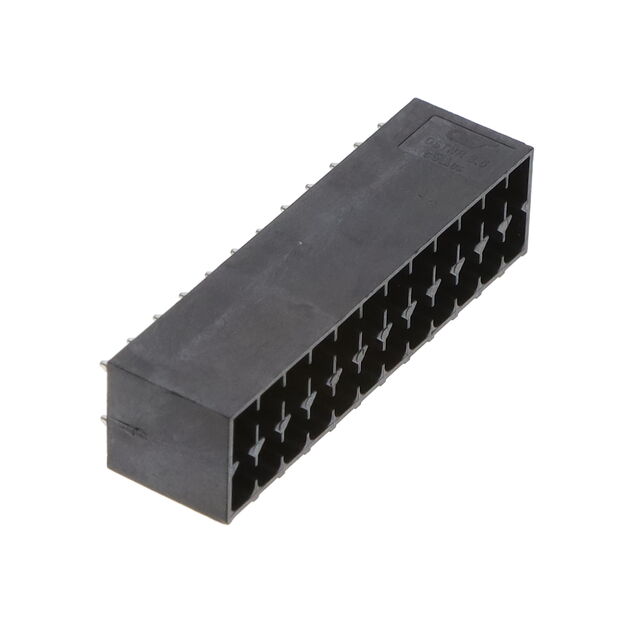

On Shore Technology Inc. OSTNR241100	Copper	Liquid Crystal Polymer (LCP)	2 mm	0.079 in	11.6 mm	0.457 in	UL94 V-0	115 °C	-40 C	Vertical		Tin	8 A	24	300 V	Solder	2	Through Hole	Black	Header Male Pins Shrouded (4 Side)	12	3.5 mm	0.138 "
