PSA39 Series

Catalog

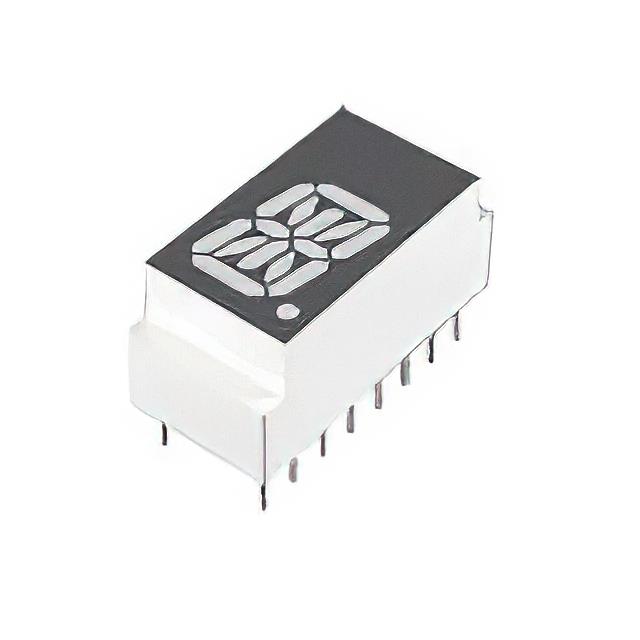

DISP 14SEG 0.39" SGL RED 16DIP

Part	Common Pin	Current - Test	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Package / Case [x]	Package / Case	Package / Case [x]	Color	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Display Type	Power Dissipation (Max) [Max]	Package / Case	Package / Case
Kingbright PSA39-21SRWA	Common Anode	20 mA	14 mcd	1.85 V	660 nm	0.3 in	16-DIP	7.62 mm	Red	10 mm	0.39 in	1	9.91 mm	9.65 mm	0.38 in	0.82 "	20.83 mm	0.39 in	14-Segment Alphanumeric	75 mw
Kingbright PSA39-21YWA	Common Anode	20 mA	2.3 mcd	2.1 V	590 nm	0.3 in	16-DIP	7.62 mm	Yellow	10 mm	0.39 in	1	9.91 mm	9.65 mm	0.38 in	0.82 "	20.83 mm	0.39 in	14-Segment Alphanumeric	75 mw
Kingbright PSA39-21GWA	Common Anode	20 mA	4.4 mcd	2.2 V	565 nm	0.3 in	16-DIP	7.62 mm	Green	10 mm	0.39 in	1	9.91 mm	9.65 mm	0.38 in	0.82 "	20.83 mm	0.39 in	14-Segment Alphanumeric	62.5 mW
Kingbright PSA39-21EWA	Common Anode	20 mA	3.7 mcd	2 V	627 nm	0.3 in	16-DIP	7.62 mm	Red	10 mm	0.39 in	1	9.91 mm	9.65 mm	0.38 in	0.82 "	20.83 mm	0.39 in	14-Segment Alphanumeric	75 mw
Kingbright PSA39-21SURKWA	Common Anode	10 mA	36 mcd	1.85 V	645 nm		16-DIP		Red	9.91 mm	0.39 in	1	9.91 mm	9.65 mm	0.38 in	0.82 "	20.83 mm	0.39 in	14-Segment Alphanumeric	75 mw	0.295 "	7.5 mm
