NPPC311 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

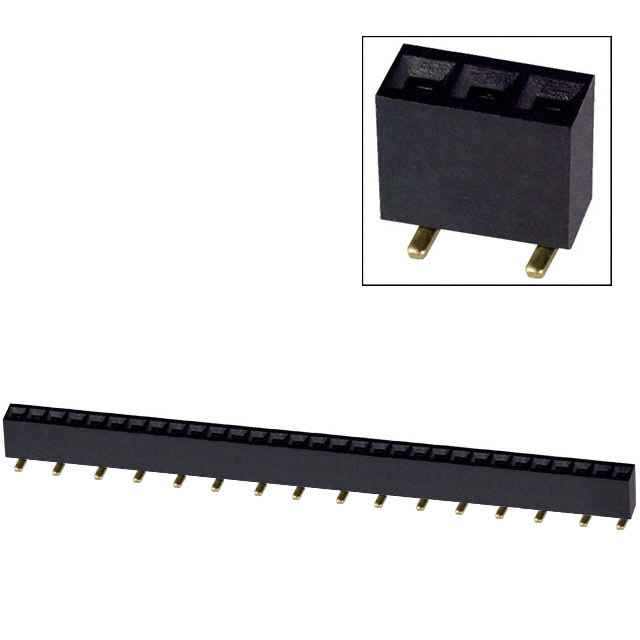

CONN HDR 31POS 0.1 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Number of Rows | Voltage Rating | Mounting Type | Contact Finish - Mating | Number of Positions [custom] | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Color | Insulation Height | Insulation Height | Fastening Type | Material Flammability Rating | Connector Type | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Positions Loaded | Termination | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | 1 | 250 V | Surface Mount | Gold | 31 | 0.1 " | 2.54 mm | Female Socket | Black | 0.28 in | 7.1 mm | Push-Pull | UL94 V-0 | Header Top or Bottom Entry | Flash | 3 A | All | Solder | Gold | -40 C | 105 ░C | ||
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | 1 | 250 V | Right Angle Through Hole | Gold | 31 | 0.1 " | 2.54 mm | Female Socket | Black | 0.1 in | 2.54 mm | Push-Pull | UL94 V-0 | Header | Flash | 3 A | All | Solder | Gold | -40 C | 105 ░C | 0.124 in | 3.15 mm |
