93689 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Insulation Material	Connector Type	Insulation Color	Shrouding	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Fastening Type	Number of Positions	Mounting Type	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating
Amphenol ICC (FCI) 93689-106-10LF	1 çm	39.4 çin	Tin	0.1 in	2.54 mm	12.9 mm	0.508 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C	6.8 mm	0.268 in	Phosphor Bronze	1	30 Áin	0.76 Ám	3.6 mm	0.142 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull	10	Through Hole	3 A

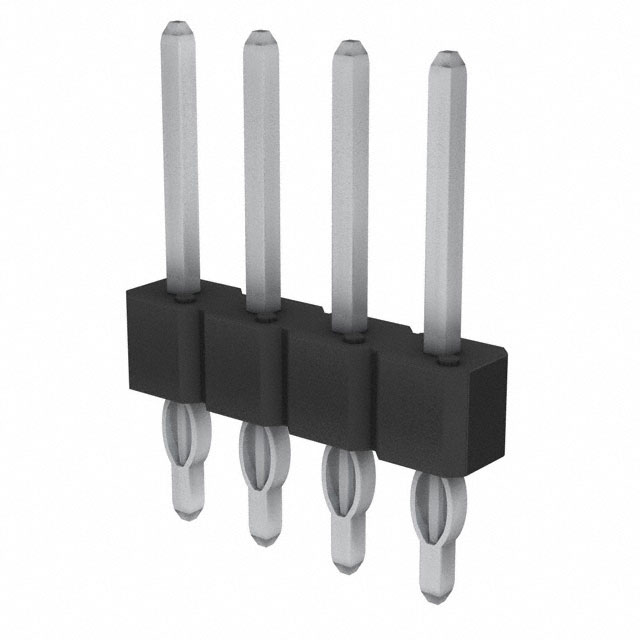

Amphenol ICC (FCI) 93689-406-04LF				0.1 in	2.54 mm	12.9 mm	0.508 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C	6.8 mm	0.268 in	Phosphor Bronze	1	120 µin	3.05 Ám	3.6 mm	0.142 in	Square	All	0.1 in	2.54 mm		Male Pin	Push-Pull	4	Through Hole	3 A

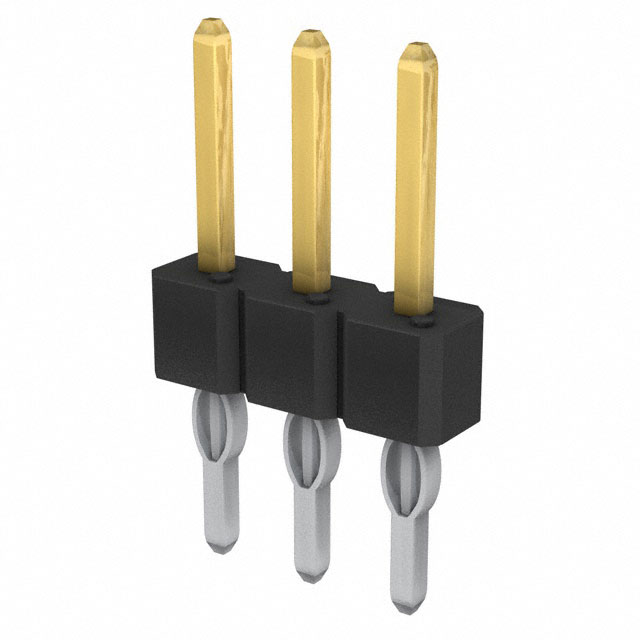

Amphenol ICC (FCI) 93689-103-03	1 çm	39.4 çin	Tin	0.1 in	2.54 mm	12.83 mm	0.505 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C			Phosphor Bronze	1	30 Áin	0.76 Ám	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull		Through Hole	3 A	0.224 in	5.7 mm

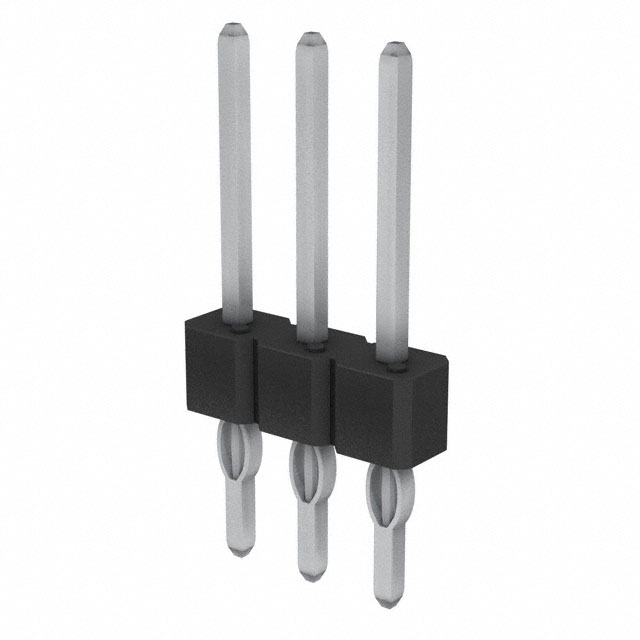

Amphenol ICC (FCI) 93689-405-03LF				0.1 in	2.54 mm	15.44 mm	0.608 "	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C	0.327 in		Phosphor Bronze	1	120 µin	3.05 Ám	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm		Male Pin	Push-Pull		Through Hole	3 A			8.3 mm
Amphenol ICC (FCI) 93689-403-10LF				0.1 in	2.54 mm	12.83 mm	0.505 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C			Phosphor Bronze	1	120 µin	3.05 Ám	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm		Male Pin	Push-Pull	10	Through Hole	3 A	0.224 in	5.7 mm
Amphenol ICC (FCI) 93689-103-13LF	1 çm	39.4 çin	Tin	0.1 in	2.54 mm	12.83 mm	0.505 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C			Phosphor Bronze	1	30 Áin	0.76 Ám	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull	13	Through Hole	3 A	0.224 in	5.7 mm
Amphenol ICC (FCI) 93689-203-36				0.1 in	2.54 mm	12.83 mm	0.505 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0					Phosphor Bronze	1	50 µin	1.27 µm	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull	36	Through Hole		0.224 in	5.7 mm
Amphenol ICC (FCI) 93689-102-06LF	1 çm	39.4 çin	Tin	0.1 in	2.54 mm	17.4 mm	0.685 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C	10.13 mm	0.399 in	Phosphor Bronze	1	30 Áin	0.76 Ám	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull	6	Through Hole	3 A
Amphenol ICC (FCI) 93689-103-04LF	1 çm	39.4 çin	Tin	0.1 in	2.54 mm	12.83 mm	0.505 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C			Phosphor Bronze	1	30 Áin	0.76 Ám	4.5 mm	0.177 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull	4	Through Hole	3 A	0.224 in	5.7 mm
Amphenol ICC (FCI) 93689-106-36LF	1 çm	39.4 çin	Tin	0.1 in	2.54 mm	12.9 mm	0.508 in	Thermoplastic	Breakaway Header	Black	Unshrouded	Press-Fit Solder	UL94 V-0	125 °C	-65 ░C	6.8 mm	0.268 in	Phosphor Bronze	1	30 Áin	0.76 Ám	3.6 mm	0.142 in	Square	All	0.1 in	2.54 mm	Gold GXT™	Male Pin	Push-Pull	36	Through Hole	3 A
