2390874 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog

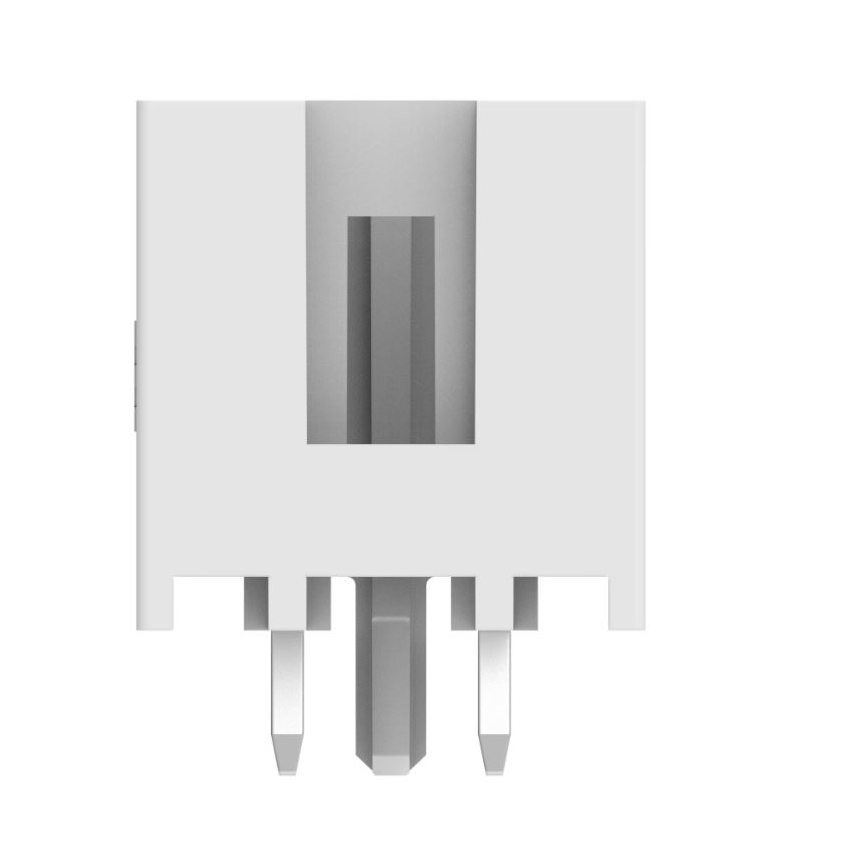

2P, RAST 5 TAB HEADER, TIN, DIN
| Part | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Shape | Contact Type | Material Flammability Rating | Mounting Type | Number of Positions Loaded | Fastening Type | Insulation Color | Insulation Material | Contact Material | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Rows | Current Rating (Amps) | Connector Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | 78.7 µin | 2 µm | Solder | Rectangular | Tab | UL94 V-0 | Through Hole | All | Detent Lock | Natural | Nylon Polyamide (PA) | Copper Alloy | Tin | 3.5 mm | 0.138 in | 2 çm | 78.7 çin | Board to Cable/Wire | -40 °C | 120 °C | Shrouded - 4 Wall | 12.8 mm | 0.504 in | 5 mm | 0.197 " | 1 | 20 A | Header | Board Guide Glow Wire Compliant | 250 VAC |
