C3AAG-5 Series

Catalog

IDC CABLE - CSC50G/AE50G/CSC50G

Part	Number of Rows [custom]	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Shielding	Contact Finish	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Color	Length [x]	Length [x]
CW Industries C3AAG-5036G	2	50	0.05 in	1.27 mm	IDC	Unshielded	Gold	Socket to Socket	0.1 in	2.54 mm	0.25 Ám	10 Áin	91.44 cm	3 ft
CW Industries C3AAG-5006G	2	50	0.05 in	1.27 mm	IDC	Unshielded	Gold	Socket to Socket	0.1 in	2.54 mm	0.25 Ám	10 Áin	152.4 mm	0.5 '	6 "

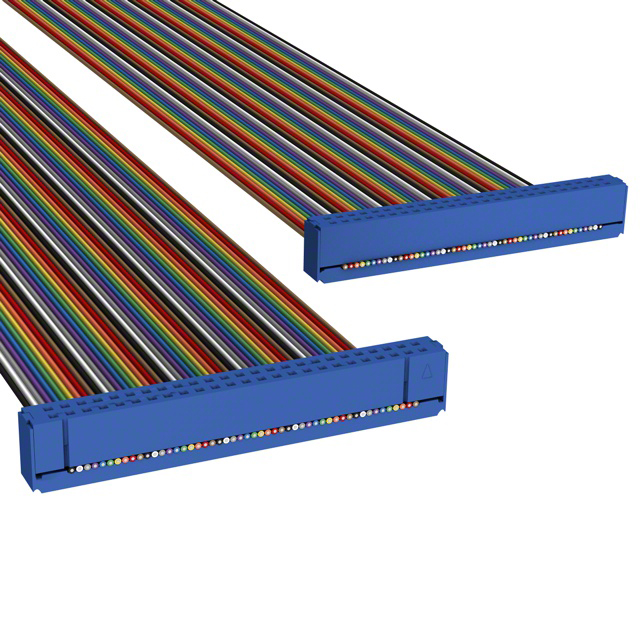

CW Industries C3AAG-5018M	2	50	0.05 in	1.27 mm	IDC	Unshielded	Gold	Socket to Socket	0.1 in	2.54 mm	0.25 Ám	10 Áin				Multiple Ribbon	457.2 mm	1.5 ft
CW Industries C3AAG-5006M	2	50	0.05 in	1.27 mm	IDC	Unshielded	Gold	Socket to Socket	0.1 in	2.54 mm	0.25 Ám	10 Áin	152.4 mm	0.5 '	6 "	Multiple Ribbon
CW Industries C3AAG-5036M	2	50	0.05 in	1.27 mm	IDC	Unshielded	Gold	Socket to Socket	0.1 in	2.54 mm	0.25 Ám	10 Áin	91.44 cm	3 ft		Multiple Ribbon

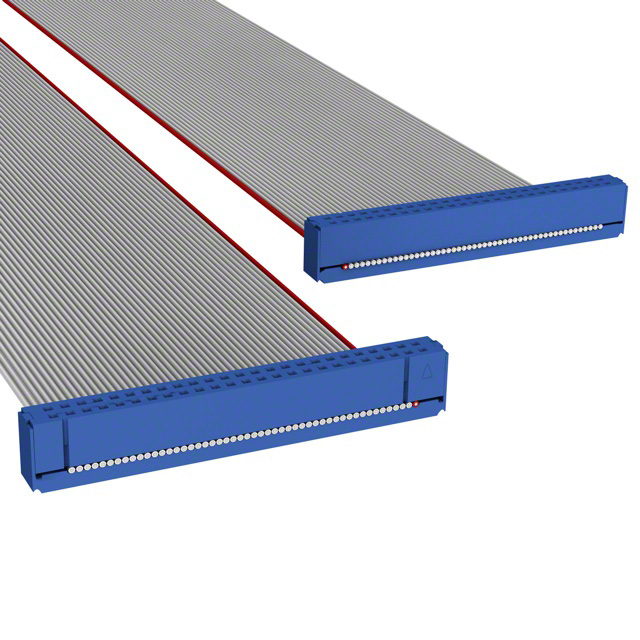

CW Industries C3AAG-5018G	2	50	0.05 in	1.27 mm	IDC	Unshielded	Gold	Socket to Socket	0.1 in	2.54 mm	0.25 Ám	10 Áin					457.2 mm	1.5 ft
