MPVZ4006 Series

Catalog

SENSOR 0.87PSIG 4.6V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Max]	Output [Min]	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Applications	Features	Package / Case	Output Type	Operating Pressure	Operating Pressure	Mounting Type	Port Style	Port Size [x]	Port Size [x]	Port Size
Freescale Semiconductor - NXP MPVZ4006G6T1	4.75 V	5.25 V	10.88 PSI	75 kPa	4.6 V	0.3 V	Vented Gauge	10 °C	60 °C	SMD (SMT) Tab	Board Mount	Temperature Compensated	8-SMD Module	Analog Voltage	6 kPa	0.87 PSI	Surface Mount	No Port

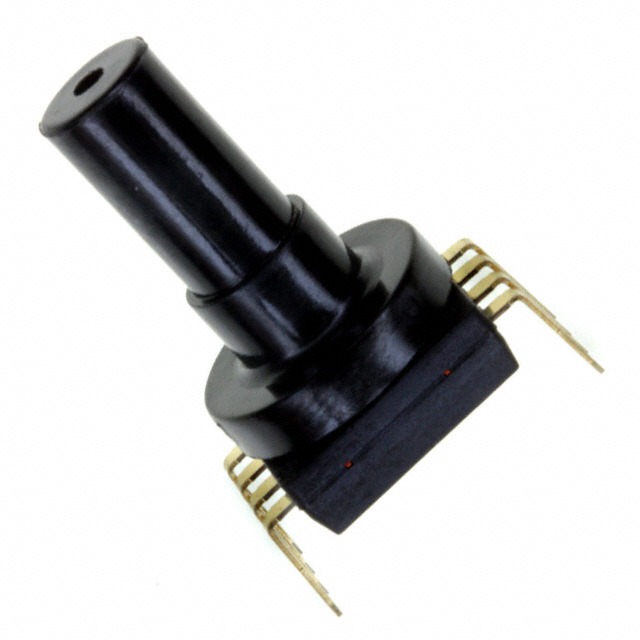

Freescale Semiconductor - NXP MPVZ4006GW7U	4.75 V	5.25 V	10.88 PSI	75 kPa	4.6 V	0.3 V	Vented Gauge	10 °C	60 °C	PC Pin	Board Mount	Temperature Compensated	8-DIP Module	Analog Voltage	6 kPa	0.87 PSI	Through Hole	Barbless	0.22 "	5.59 mm	Male Tube
