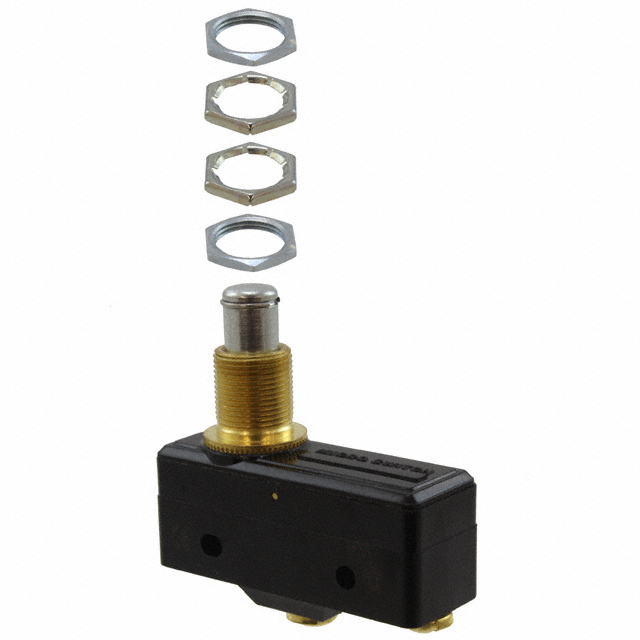

BZ-2RQ Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Circuit	Differential Travel	Differential Travel	Actuator Type	Termination Style	Pretravel	Pretravel	Overtravel	Overtravel	Operating Position	Operating Position	Features	Operating Force [Max]	Operating Force [Min]	Voltage Rating - DC	Switch Function	Mechanical Life	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Operating Force	Ingress Protection
Honeywell Sensing and Productivity Solutions BZ-2RQ1-D682	85 °C	-55 °C	113 gf	SPDT	0.002 in	0.05 mm	Overtravel Plunger	Quick Connect - 0.250" (6.3mm)	0.015 in	0.4 mm	5.6 mm	0.219 in	0.859 in	21.8 mm	Steel Plunger	368 gf	255 gf	125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V

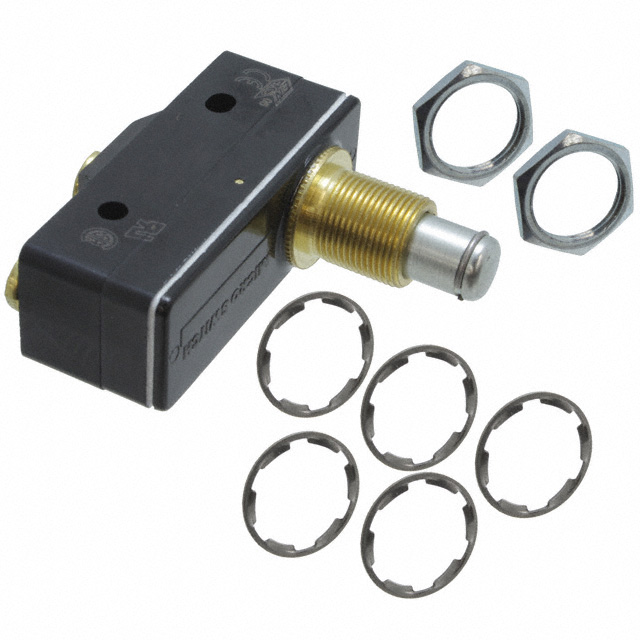

Honeywell Sensing and Productivity Solutions BZ-2RQ233-A2	85 °C	-55 °C	113 gf	SPDT	0.002 in	0.05 mm	Overtravel Plunger	Screw Terminal	0.015 in	0.4 mm	5.6 mm	0.219 in	0.859 in	21.8 mm	Steel Plunger	368 gf	255 gf	125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V

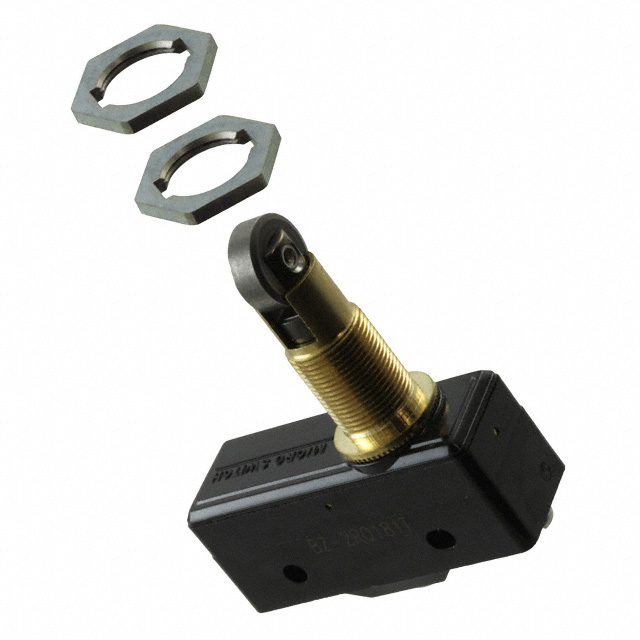

Honeywell Sensing and Productivity Solutions BZ-2RQ181T	85 °C	-55 °C	113 gf	SPDT	0.002 in	0.05 mm	Roller Plunger	Screw Terminal	0.015 in	0.4 mm	3.6 mm	0.141 in	1.313 in	33.4 mm		368 gf	255 gf	125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V

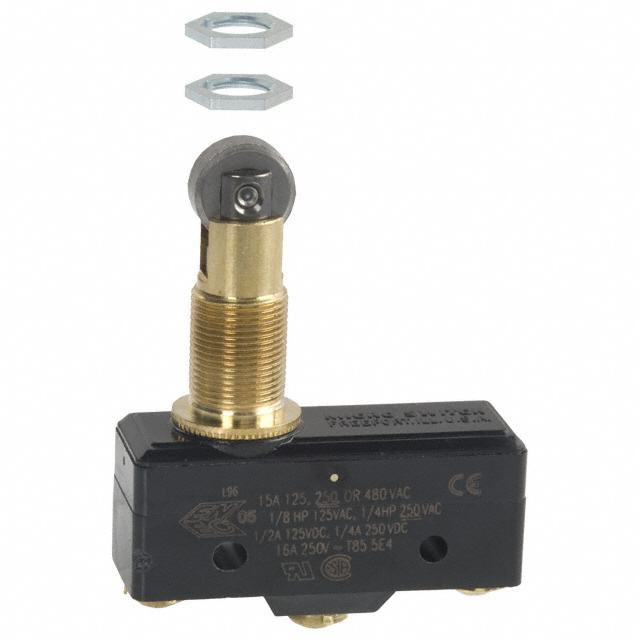

Honeywell Sensing and Productivity Solutions BZ-2RQ18-A2	85 °C	-55 °C	113 gf	SPDT	0.002 in	0.05 mm	Roller Plunger	Screw Terminal	0.015 in	0.4 mm	3.6 mm	0.141 in	1.313 in	33.4 mm		368 gf	255 gf	125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V
Honeywell Sensing and Productivity Solutions BZ-2RQ13-A2	85 °C	-55 °C	113 gf	SPDT	0.002 in	0.05 mm	Overtravel Plunger	Screw Terminal	0.015 in	0.4 mm	5.6 mm	0.219 in	0.859 in	21.8 mm	Steel Plunger	368 gf	255 gf	125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V
Honeywell Sensing and Productivity Solutions BZ-2RQ1	85 °C	-55 °C	113 gf	SPDT	0.002 in	0.05 mm	Overtravel Plunger	Solder Lug	0.015 in	0.4 mm	5.6 mm	0.219 in	0.859 in	21.8 mm	Steel Plunger	368 gf	255 gf	125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V

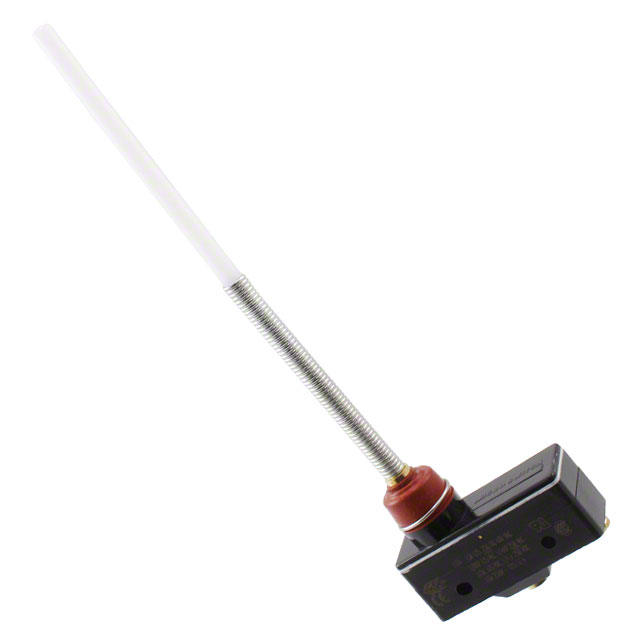

Honeywell Sensing and Productivity Solutions BZ-2RQW1-A2	85 °C	-55 °C		SPDT			Rod Spring	Screw Terminal	0.5 in	12.7 mm								125 VDC	On-Mom	20000000 Cycles	15 A 500 mA	125 V	Chassis Mount	71 gf	Splash Proof
