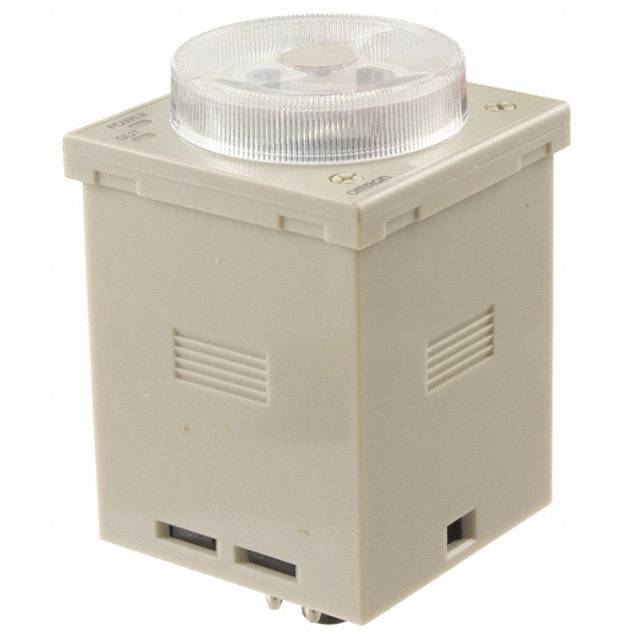

H3CR-A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY TIME DELAY 600HR 5A 250V
| Part | Circuit | Delay Time [Max] | Delay Time [Min] | Function | Relay Type | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Termination Style | Contact Rating @ Voltage | Timing Adjustment Method | Timing Initiate Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 600 Hrs | 0.1 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 48 V 48 VAC/DC | 12 V 24 VAC | Plug In 11 Pin (Octal) | 5 A 250 VAC | Hand Dial | |
Omron Electronics Inc-EMC Div | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Solid State Relay | Socketable | 48 V 48 VAC/DC | 12 V 24 VAC | Plug In 11 Pin (Octal) | Hand Dial | |||
 Omron Electronics Inc-EMC Div | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Solid State Relay | Socketable | 48 V 48 VAC/DC | 12 V 24 VAC | Plug In 8 Pin (Octal) | Hand Dial | |||
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 48 V 48 VAC/DC | 12 V 24 VAC | Plug In 11 Pin (Octal) | 5 A 250 VAC | Hand Dial | |
Omron Electronics Inc-EMC Div | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 125 VDC 240 VAC | 100 VAC 100 VDC | Plug In 8 Pin (Octal) | 5 A 250 VAC | Hand Dial | ||
 Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 125 VDC 240 VAC | 100 VAC 100 VDC | Plug In 11 Pin (Octal) | 5 A 250 VAC | Hand Dial | |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 125 VDC 240 VAC | 100 VAC 100 VDC | Plug In 11 Pin (Octal) | 5 A 250 VAC | Hand Dial | |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 600 Hrs | 0.1 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 125 VDC 240 VAC | 100 VAC 100 VDC | Plug In 8 Pin (Octal) | 5 A 250 VAC | Hand Dial | |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 125 VDC 240 VAC | 100 VAC 100 VDC | Plug In 11 Pin (Octal) | 5 A 250 VAC | Hand Dial | Input Voltage |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | 300 Hrs | 0.05 Sec | Programmable (Multi-Function) | Mechanical Relay | Socketable | 48 V 48 VAC/DC | 12 V 24 VAC | Plug In 11 Pin (Octal) | 5 A 250 VAC | Hand Dial |
