391-096 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Flange Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Mounting Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Read Out	Card Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Gender	Number of Positions	Termination	Number of Rows [custom]	Contact Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-096-520-207	Polyester Thermoplastic	2	Black	Flush Mount M3 Threaded Insert Top Opening	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows
EDAC Inc. 391-096-556-201	Polyester Thermoplastic	2	Black		Gold	-40 C	105 ░C	48	Board Edge Straddle Mount	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows	Card Extender
EDAC Inc. 391-096-556-204	Polyester Thermoplastic	2	Black	Flush Mount Top Opening Unthreaded	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows	Card Extender	0.156 "	3.96 mm
EDAC Inc. 391-096-520-201	Polyester Thermoplastic	2	Black		Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows
EDAC Inc. 391-096-521-202	Polyester Thermoplastic	2	Black	Flush Mount Top Opening Unthreaded	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows		0.128 "	3.25 mm

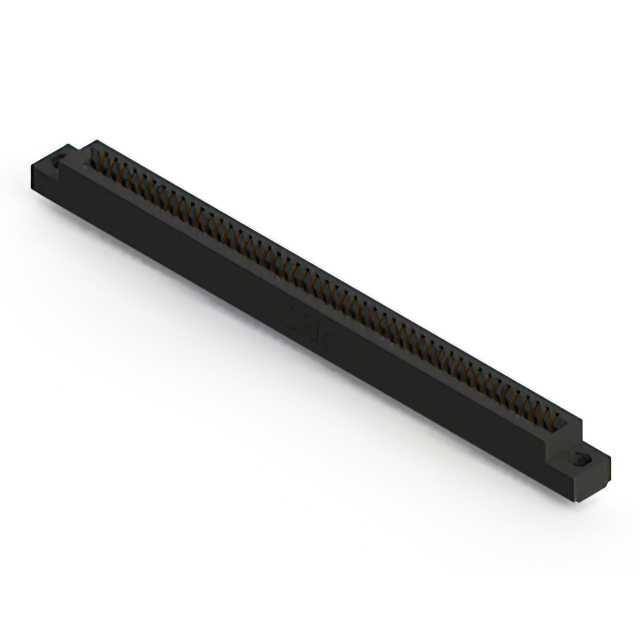

EDAC Inc. 391-096-520-204	Polyester Thermoplastic	2	Black	Flush Mount Top Opening Unthreaded	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows		0.156 "	3.96 mm
EDAC Inc. 391-096-521-207	Polyester Thermoplastic	2	Black	Flush Mount M3 Threaded Insert Top Opening	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows
EDAC Inc. 391-096-560-207	Polyester Thermoplastic	2	Black	Flush Mount M3 Threaded Insert Top Opening	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows	Card Extender
EDAC Inc. 391-096-555-203	Polyester Thermoplastic	2	Black	Floating Bobbin Flush Mount	Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder Eyelet(s)	2	Semi Bellows	Card Extender	0.116 "	2.95 mm
EDAC Inc. 391-096-522-201	Polyester Thermoplastic	2	Black		Gold	-40 C	105 ░C	48	Through Hole	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	0.25 Ám	10 Áin	0.1 "	2.54 mm	Female	96	Solder	2	Semi Bellows
