299-99 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

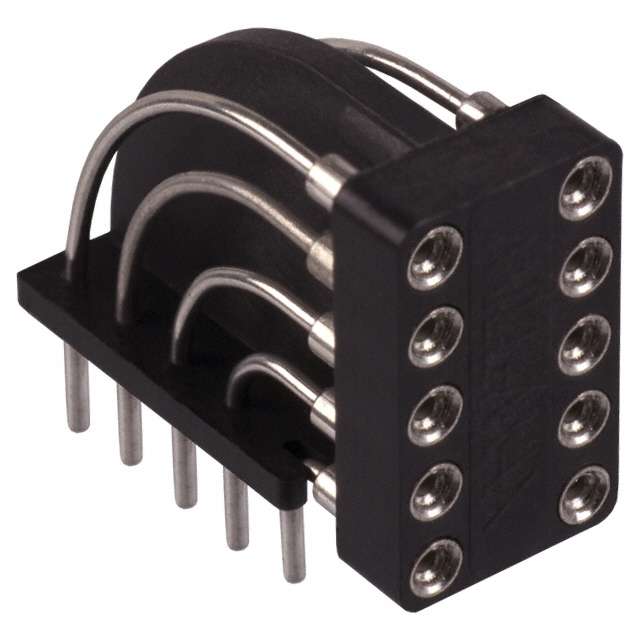

CONN IC DIP SOCKET 10POS TINLEAD
| Part | Termination Post Length [x] | Termination Post Length [x] | Current Rating (Amps) | Contact Finish - Post | Termination | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Type | Type | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Housing Material | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Material - Mating | Contact Material - Post | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3.2 mm | 0.126 in | 3 A | Tin-Lead | Solder | 5 | 10 | 2 | -55 C | 125 °C | 0.1 in | 2.54 mm | 100 çin | 2.54 çm | DIP | 5.08 mm | Right Angle Through Hole Vertical | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Tin-Lead | 0.1 " | 2.54 mm | Beryllium Copper | Brass Alloy | Closed Frame |
