EEF-SE Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

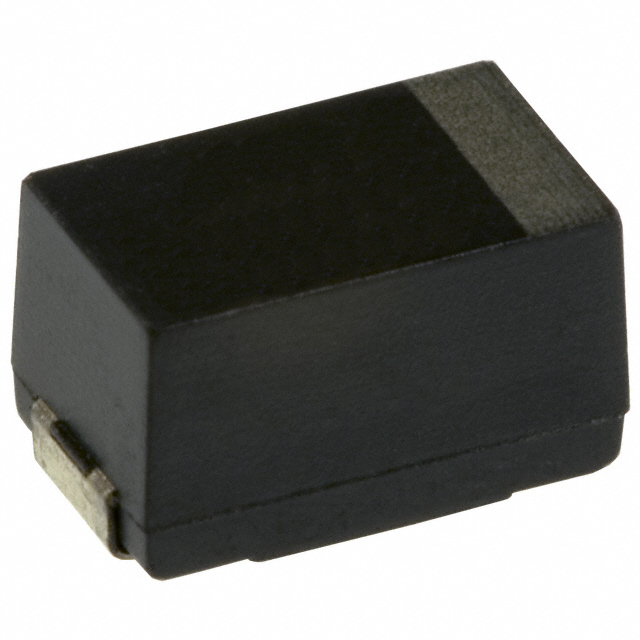

CAP ALUM POLY 220UF 20% 4V SMD
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Tolerance | Type | Mounting Type | Package / Case | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Height - Seated (Max) [Max] | Height - Seated (Max) | Voltage - Rated | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 5 mOhm | 1000 Hrs | 20 % | Polymer | Surface Mount | 7343 Metric | 2917 | -40 °C | 105 ░C | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.165 in | 4.2 mm | 4 V | 220 µF |
Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 5 mOhm | 1000 Hrs | 20 % | Polymer | Surface Mount | 7343 Metric | 2917 | -40 °C | 105 ░C | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.165 in | 4.2 mm | 2 VDC | 390 µF |
Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Polymer | Surface Mount | 7343 Metric | 2917 | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 6.3 V | 180 çF | |||||||
Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 5 mOhm | 1000 Hrs | 20 % | Polymer | Surface Mount | 7343 Metric | 2917 | -40 °C | 105 ░C | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.165 in | 4.2 mm | 2.5 V | 330 µF |
Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 5 mOhm | 1000 Hrs | 20 % | Polymer | Surface Mount | 7343 Metric | 2917 | -40 °C | 105 ░C | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.165 in | 4.2 mm | 2 VDC | 390 µF |
Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Polymer | Surface Mount | 7343 Metric | 2917 | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 2 VDC | 560 µF | |||||||
Panasonic Industrial Automation Sales | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 5 mOhm | 1000 Hrs | 20 % | Polymer | Surface Mount | 7343 Metric | 2917 | -40 °C | 105 ░C | General Purpose | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 0.165 in | 4.2 mm | 6.3 V | 180 çF |
