438-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DL FMALE 35P 0.200 2PC

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Card Thickness	Card Thickness	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows [custom]	Card Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Note	Material Flammability Rating

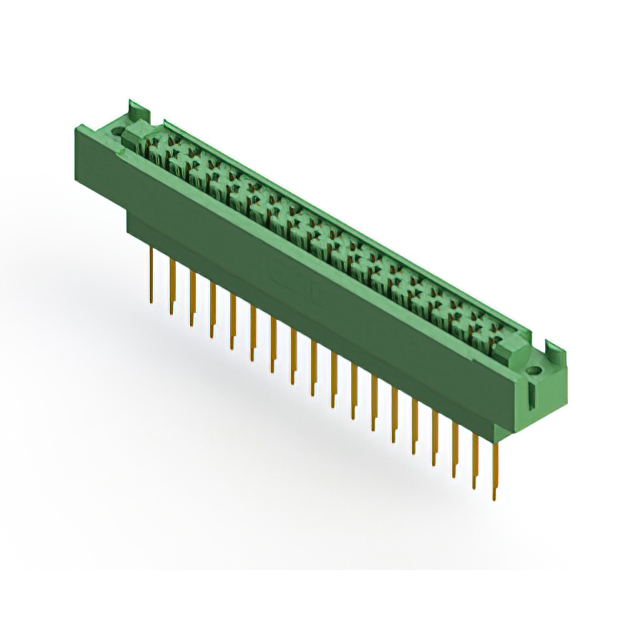

EDAC Inc. 438-035-541-122	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	5.08 mm	0.2 in	3.25 mm	0.128 "	Wire Wrap	2.36 mm	0.093 "	35	0.25 Ám	10 Áin	Female	2	Non Specified - Dual Edge	Copper Alloy	-65 ░C	125 °C	Gold	Green
EDAC Inc. 438-035-540-112	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	5.08 mm	0.2 in	3.25 mm	0.128 "	Wire Wrap	1.57 mm	0.062 in	35	0.25 Ám	10 Áin	Female	2	Non Specified - Dual Edge	Copper Alloy	-65 ░C	125 °C	Gold	Green
EDAC Inc. 438-035-540-122	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	5.08 mm	0.2 in	3.25 mm	0.128 "	Wire Wrap	2.36 mm	0.093 "	35	0.25 Ám	10 Áin	Female	2	Non Specified - Dual Edge	Copper Alloy	-65 ░C	125 °C	Gold	Green
EDAC Inc. 438-035-500-122	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	5.08 mm	0.2 in	3.25 mm	0.128 "	Solder Eyelet(s)	2.36 mm	0.093 "	35	0.25 Ám	10 Áin	Female	2	Non Specified - Dual Edge	Copper Alloy	-65 ░C	125 °C	Gold	Green

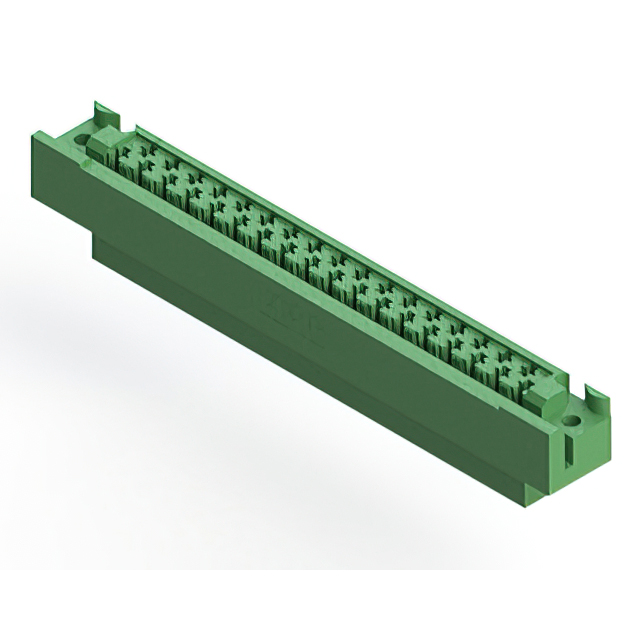

EDAC Inc. 438-035-000-122	Diallyl Phthalate (DAP)			5.08 mm	0.2 in	3.25 mm	0.128 "		2.36 mm	0.093 "	35					Non Specified - Dual Edge		-65 ░C	125 °C		Green	Contacts Not Included	UL94 V-0
EDAC Inc. 438-035-500-112	Diallyl Phthalate (DAP)	2	Panel Mount Through Hole	5.08 mm	0.2 in	3.25 mm	0.128 "	Solder Eyelet(s)	1.57 mm	0.062 in	35	0.25 Ám	10 Áin	Female	2	Non Specified - Dual Edge	Copper Alloy	-65 ░C	125 °C	Gold	Green
