S22AMTSR Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

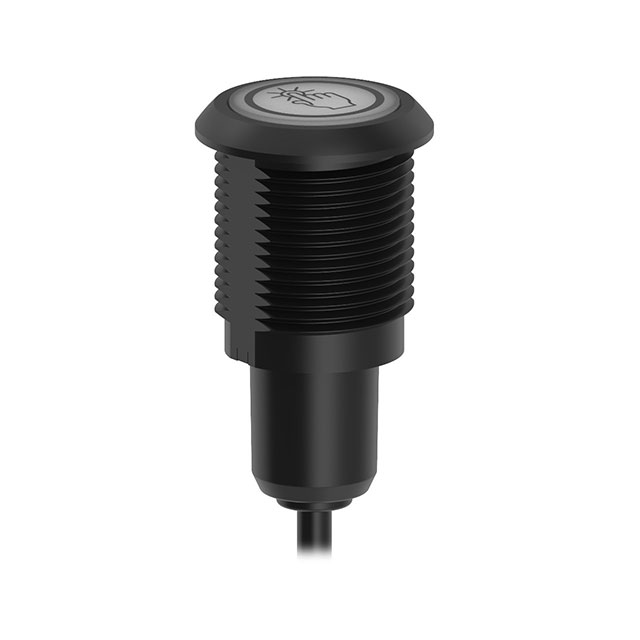

S22 PRO TOUCH SERIES: 7-COLOR RGB TOUCH SENSOR
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Circuit | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Approval Agency | Panel Cutout Dimensions [diameter] | Switch Function | Illumination Type, Color | Actuator Type | Ingress Protection | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 30 VDC | 10 VDC | SPST-NO | 300 ms | -40 C | 50 °C | Panel Mount Front | CE cULus | 22 mm | Off-Mom | Blue Green LED Red | Button Flush Round | IP67/IP69K | Cable Leads |
 BANNER ENGINEERING | 30 VDC | 10 VDC | SPST-NO | 300 ms | -40 C | 50 °C | Panel Mount Front | CE cULus | 22 mm | Off-Mom | Blue Green LED Red | Button Flush Round | IP67/IP69K | Cable with Connector (M12) |
