MSTBC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 6 POS 5.08MM PITCH PLUG 20-14 AWG CRIMP

Part	Positions Per Level	Current - IEC	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Features	Number of Positions	Number of Levels	Mounting Type	Pitch	Pitch	Voltage - IEC	Plug Wire Entry	Voltage - UL	Material Flammability Rating	Insulation Height	Insulation Height	Housing Material	Positions Per Level [custom]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Phoenix Contact 1945782	6	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Black	10 A	14 AWG	20 AWG	Mating Flange	6	1	Free Hanging (In-Line)	5.08 mm	0.2 in	320 V	180 °	300 V
Phoenix Contact 1809420	17	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG	Mounting Flange		1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.7 mm	0.421 "	Polyamide (PA) Nylon
Phoenix Contact 1809323		12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG	Mounting Flange	7	1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.7 mm	0.421 "	Polyamide (PA) Nylon	7

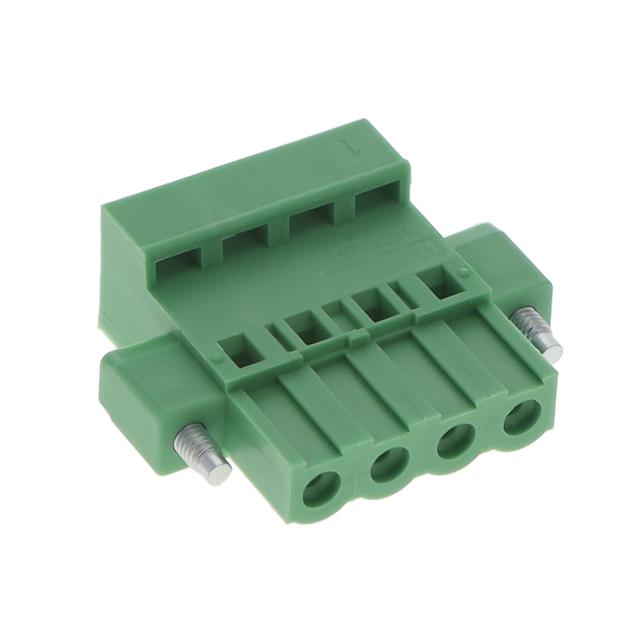

Phoenix Contact 1809750	4	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG	Mating Flange	4	1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.49 mm	0.413 in	Polyamide (PA) Nylon		2.5 mm˛	0.5 mm˛
Phoenix Contact 1809446	19	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG	Mounting Flange	19	1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.7 mm	0.421 "	Polyamide (PA) Nylon
Phoenix Contact 1809637	15	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG		15	1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.49 mm	0.413 in	Polyamide (PA) Nylon		2.5 mm˛	0.5 mm˛

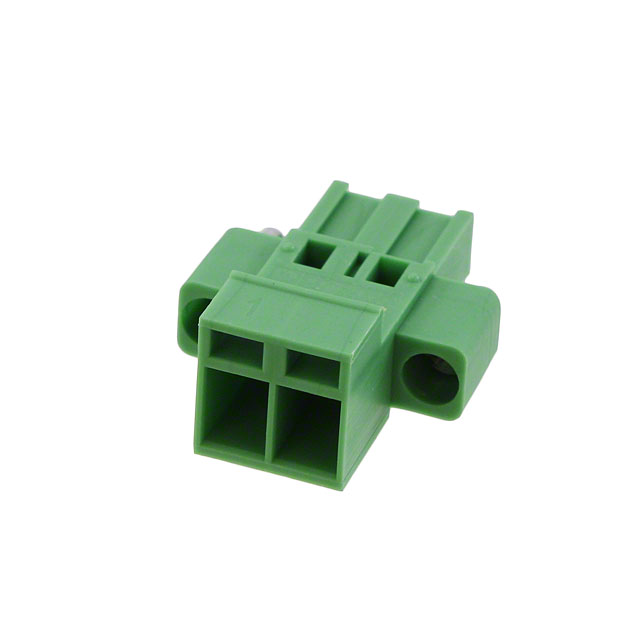

Phoenix Contact 1809734	2	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG	Mating Flange	2	1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.49 mm	0.413 in	Polyamide (PA) Nylon
Phoenix Contact 1808890	10	12 A	Plug Housing for Female Sockets	2.5 mm²	0.2 mm²	Green	10 A	14 AWG	20 AWG		10	1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V
Phoenix Contact 1971785	3		Plug Housing for Female Sockets			Black				Mating Flange		1	Free Hanging (In-Line)	5.08 mm	0.2 in		180 °
Phoenix Contact 1809886	17	12 A	Plug Housing for Female Sockets	2.5 mm²	0.5 mm²	Green	10 A	14 AWG	20 AWG	Mating Flange		1	Free Hanging (In-Line)	5.08 mm	0.2 in	630 V	180 °	300 V	UL94 V-0	10.49 mm	0.413 in	Polyamide (PA) Nylon		2.5 mm˛	0.5 mm˛
