3322 Series

Catalog

TERMINAL,SOLIS R 12-10 3/8

Part	Thickness	Thickness	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall	Contact Finish	Termination	Terminal Type	Contact Material	Insulation	Features	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Center Contact Plating	Center Gender	Convert To (Adapter End)	Style	Adapter Type	Center Contact Material	Mounting Feature	Convert From (Adapter End)	Fastening Type	Body Finish	Includes	Adapter Series	Dielectric Material	Conversion Type	Body Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Width - Outer Edges	Width - Outer Edges	Length - Termination [x]	Length - Termination [x]	Stud/Tab Size	Length - Overall [x]

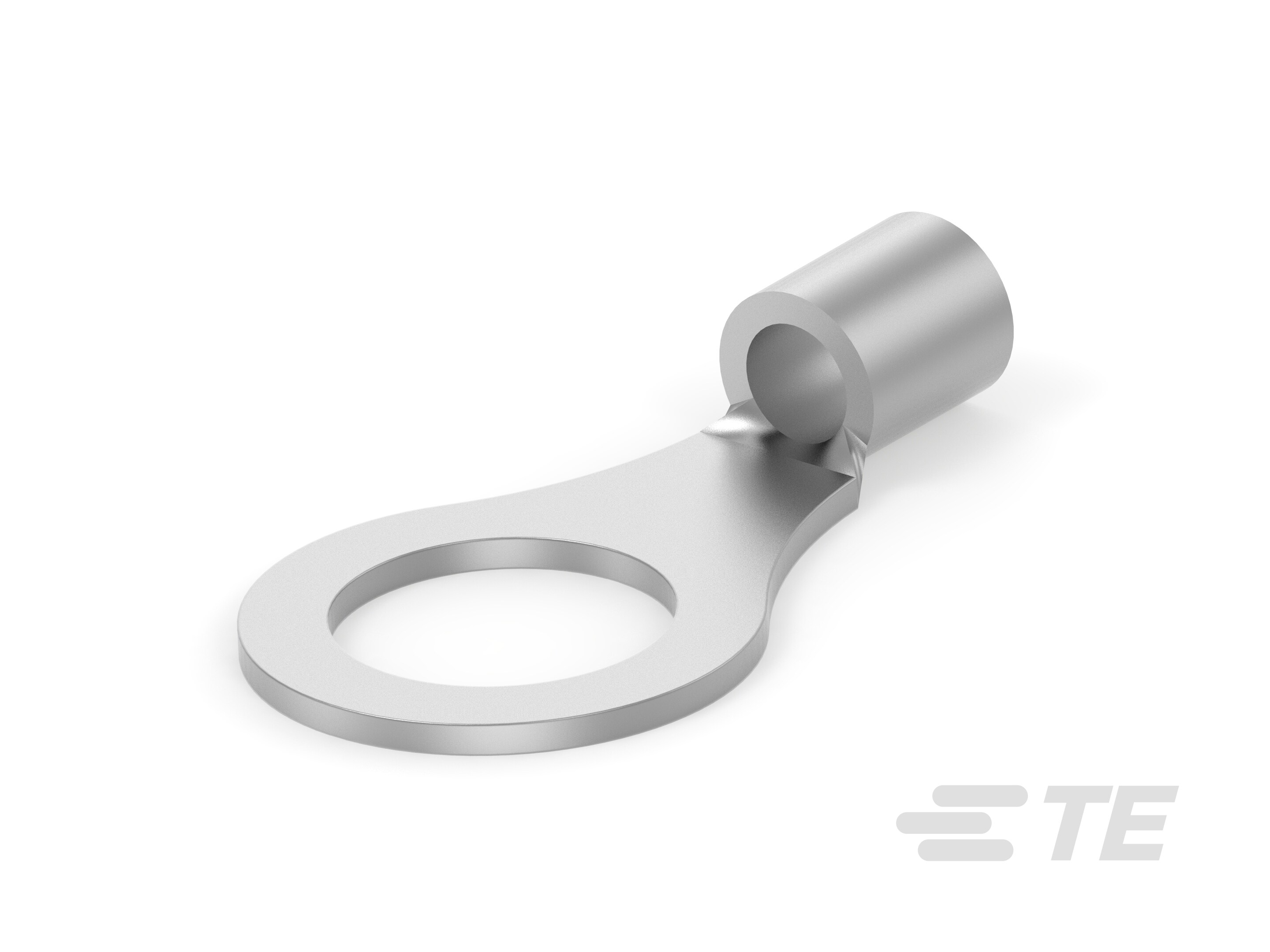

TE Connectivity Raychem Cable Protection 33220	0.99 mm	0.039 in	Free Hanging (In-Line)	0.593 in	15.06 mm	1.098 "	27.89 mm	Tin	Crimp	Circular	Copper	Non-Insulated	Brazed Seam Serrated Termination	3/8 Stud	12 AWG	10 AWG

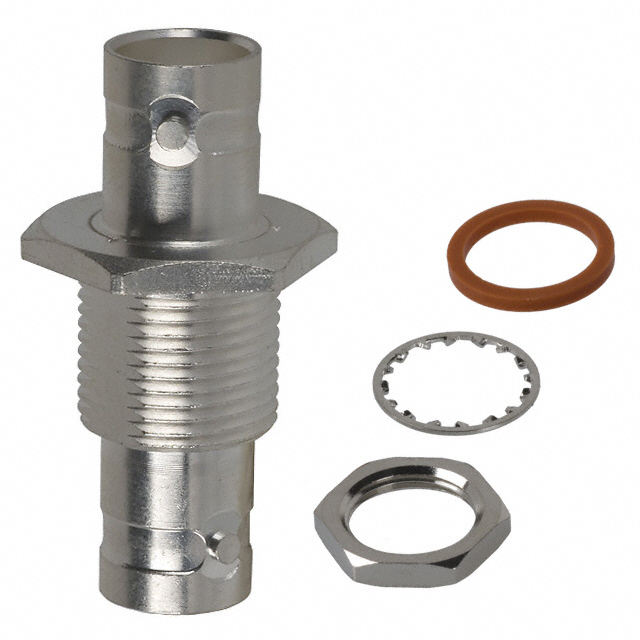

TE Connectivity Raychem Cable Protection 332215																	Silver	Female to Female	BNC Twinaxial Jack Female Socket	Straight	Jack to Jack	Beryllium Copper	Bulkhead	BNC Twinaxial Jack Female Socket	Bayonet Lock	Silver	1 Connector 1 Gasket 1 Lockwasher 1 Nut	BNC Twinaxial to BNC Twinaxial	Polytetrafluoroethylene (PTFE)	Same Series	Brass
TE Connectivity Raychem Cable Protection 33221			Free Hanging (In-Line)			0.623 "		Tin	Crimp	Standard	Copper	Non-Insulated	Serrated Termination																			3.68 mm	0.145 in	7.92 mm	0.312 in	0.244 in	6.2 mm	0.181 in	4.6 mm	6 Stud	15.82 mm
