F92ERQ Series

Catalog

OS2 2F 1.6MM PC OFNR PUSHPULL LC/PUSHPUL

Part	1st Connector	Color - Connectors	Type	Insertion Loss	Return Loss	Cable Diameter [diameter]	Cable Diameter [diameter]	Bend Radius [radius]	Cable Type	Color - Cable	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	2nd Connector	Features	Fiber Type	Length - Overall [x]	Length - Overall [x]
Panduit Corp F92ERQ1Q1SNM039	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	128 ft	39 m
Panduit Corp F92ERQ1SNSNM025	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	SC Duplex	Riser Zipcord	9/125	82 ft	25 m
Panduit Corp F92ERQ1Q1SNM033	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	108.3 '	33 m
Panduit Corp F92ERQ1Q1SNM044	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	144.3 ft	44 m
Panduit Corp F92ERQ1Q1SNF017	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	17 ft	5.2 m
Panduit Corp F92ERQ1SNSNF013	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	SC Duplex	Riser Zipcord	9/125	13.1 '	4 m
Panduit Corp F92ERQ1Q1SNM3.5	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	11.5 ft	3.5 m
Panduit Corp F92ERQ1Q1SNM016	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	52.5 ft	16 m

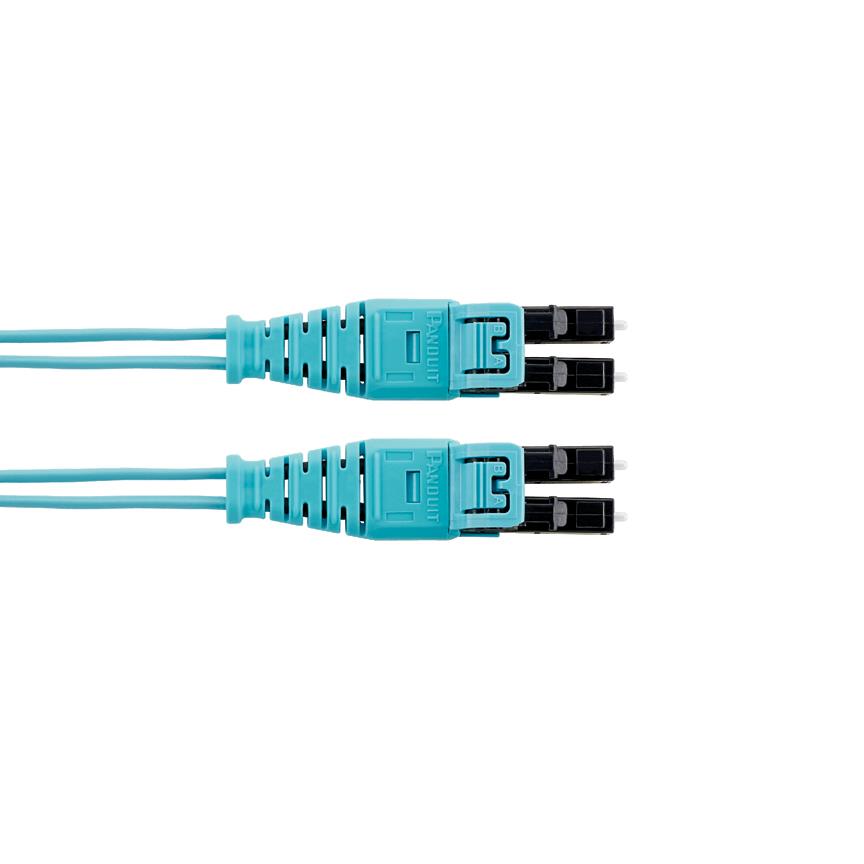

Panduit Corp F92ERQ1Q1SNM4.5	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	LC Duplex	Riser Zipcord	9/125	14.8 ft	4.5 m
Panduit Corp F92ERQ1SNSNM024	LC Duplex	Blue	Duplex OS2 Singlemode	0.35 dB 0.5 dB	55 dB	0.06 in	1.6 mm	16 mm	Twin Zip	Yellow	OFNR	-10 °C	60 °C	SC Duplex	Riser Zipcord	9/125	78.7 ft	24 m
