AYA01AA Series

Catalog

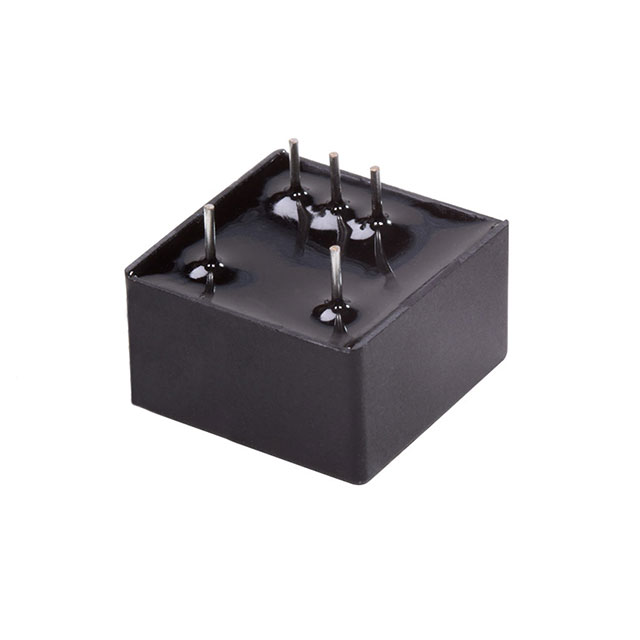

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 3 W, 2 OUTPUT, 5 V, 300 MA

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Features	Current - Output (Max) [Max]	Type	Mounting Type	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Efficiency
ARTESYN / Advanced Energy AYA01AA48-L	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	ITE (Commercial)	SCP	0.3 A	Isolated Module	Through Hole	7-DIP Module 5 Leads	2	36 V	1.5 kV	75 V	-5 V	85 °C	-40 C	5 V	3 W
ARTESYN / Advanced Energy AYA01AA24-L	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	ITE (Commercial)	SCP	0.3 A	Isolated Module	Through Hole	7-DIP Module 5 Leads	2	18 V	1.5 kV	36 V	-5 V	85 °C	-40 C	5 V	3 W	84 %
ARTESYN / Advanced Energy AYA01AA05-L	0.31 "	14 mm	14 mm	0.55 "	0.55 in	8 mm	ITE (Commercial)	SCP	0.3 A	Isolated Module	Through Hole	7-DIP Module 5 Leads	2	4.5 V	1.5 kV	10 V	-5 V	85 °C	-40 C	5 V	3 W
