19390240 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY POWER CONNECTORS 24B HP SCREWDWN HOOD TOP ENTRY, M32
| Part | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Style | Ingress Protection | Thread Size | Connector Type | Housing Color | Lock Location | Housing Material | Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

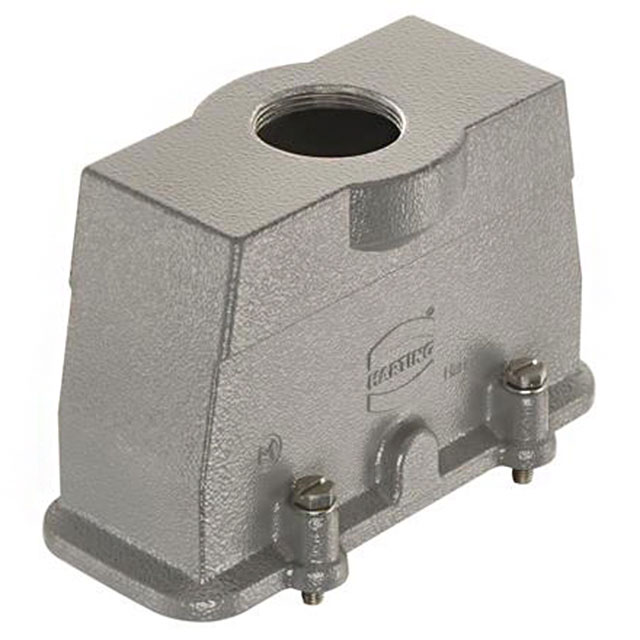

 HARTING | Powder Coated | 125 °C | -40 C | Top Entry | IP66 IP68 IP69K | M32 | Hood | Gray | Screw Locks on Hood | Aluminum Die Cast | 24 B | 133 mm | 84.5 mm | 5.236 " | 70.8 mm | 2.787 " | 3.327 " |

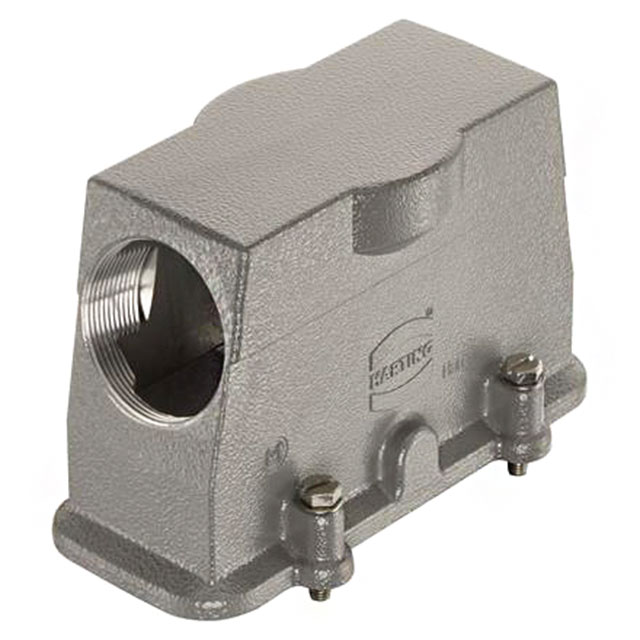

 HARTING | Powder Coated | 125 °C | -40 C | Side Entry | IP66 IP68 IP69K | M32 | Hood | Gray | Screw Locks on Hood | Aluminum Die Cast | 24 B | 133 mm | 85 mm | 5.236 " | 70.8 mm | 2.787 " | 3.346 " |

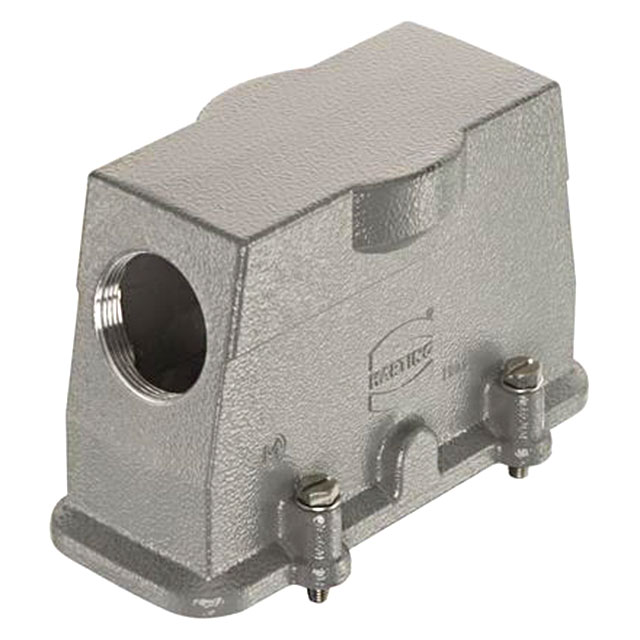

 HARTING | Powder Coated | 125 °C | -40 C | Side Entry | IP66 IP68 IP69K | Hood | Gray | Screw Locks on Hood | Aluminum Die Cast | 24 B | 133 mm | 85 mm | 5.236 " | 70.8 mm | 2.787 " | 3.346 " |
