RJE03188 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

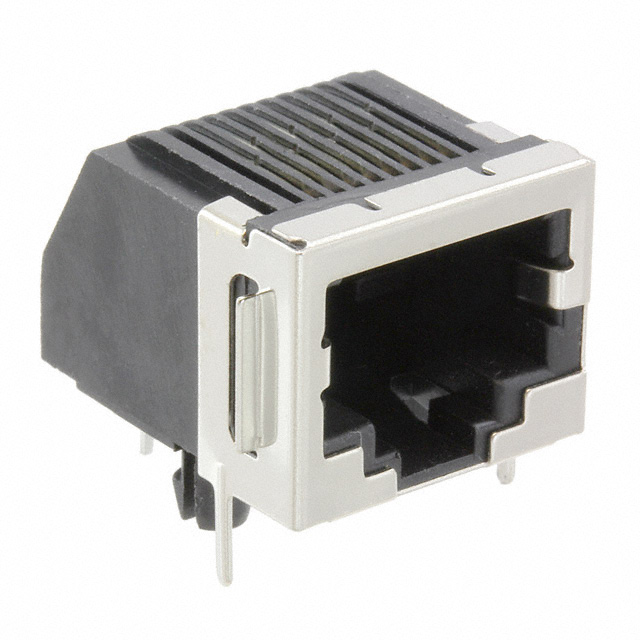

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Tab Direction | Features | Number of Rows | Shielding | Termination | Connector Type | Contact Material | Orientation | Mounting Type | Number of Positions/Contacts | LED Color | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic | 30 Áin | 0.76 Ám | 85 °C | -40 C | 1 | Down | Board Lock Panel Stops | 1 | Shielded | Solder | Jack | Phosphor Bronze | 90 ° | Through Hole | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Gold |

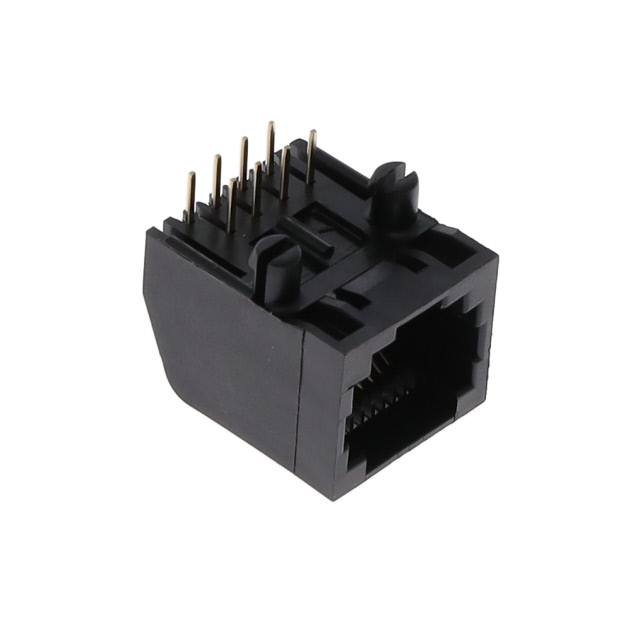

Amphenol ICC (Commercial Products) | Thermoplastic | 15 µin | 0.38 µm | 85 °C | -40 C | 1 | Down | Board Lock | 1 | Unshielded | Solder | Jack | Phosphor Bronze | 90 ° | Through Hole | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Gold |
 Amphenol ICC (Commercial Products) | Thermoplastic | 50 µin | 1.27 µm | 85 °C | -40 C | 1 | Down | Board Lock Panel Stops | 1 | Shielded | Solder | Jack | Phosphor Bronze | 90 ° | Through Hole | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Gold |
 Amphenol ICC (Commercial Products) | Thermoplastic | 6 Áin | 0.152 Ám | 85 °C | -40 C | 1 | Down | Board Lock | 1 | Unshielded | Solder | Jack | Phosphor Bronze | 90 ° | Through Hole | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Gold |
