70T3539M Series

512K x 36 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Manufacturer: Renesas Electronics Corporation

Catalog

512K x 36 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Part	Technology	Clock Frequency	Memory Size	Memory Interface	Package / Case	Access Time	Memory Type	Supplier Device Package	Mounting Type	Memory Organization [custom]	Memory Organization [custom]	Memory Format	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]

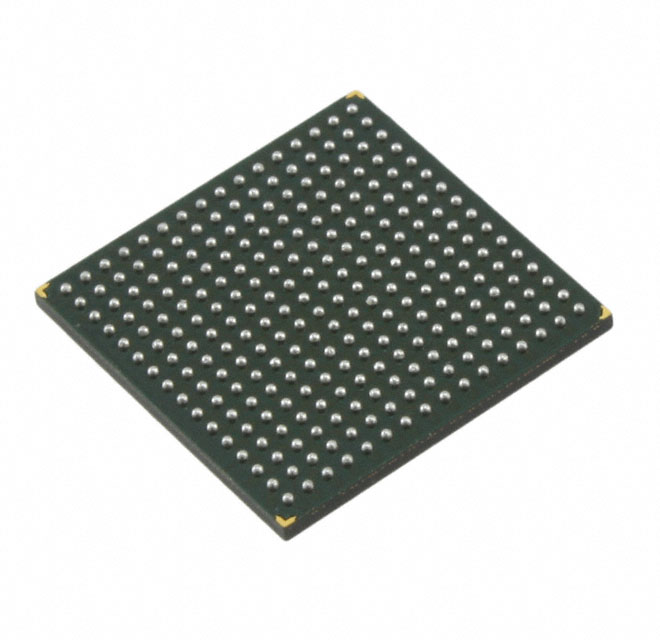

Renesas Electronics Corporation 70T3539MS133BCI	SRAM - Dual Port Synchronous	133 MHz	18 Mbit	Parallel	256-LBGA	4.2 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	85 C	-40 ¯C
Renesas Electronics Corporation 70T3539MS133BC	SRAM - Dual Port Synchronous	133 MHz	18 Mbit	Parallel	256-LBGA	4.2 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	70 °C	0 °C
Renesas Electronics Corporation 70T3539MS133BCI8	SRAM - Dual Port Synchronous	133 MHz	18 Mbit	Parallel	256-LBGA	4.2 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	85 C	-40 ¯C

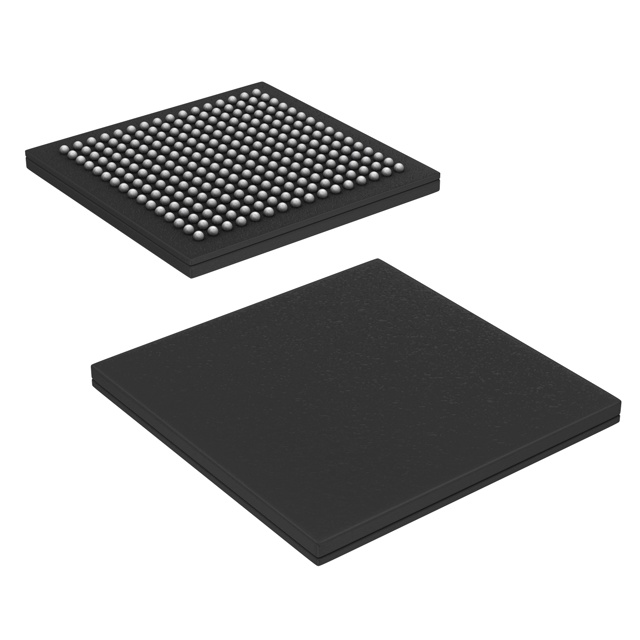

Renesas Electronics Corporation 70T3539MS166BCG	SRAM - Dual Port Synchronous	166 MHz	18 Mbit	Parallel	256-LBGA	3.6 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	70 °C	0 °C
Renesas Electronics Corporation 70T3539MS166BC	SRAM - Dual Port Synchronous	166 MHz	18 Mbit	Parallel	256-LBGA	3.6 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	70 °C	0 °C
Renesas Electronics Corporation 70T3539MS133BCGI	SRAM - Dual Port Synchronous	133 MHz	18 Mbit	Parallel	256-LBGA	4.2 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	85 C	-40 ¯C
Renesas Electronics Corporation 70T3539MS133BC8	SRAM - Dual Port Synchronous	133 MHz	18 Mbit	Parallel	256-LBGA	4.2 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	70 °C	0 °C
Renesas Electronics Corporation 70T3539MS133BCG	SRAM - Dual Port Synchronous	133 MHz	18 Mbit	Parallel	256-LBGA	4.2 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	70 °C	0 °C
Renesas Electronics Corporation 70T3539MS166BC8	SRAM - Dual Port Synchronous	166 MHz	18 Mbit	Parallel	256-LBGA	3.6 ns	Volatile	256-CABGA (17x17)	Surface Mount	512 K	36	SRAM	2.4 V	2.6 V	70 °C	0 °C

Catalog

512K x 36 Sync, 3.3V/2.5V Dual-Port RAM, Interleaved I/O's

Description

The 70T3539M is a high-speed 512K x 36 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T353M can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.
