EADSS056 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

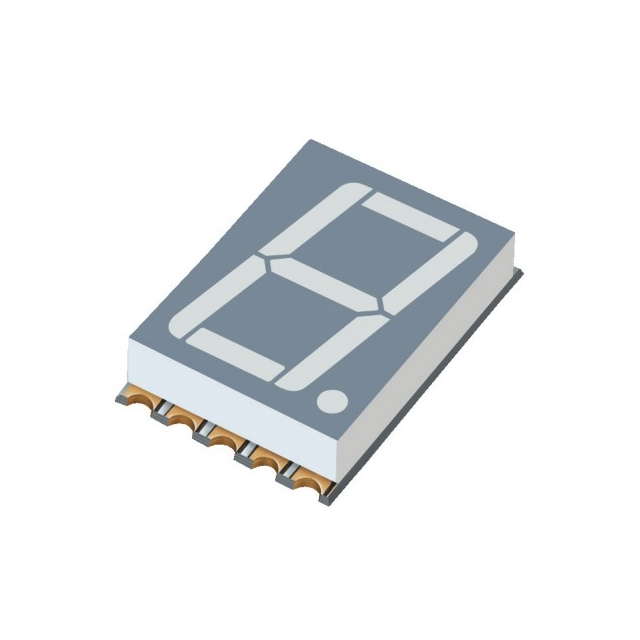

DISPLAY 7SEG 0.56" SGL RED 10SMD
| Part | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Current - Test | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Number of Characters | Color | Package / Case | Common Pin | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | 24 mcd | 2 V | 12.5 mm | 0.748 in | 0.492 " | 0.124 " | 19 mm | 3.15 mm | 20 mA | 0.56 in | 14.22 mm | 632 nm | 1 | Red | 10-SMD No Lead | Common Anode | 7-Segment |
Everlight Electronics Co Ltd | 24 mcd | 3 V | 12.5 mm | 0.748 in | 0.492 " | 0.124 " | 19 mm | 3.15 mm | 20 mA | 0.56 in | 14.22 mm | 468 nm | 1 | Blue | 10-SMD No Lead | Common Anode | 7-Segment |
Everlight Electronics Co Ltd | 34 mcd | 2 V | 12.5 mm | 0.748 in | 0.492 " | 0.124 " | 19 mm | 3.15 mm | 20 mA | 0.56 in | 14.22 mm | 632 nm | 1 | Red | 10-SMD No Lead | Common Cathode | 7-Segment |
 Everlight Electronics Co Ltd | 8.9 mcd | 2 V | 12.5 mm | 0.748 in | 0.492 " | 0.124 " | 19 mm | 3.15 mm | 20 mA | 0.56 in | 14.22 mm | 575 nm | 1 | Yellow-Green | 10-SMD No Lead | Common Cathode | 7-Segment |
