CC3220MODA Series

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® wireless MCU with secure boot and 256kB RAM

Catalog

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® wireless MCU with secure boot and 256kB RAM

Part	Supplied Contents	Frequency	Type	For Use With/Related Products	Serial Interfaces	GPIO	Mounting Type	Data Rate (Max) [Max]	Memory Size	Supplier Device Package	RF Family/Standard	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Receiving	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Protocol	Supplier Device Package [y]	Supplier Device Package [x]	Sensitivity
Texas Instruments CC3220SF-LAUNCHXL	Board(s) Cable(s)	2.4 GHz	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	CC3220SF
Texas Instruments CC3220SF12ARGKT		2.4 GHz	TxRx + MCU		ADC I2C PCM SPI UART	27	Surface Mount	54 Mbps	1 MB 256 kB	64-VQFN (9x9)	WiFi	DSSS OFDM	85 °C	-40 °C	64-VFQFN Exposed Pad	59 mA	18 dBm	2.1 V	3.6 V	223 mA	802.11b/g/n
Texas Instruments CC3220RM2ARGKR		2.4 GHz	TxRx + MCU		ADC I2C PCM SPI UART	27	Surface Mount	54 Mbps	256 kB	64-VQFN (9x9)	WiFi	DSSS OFDM	85 °C	-40 °C	64-VFQFN Exposed Pad	59 mA	18 dBm	2.1 V	3.6 V	223 mA	802.11b/g/n
Texas Instruments CC3220SM2ARGKT		2.4 GHz	TxRx + MCU		ADC I2C PCM SPI UART	27	Surface Mount	54 Mbps	256 kB	64-VQFN (9x9)	WiFi	DSSS OFDM	85 °C	-40 °C	64-VFQFN Exposed Pad	59 mA	18 dBm	2.1 V	3.6 V	223 mA	802.11b/g/n

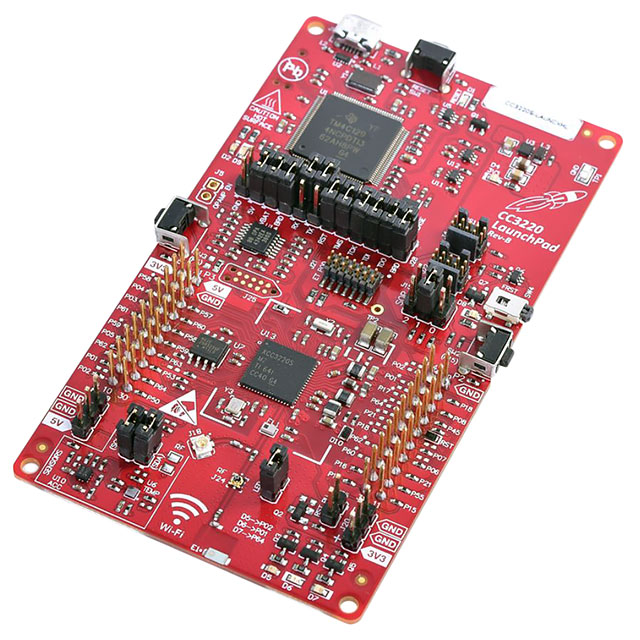

Texas Instruments CC3220S-LAUNCHXL	Board(s) Cable(s)	2.4 GHz	Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	CC3220S
Texas Instruments CC3220SF12ARGKR		2.4 GHz	TxRx + MCU		ADC I2C PCM SPI UART	27	Surface Mount	54 Mbps	1 MB 256 kB	64-VQFN (9x9)	WiFi	DSSS OFDM	85 °C	-40 °C	64-VFQFN Exposed Pad	59 mA	18 dBm	2.1 V	3.6 V	223 mA	802.11b/g/n
Texas Instruments CC3220RM2ARGKT		2.4 GHz	TxRx + MCU		ADC I2C PCM SPI UART	27	Surface Mount	54 Mbps	256 kB	64-VQFN (9x9)	WiFi	DSSS OFDM	85 °C	-40 °C	64-VFQFN Exposed Pad	59 mA	18 dBm	2.1 V	3.6 V	223 mA	802.11b/g/n
Texas Instruments CC3220MODSF12MOBR		2.4 GHz	TxRx + MCU		I2C SPI UART	21	Surface Mount		1 MB 256 kB	63-QFM	WiFi	DSSS OFDM	85 °C	-40 °C	63-SMD Module	59 mA	17 dBm	2.3 V	3.6 V	223 mA	802.11b/g/n	17.5	20.5	-95 dBm
Texas Instruments CC3220MODASM2MONR		2.4 GHz	TxRx + MCU			21			256 kB		WiFi	DSSS OFDM	85 °C	-40 °C	63-SMD Module		17 dBm	2.3 V	3.6 V		802.11b/g/n			-95 dBm
Texas Instruments CC3220SM2ARGKR		2.4 GHz	TxRx + MCU		ADC I2C PCM SPI UART	27	Surface Mount	54 Mbps	256 kB	64-VQFN (9x9)	WiFi	DSSS OFDM	85 °C	-40 °C	64-VFQFN Exposed Pad	59 mA	18 dBm	2.1 V	3.6 V	223 mA	802.11b/g/n

Catalog

SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® wireless MCU with secure boot and 256kB RAM

Key Features

• CC3220MODx is a family of wireless MCU modules consisting of SimpleLink™ Wi-Fi single chip wireless MCUs—the CC3220MODS and CC3220MODAS modules consist of the CC3220SM2ARGK wireless MCU, while the CC3220MODSF and CC3220MODASF modules consist of the CC3220SF12ARGK wireless MCU. Fully integrated, industrial temperature-grade, green modules include all required clocks, SPI Flash, and passivesCC3220MODAx modules include an integral antenna for easy integration into the host systemCC3220MODx and CC3220MODAx SimpleLink™ Wi-Fi®wireless MCU System-on-Chip (SoC) contains a single chip with two separate execution environments:User application dedicated Arm Cortex-M4 MCUNetwork processor MCU to run all Wi-Fi and internet logical layersFCC, IC, CE, MIC, and SRRC CertifiedWi-Fi Alliance members can request certificate transfer of Wi-Fi CERTIFIED™ modules1.27-mm pitch QFM package for easy assembly and low-cost PCB designApplications MCU subsystem:Arm®Cortex®-M4 core at 80 MHzEmbedded memory:CC3220MODS and CC3220MODAx variants include 256KB of RAMCC3220MODSF and CC3220MODASF are Flash-based MCUs with an integrated 1MB of Flash and 256KB of RAMPeripheral drivers in ROMMcASP supports two I2S channelsSDSPII2CUART8-Bit synchronous image interfaceFour General-Purpose Timers (GPTs) with 16-Bit PWM modeOne Watchdog Timer Module4-channel, 12-bit Analog-to-Digital Converters (ADCs)Debug interfaces: JTAG, cJTAG, and SWDWi-Fi network processor subsystem:Wi-Fi®Internet-on-a chip™ dedicated Arm®MCU completely offloads Wi-Fi and internet protocols from the application MCUWi-Fi®Modes:802.11b/g/n Station802.11b/g/n Access Point Supports up to Four StationsWi-Fi Direct Client and Group OwnerWPA2™ Personal and Enterprise Security: WEP, WPA™, WPA2 PSK, and WPA2 Enterprise (802.1x), WPA3™ personal and enterpriseIPv4 and IPv6 TCP and IP StackIndustry-Standard BSD Socket Application Programming Interfaces (APIs):16 Simultaneous TCP or UDP Sockets6 Simultaneous TLS and SSL SocketsIP Addressing: StaticIP, LLA, DHCPv4, DHCPv6 with Duplicate Address Detection (DAD)SimpleLink™ technology connection manager for autonomous and fast Wi-Fi connectionsFlexible Wi-Fi provisioning with SmartConfig™ technology, AP Mode, and WPS2 OptionsRESTful API support using internal HTTP serverEmbedded network applications running on dedicated network processorWide set of security features:Hardware features:Separate execution environmentsDevice identityHardware crypto engine for advanced fast security, including: AES, DES, 3DES, SHA2, MD5, CRC, and ChecksumInitial secure programming:Debug securityJTAG and debug ports are lockedPersonal and enterprise Wi-Fi securitySecure sockets (SSLv3, TLS1.0, TLS1.1, TLS1.2)Networking securityHTTPS serverTrusted Root-Certificate CatalogTI Root-of-Trust Public KeySW IP protection:Secure key storageFile system securitySoftware tamper detectionCloning protectionSecure Boot: Validate integrity and authenticity of runtime binary during bootEmbedded network applications running on dedicated network processor:HTTP and HTTPS web server with dynamic user callbacksmDNS, DNS-SD, and DHCP ServersPingRecovery mechanism: can recover to factory defaults or to complete factory imageWi-Fi TX power:17.0 dBm at 1 DSSS13.5 dBm at 54 OFDMWi-Fi RX sensitivity:–95.0 dBm at 1 DSSS–73.5 dBm at 54 OFDMApplication Throughput:UDP: 16 MbpsTCP: 13 MbpsPower-management subsystem:Integrated DC/DC converter with a wide-supply voltageVBAT: 2.3 to 3.6 VAdvanced low-power modes:Shutdown: 1 µAHibernate: 5 µALow-Power Deep Sleep (LPDS): 135 µA (measured on CC3220MODS and CC3220MODSF with 256KB RAM retention)RX Traffic (MCU Active): 59 mA (measured on CC3220MODS; CC3220MODSF and CC3220MODASF consume an additional 15 mA) at 54 OFDMTX Traffic (MCU Active): 223 mA (measured on CC3220MODS; CC3220MODSF and CC3220MODASF consume an additional 15 mA) at 54 OFDM, maximum powerIdle connected (MCU in LPDS): 710 µA (measured on CC3220MODS and CC3220MODSF with 256KB RAM retention) at DTIM = 1Additional integrated components:40.0-MHz crystal32.768-kHz crystal (RTC)32-Mbit SPI Serial FlashRF filter and passive componentsFootprint compatible QFM package:CC3220MODx: 1.27-mm pitch, 63-pin, 20.5-mm × 17.5-mmCC3220MODAx: 1.27-mm pitch, 63-pin, 20.5-mm × 25.0-mmOperating temperature:Ambient temperature range: –40°C to +85°CModule supportsSimpleLink Developer’s EcosystemCC3220MODx is a family of wireless MCU modules consisting of SimpleLink™ Wi-Fi single chip wireless MCUs—the CC3220MODS and CC3220MODAS modules consist of the CC3220SM2ARGK wireless MCU, while the CC3220MODSF and CC3220MODASF modules consist of the CC3220SF12ARGK wireless MCU. Fully integrated, industrial temperature-grade, green modules include all required clocks, SPI Flash, and passivesCC3220MODAx modules include an integral antenna for easy integration into the host systemCC3220MODx and CC3220MODAx SimpleLink™ Wi-Fi®wireless MCU System-on-Chip (SoC) contains a single chip with two separate execution environments:User application dedicated Arm Cortex-M4 MCUNetwork processor MCU to run all Wi-Fi and internet logical layersFCC, IC, CE, MIC, and SRRC CertifiedWi-Fi Alliance members can request certificate transfer of Wi-Fi CERTIFIED™ modules1.27-mm pitch QFM package for easy assembly and low-cost PCB designApplications MCU subsystem:Arm®Cortex®-M4 core at 80 MHzEmbedded memory:CC3220MODS and CC3220MODAx variants include 256KB of RAMCC3220MODSF and CC3220MODASF are Flash-based MCUs with an integrated 1MB of Flash and 256KB of RAMPeripheral drivers in ROMMcASP supports two I2S channelsSDSPII2CUART8-Bit synchronous image interfaceFour General-Purpose Timers (GPTs) with 16-Bit PWM modeOne Watchdog Timer Module4-channel, 12-bit Analog-to-Digital Converters (ADCs)Debug interfaces: JTAG, cJTAG, and SWDWi-Fi network processor subsystem:Wi-Fi®Internet-on-a chip™ dedicated Arm®MCU completely offloads Wi-Fi and internet protocols from the application MCUWi-Fi®Modes:802.11b/g/n Station802.11b/g/n Access Point Supports up to Four StationsWi-Fi Direct Client and Group OwnerWPA2™ Personal and Enterprise Security: WEP, WPA™, WPA2 PSK, and WPA2 Enterprise (802.1x), WPA3™ personal and enterpriseIPv4 and IPv6 TCP and IP StackIndustry-Standard BSD Socket Application Programming Interfaces (APIs):16 Simultaneous TCP or UDP Sockets6 Simultaneous TLS and SSL SocketsIP Addressing: StaticIP, LLA, DHCPv4, DHCPv6 with Duplicate Address Detection (DAD)SimpleLink™ technology connection manager for autonomous and fast Wi-Fi connectionsFlexible Wi-Fi provisioning with SmartConfig™ technology, AP Mode, and WPS2 OptionsRESTful API support using internal HTTP serverEmbedded network applications running on dedicated network processorWide set of security features:Hardware features:Separate execution environmentsDevice identityHardware crypto engine for advanced fast security, including: AES, DES, 3DES, SHA2, MD5, CRC, and ChecksumInitial secure programming:Debug securityJTAG and debug ports are lockedPersonal and enterprise Wi-Fi securitySecure sockets (SSLv3, TLS1.0, TLS1.1, TLS1.2)Networking securityHTTPS serverTrusted Root-Certificate CatalogTI Root-of-Trust Public KeySW IP protection:Secure key storageFile system securitySoftware tamper detectionCloning protectionSecure Boot: Validate integrity and authenticity of runtime binary during bootEmbedded network applications running on dedicated network processor:HTTP and HTTPS web server with dynamic user callbacksmDNS, DNS-SD, and DHCP ServersPingRecovery mechanism: can recover to factory defaults or to complete factory imageWi-Fi TX power:17.0 dBm at 1 DSSS13.5 dBm at 54 OFDMWi-Fi RX sensitivity:–95.0 dBm at 1 DSSS–73.5 dBm at 54 OFDMApplication Throughput:UDP: 16 MbpsTCP: 13 MbpsPower-management subsystem:Integrated DC/DC converter with a wide-supply voltageVBAT: 2.3 to 3.6 VAdvanced low-power modes:Shutdown: 1 µAHibernate: 5 µALow-Power Deep Sleep (LPDS): 135 µA (measured on CC3220MODS and CC3220MODSF with 256KB RAM retention)RX Traffic (MCU Active): 59 mA (measured on CC3220MODS; CC3220MODSF and CC3220MODASF consume an additional 15 mA) at 54 OFDMTX Traffic (MCU Active): 223 mA (measured on CC3220MODS; CC3220MODSF and CC3220MODASF consume an additional 15 mA) at 54 OFDM, maximum powerIdle connected (MCU in LPDS): 710 µA (measured on CC3220MODS and CC3220MODSF with 256KB RAM retention) at DTIM = 1Additional integrated components:40.0-MHz crystal32.768-kHz crystal (RTC)32-Mbit SPI Serial FlashRF filter and passive componentsFootprint compatible QFM package:CC3220MODx: 1.27-mm pitch, 63-pin, 20.5-mm × 17.5-mmCC3220MODAx: 1.27-mm pitch, 63-pin, 20.5-mm × 25.0-mmOperating temperature:Ambient temperature range: –40°C to +85°CModule supportsSimpleLink Developer’s Ecosystem

Description

Start your design with the fully programmable FCC, IC, CE, MIC, and SRRC Certified wireless microcontroller (MCU) module with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220MODx and CC3220MODAx module family from Texas Instruments™ is a wireless module that integrates two physically separated on-chip MCUs. The CC3220MODx and CC3220MODAx wireless MCU family is a part of the second generation of the Internet-on-a chip™ family of solutions from TI. This generation introduces new features and capabilities that further simplify the connectivity of things to the internet. The new capabilities include: The power-management subsystem includes integrated DC/DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 5 µA), and shutdown mode (consuming only 1 µA). The module includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and a 4-channel ADC. The SimpleLink CC3220MODx and CC3220MODAx module family come in four different module variants: CC3220MODS, CC3220MODSF, CC3220MODA, and CC3220MODASF. The four modules integrate the 40-MHz crystal, 32.768-kHz RTC clock, 32-Mb SPI serial Flash, RF filter, and passive components. The modules also have additional security features, such as encrypted and authenticated file systems, user IP encryption and authentication, secured boot (authentication and integrity validation of the application image at Flash boot time), and more. The CC3220MODx and CC3220MODAx devices are a part of the SimpleLink™ MCU platform, which consists of Wi-Fi, Bluetooth low energy, Sub-1 GHz, and host MCUs. All share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform lets you add any combination of devices from the portfolio into your design. The ultimate goal of the SimpleLink platform is to achieve 100 percent code reuse when your design requirements change. The CC3220MODx and CC3220MODAx module family is a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the E2E™ online community. The module family is also part of the SimpleLink™ MCU portfolio and supports the SimpleLink™ developers ecosystem. For more information, visitwww.ti.com/simplelink. Start your design with the fully programmable FCC, IC, CE, MIC, and SRRC Certified wireless microcontroller (MCU) module with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220MODx and CC3220MODAx module family from Texas Instruments™ is a wireless module that integrates two physically separated on-chip MCUs. The CC3220MODx and CC3220MODAx wireless MCU family is a part of the second generation of the Internet-on-a chip™ family of solutions from TI. This generation introduces new features and capabilities that further simplify the connectivity of things to the internet. The new capabilities include: The power-management subsystem includes integrated DC/DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 5 µA), and shutdown mode (consuming only 1 µA). The module includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and a 4-channel ADC. The SimpleLink CC3220MODx and CC3220MODAx module family come in four different module variants: CC3220MODS, CC3220MODSF, CC3220MODA, and CC3220MODASF. The four modules integrate the 40-MHz crystal, 32.768-kHz RTC clock, 32-Mb SPI serial Flash, RF filter, and passive components. The modules also have additional security features, such as encrypted and authenticated file systems, user IP encryption and authentication, secured boot (authentication and integrity validation of the application image at Flash boot time), and more. The CC3220MODx and CC3220MODAx devices are a part of the SimpleLink™ MCU platform, which consists of Wi-Fi, Bluetooth low energy, Sub-1 GHz, and host MCUs. All share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform lets you add any combination of devices from the portfolio into your design. The ultimate goal of the SimpleLink platform is to achieve 100 percent code reuse when your design requirements change. The CC3220MODx and CC3220MODAx module family is a complete platform solution including software, sample applications, tools, user and programming guides, reference designs, and the E2E™ online community. The module family is also part of the SimpleLink™ MCU portfolio and supports the SimpleLink™ developers ecosystem. For more information, visitwww.ti.com/simplelink.
