P160K Series

Catalog

POT 100K OHM 1/5W PLASTIC LINEAR

Part	Size - Body [diameter]	Size - Body [diameter]	Taper	Rotation	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Termination Style	Resistive Material	Mounting Type	Adjustment Type	Tolerance	Built in Switch	Actuator Length [x]	Actuator Length [x]	Actuator Type	Power (Watts)	Power (Watts)	Bushing Thread	Number of Gangs	Resistance (Ohms)	Number of Turns	Resistance (Ohms) [custom]	Resistance (Ohms)
TT Electronics/BI P160KNP-0EB10B100K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	10 mm	0.394 in	Slotted	0.2 W	0.2 W	M7 x 0.75	1	100k	1
TT Electronics/BI P160KNP-0QC20B50K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	20 mm	0.787 in	Knurled and Slotted	0.2 W	0.2 W	M7 x 0.75	1		1	50 kOhms

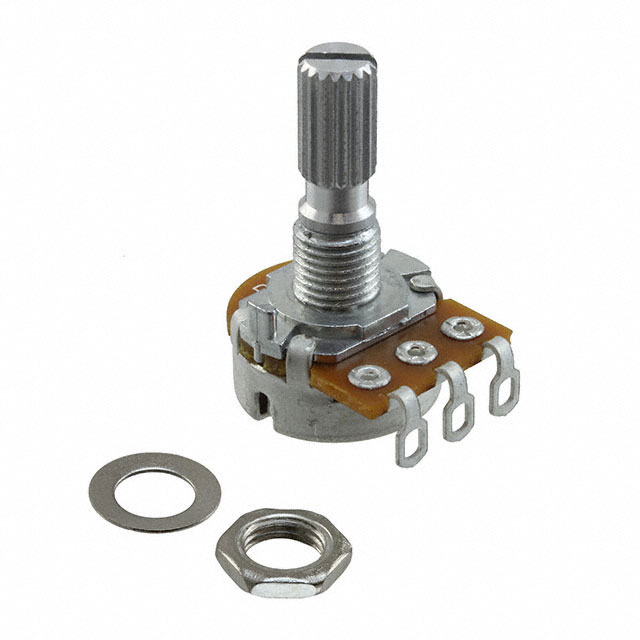

TT Electronics/BI P160KNP-0Q20B100K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	20 mm	0.787 in	Knurled and Slotted	0.2 W	0.2 W	M7 x 0.75	1	100k	1

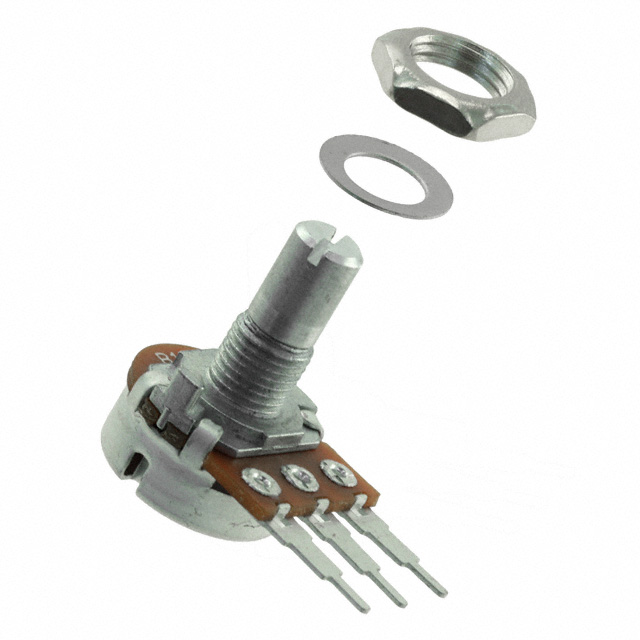

TT Electronics/BI P160KN2-0EC15B1MEG	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	PC Pins	Conductive Plastic	Panel Mount	Side Adjustment	20 %	None	15 mm	0.591 in	Slotted	0.2 W	0.2 W	M7 x 0.75	1		1		1 MΩ
TT Electronics/BI P160KNP-0QC20B500K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	20 mm	0.787 in	Knurled and Slotted	0.2 W	0.2 W	M7 x 0.75	1		1		500 kOhms
TT Electronics/BI P160KNP-0FC20B10K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	20 mm	0.787 in	Flatted	0.2 W	0.2 W	M7 x 0.75	1	10k	1
TT Electronics/BI P160KNP-0FC25B10K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	25 mm	0.984 in	Flatted	0.2 W	0.2 W	M7 x 0.75	1	10k	1
TT Electronics/BI P160KNP-0QC15A1K	17 mm	0.669 "	Logarithmic	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	None	15 mm	0.591 in	Knurled and Slotted	0.1 W	0.1 W	M7 x 0.75	1	1k	1
TT Electronics/BI P160KNP-4QC15B100K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	Solder Lug	Conductive Plastic	Panel Mount	User Defined	20 %	Detent	15 mm	0.591 in	Knurled and Slotted	0.2 W	0.2 W	M7 x 0.75	1	100k	1
TT Electronics/BI P160KN-0EC15B100K	17 mm	0.669 "	Linear	300 ░	6 mm	0.236 in	PC Pins	Conductive Plastic	Panel Mount	Side Adjustment	20 %	None	15 mm	0.591 in	Slotted	0.2 W	0.2 W	M7 x 0.75	1	100k	1
