D50S24A4 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

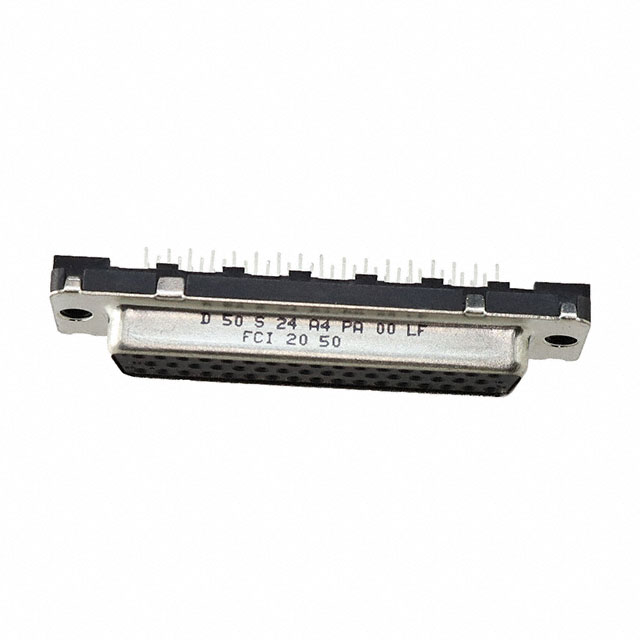

CONN D-SUB RCPT 50POS VERT SLDR
| Part | Current Rating (Amps) | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Contact Material | Shell Size, Connector Layout | Number of Positions | Contact Type | Dielectric Material | Contact Finish | Mounting Type | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Style | Flange Feature | Termination | Number of Rows | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 5 A | Steel Tin-Nickel Plated | UL94 V-0 | Flash | Phosphor Bronze | 5 | 50 | Signal | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 300 VDC | -55 °C | 125 °C | Black | D-Sub | Housing/Shell (Unthreaded) | Solder | 3 | Receptacle Female Sockets |
Amphenol ICC (FCI) | 5 A | UL94 V-0 | Flash | Phosphor Bronze | 5 | 50 | Signal | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 300 VDC | -55 °C | 125 °C | Black | D-Sub | Housing/Shell (4-40) | Solder | 3 | Receptacle Female Sockets | |
Amphenol ICC (FCI) | 5 A | Steel Tin-Nickel Plated | UL94 V-0 | Flash | Phosphor Bronze | 5 | 50 | Signal | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 300 VDC | -55 °C | 125 °C | Black | D-Sub | Housing/Shell (M3) | Solder | 3 | Receptacle Female Sockets |

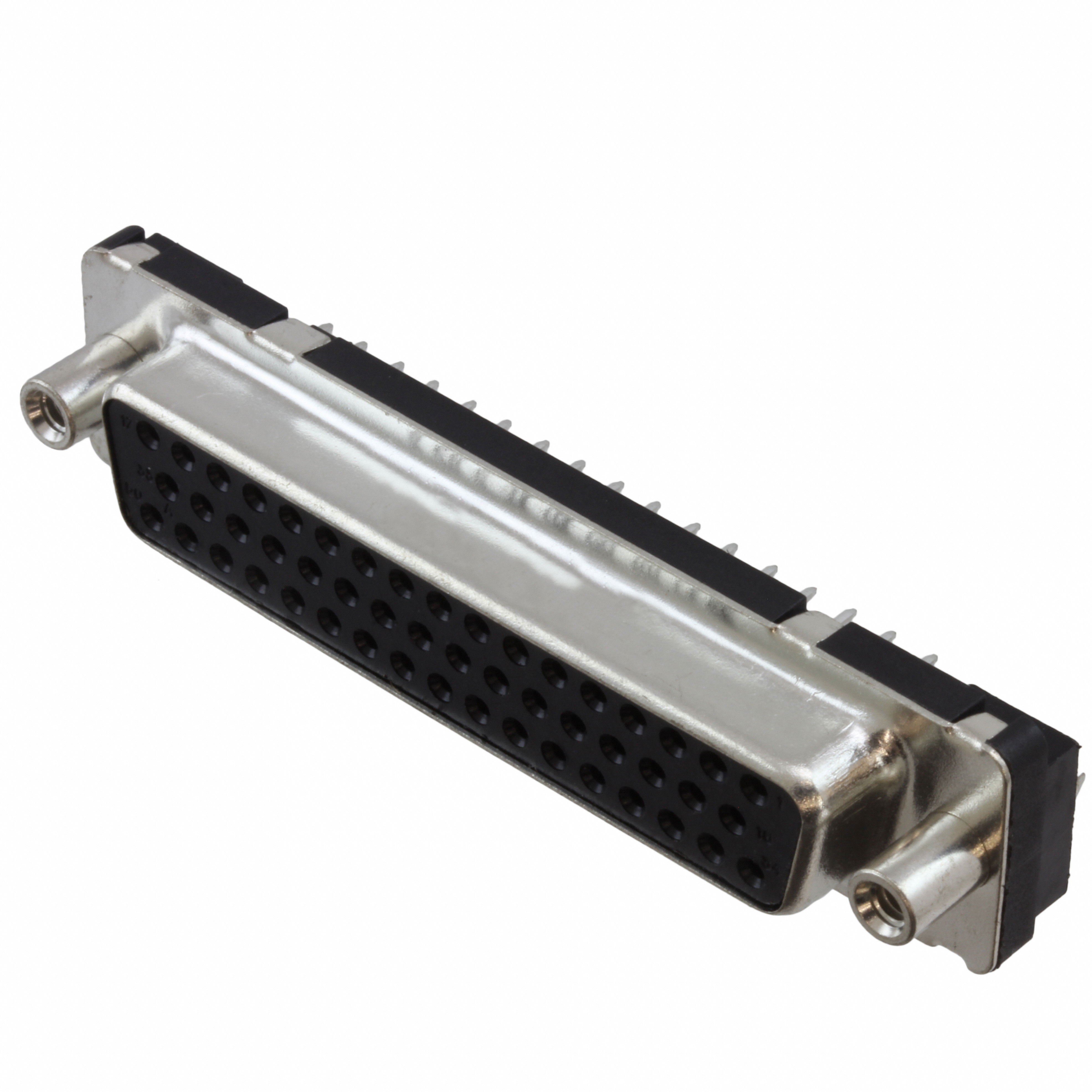

 Amphenol ICC (FCI) | 5 A | Steel Tin-Nickel Plated | UL94 V-0 | Flash | Phosphor Bronze | 5 | 50 | Signal | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 300 VDC | -55 °C | 125 °C | Black | D-Sub | Female Screwlock (4-40) Mating Side | Solder | 3 | Receptacle Female Sockets |
Amphenol ICC (FCI) | 5 A | UL94 V-0 | Flash | Phosphor Bronze | 5 | 50 | Signal | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 300 VDC | -55 °C | 125 °C | Black | D-Sub | Housing/Shell (M3) | Solder | 3 | Receptacle Female Sockets | |
Amphenol ICC (FCI) | 5 A | UL94 V-0 | Flash | Phosphor Bronze | 5 | 50 | Signal | Polybutylene Terephthalate (PBT) | Gold | Through Hole | 300 VDC | -55 °C | 125 °C | Black | D-Sub | Housing/Shell (M3) | Solder | 3 | Receptacle Female Sockets |
