ICS-3 Series
Manufacturer: Adam Tech
Beta
⌘K

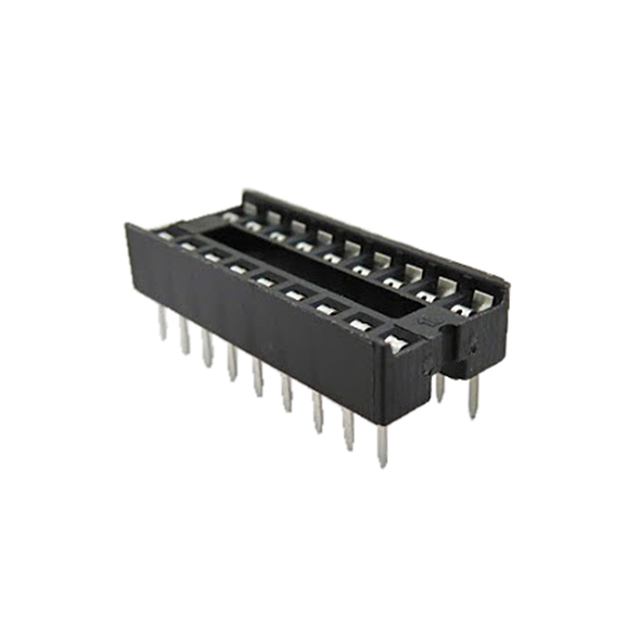

IC SOCKET, DIP, 18P 2.54MM PITCH
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Contact Material - Post | Housing Material | Termination | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Features | Number of Positions or Pins (Grid) | Pitch - Post | Pitch - Post | Type | Type | Type | Mounting Type | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 1 A | 20 mOhm | UL94 V-0 | 3.15 mm | 0.124 in | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Phosphor Bronze | 0.1 " | 2.54 mm | -55 C | 105 ░C | Tin | Open Frame | 18 | 0.1 in | 2.54 mm | 7.62 mm | 0.3 in | DIP | Through Hole | ||||

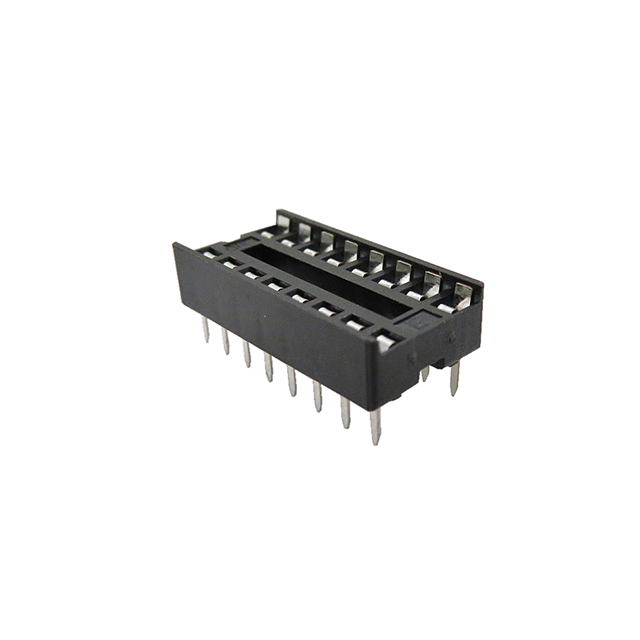

 Adam Tech | 1 A | 20 mOhm | UL94 V-0 | 3.15 mm | 0.124 in | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Phosphor Bronze | 0.1 " | 2.54 mm | -55 C | 105 ░C | Tin | Open Frame | 16 | 0.1 in | 2.54 mm | 7.62 mm | 0.3 in | DIP | Through Hole | 2 | 8 | ||

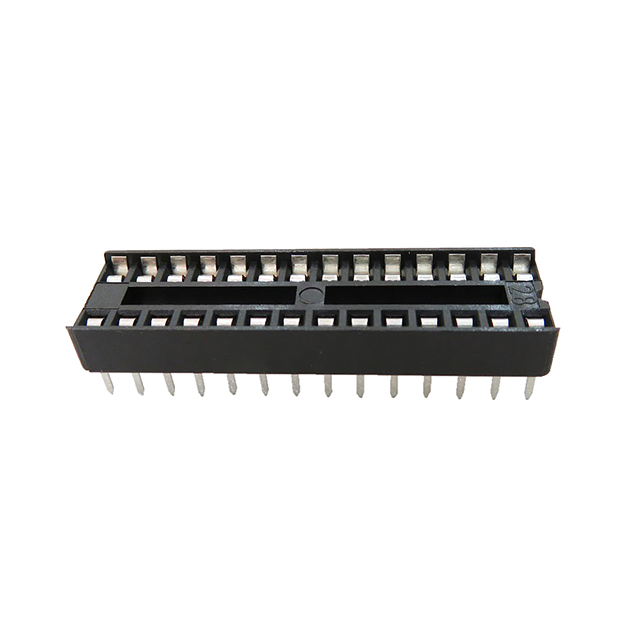

 Adam Tech | 1 A | 20 mOhm | UL94 V-0 | 3.15 mm | 0.124 in | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Phosphor Bronze | 0.1 " | 2.54 mm | -55 C | 105 ░C | Tin | Open Frame | 28 | 0.1 in | 2.54 mm | 7.62 mm | 0.3 in | DIP | Through Hole | ||||

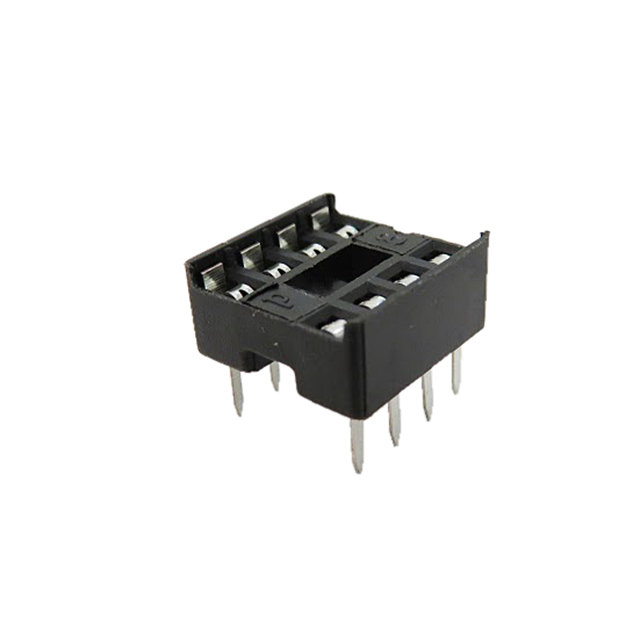

 Adam Tech | 1 A | 20 mOhm | UL94 V-0 | 3.15 mm | 0.124 in | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Phosphor Bronze | 0.1 " | 2.54 mm | -55 C | 105 ░C | Tin | Open Frame | 8 | 0.1 in | 2.54 mm | 7.62 mm | 0.3 in | DIP | Through Hole | 2 | 4 |
