8347-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

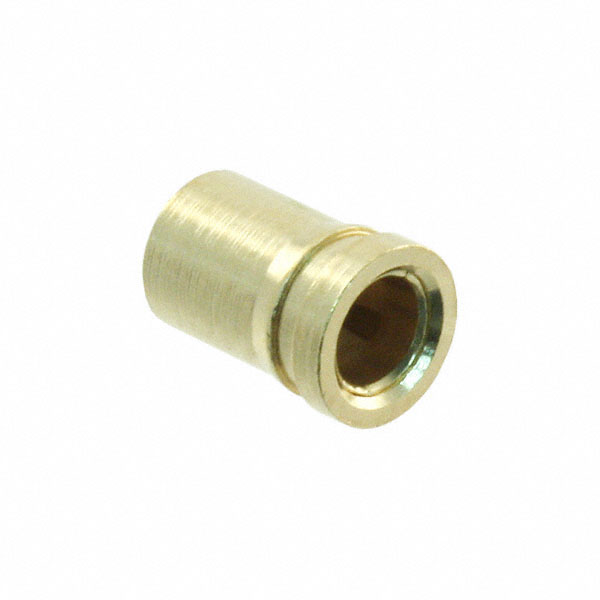

SOLDER MOUNT RECEPTACLE; ACCEPTS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Termination | Length - Overall | Length - Overall | Tail Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | Beryllium Copper | Solder | 2.87 in | 72.9 mm | No Tail | 2.77 mm | 0.109 in | 30 Áin | 0.76 Ám | 1.22 mm | 0.064 in | 0.048 in | 1.63 mm | 0.125 in | 3.18 mm | 2.24 mm | 0.088 " |
