C5503AR Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

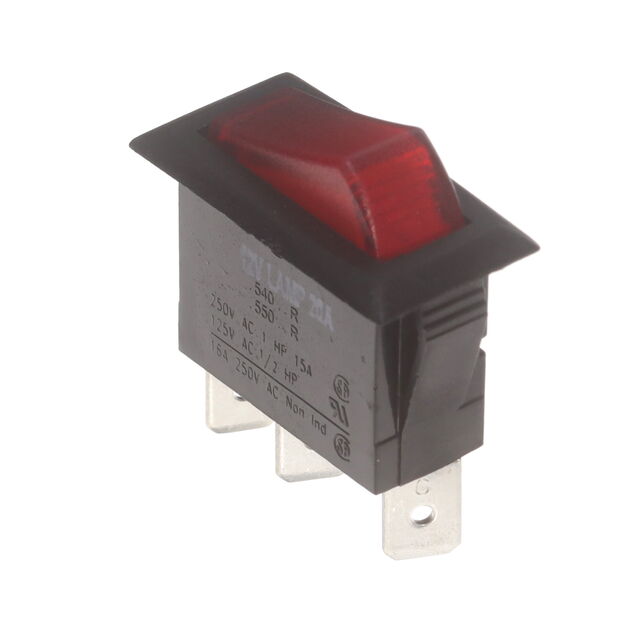

SWITCH ROCKER SPST 16A 250V
| Part | Circuit | Termination Style | Illumination Type, Color | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Mounting Type | Switch Function | Actuator Type | Actuator Marking | Approval Agency | Illumination Voltage (Nominal) | Voltage Rating - AC | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | SPST | Quick Connect - 0.250" (6.3mm) | Incandescent | 16 A | 28.6 mm | 14.1 mm | Black | Panel Mount Snap-In | On-Off | Concave (Curved) - Illuminated | No Marking | CSA UL | 12 VAC | 250 V | ||
BULGIN LIMITED | SPST | Quick Connect - 0.250" (6.3mm) | Neon Red | 16 A | 28.6 mm | 14.1 mm | Red | Panel Mount Snap-In | On-Off | Concave (Curved) - Illuminated | No Marking | CSA UL | 125 VAC | 250 V | ||
 BULGIN LIMITED | SPST | Quick Connect - 0.250" (6.3mm) | Incandescent Red | 16 A | 28.6 mm | 14.1 mm | Red | Panel Mount Snap-In | On-Off | Concave (Curved) - Illuminated | No Marking | CSA UL | 12 VAC | 250 V | ||
 BULGIN LIMITED | SPST | Quick Connect - 0.250" (6.3mm) | Neon Red | 16 A | 28.6 mm | 14.1 mm | Red | Panel Mount Snap-In | On-Off | Concave (Curved) - Illuminated | No Marking | CSA UL | 250 VAC | 250 V | ||
BULGIN LIMITED | SPST | Quick Connect - 0.250" (6.3mm) | 16 A | 28.6 mm | 14.1 mm | Green | Panel Mount Snap-In | On-Off | Concave (Curved) - Illuminated | O - | CSA UL | 250 VAC | 250 V | Neon | Green |
