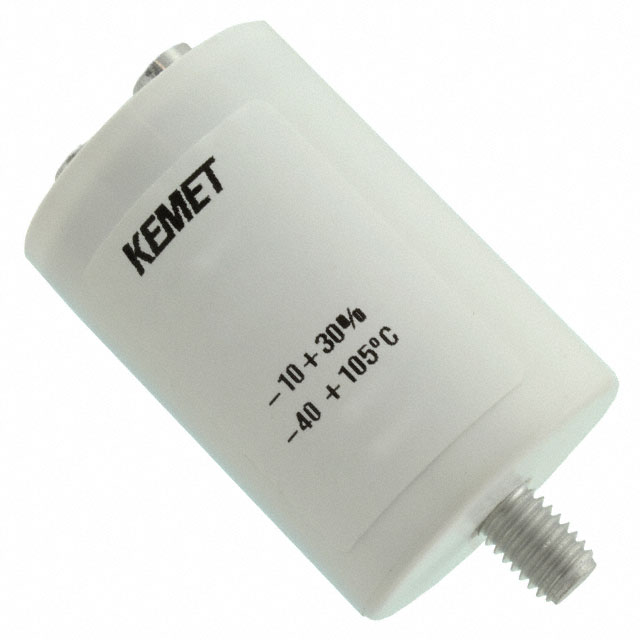

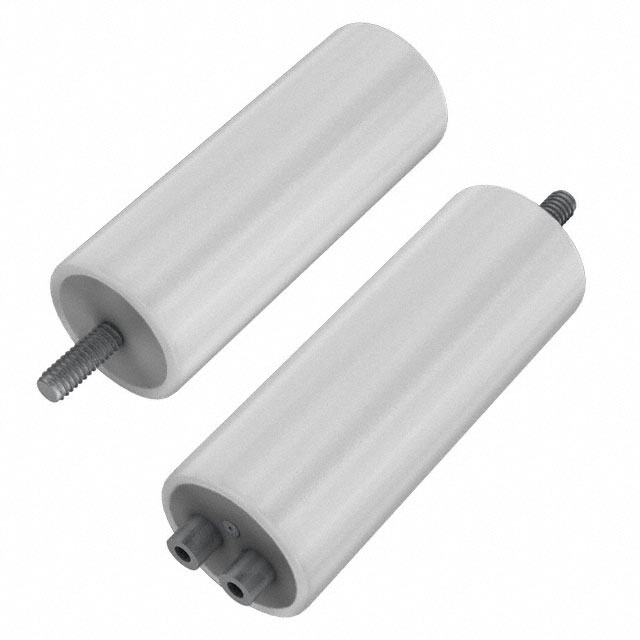

PEH169M Series

Manufacturer: KEMET

Catalog

CAP ALUM 4700UF 63V SCREW CHAS M

Part	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance [Min]	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Impedance	Polarization	Applications	Mounting Type	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PEH169MD4470QB2	0.512 "	13 mm	4700 µF	1.441 in	36.6 mm	-40 C	105 ░C	-10 %	30 %	97.5 mm	3.839 in	Radial Can - Screw Terminals	11 mOhms	Polar	General Purpose	Chassis Mount	22 mOhm	7000 Hrs	63 V
KEMET PEH169MA4220QB2	0.512 "	13 mm	2200 µF	1.378 "	35 mm	-40 C	105 ░C	-10 %	30 %			Radial Can - Screw Terminals		Polar	General Purpose	Chassis Mount	46 mOhm	7000 Hrs	63 V	2.047 in	52 mm
