INA826S Series

Precision, 200-μA Supply Current, 36-V Supply Instrumentation Amplifier

Catalog

Precision, 200-μA Supply Current, 36-V Supply Instrumentation Amplifier

Part	-3db Bandwidth	Slew Rate	Current - Output / Channel	Amplifier Type	Output Type	Supplied Contents	Utilized IC / Part	Board Type	Current - Supply (Main IC)	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±)	Channels per IC	Mounting Type	Number of Circuits	Voltage - Input Offset	Supplier Device Package	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Current - Supply	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Min) [Min]	Package / Case [y]	Package / Case [x]	Package / Case [custom]	Package / Case

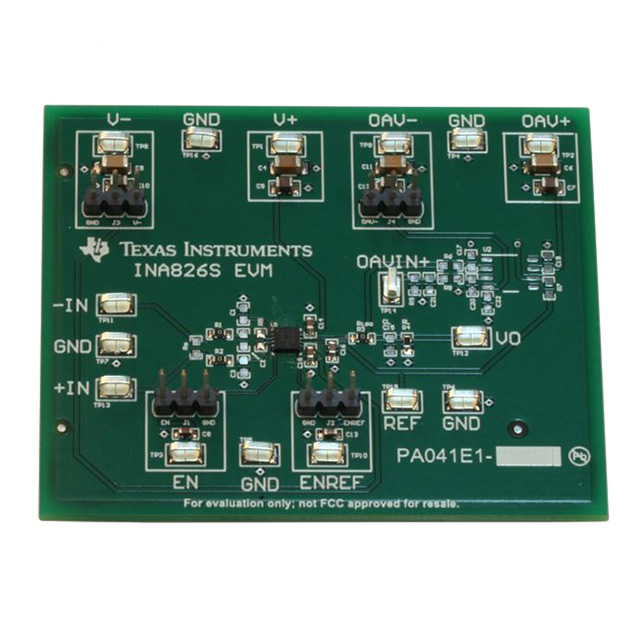

Texas Instruments INA826SEVM	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail Single-Ended	Board(s)	INA826S	Fully Populated	200 µA	-15 V	15 V	5 V	1 - Single
Texas Instruments INA826SIDRCT	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail									Surface Mount	1	40 µV	10-VSON (3x3)	35 nA	36 V	200 µA	10-VFDFN Exposed Pad	125 °C	-40 °C	2.7 V
Texas Instruments INA826AIDR	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail									Surface Mount	1	40 µV	8-SOIC	35 nA	36 V	200 µA	8-SOIC	125 °C	-40 °C	2.7 V	3.9 mm	0.154 in
Texas Instruments INA826AIDRGR	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail									Surface Mount	1	40 µV	8-SON (3x3)	35 nA	36 V	200 µA	8-WFDFN Exposed Pad	125 °C	-40 °C	2.7 V
Texas Instruments INA826AIDGKR	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail									Surface Mount	1	40 µV		35 nA	36 V	200 µA	8-MSOP 8-TSSOP	125 °C	-40 °C	2.7 V			0.118 in	3 mm
Texas Instruments INA826SIDRCR	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail									Surface Mount	1	40 µV	10-VSON (3x3)	35 nA	36 V	200 µA	10-VFDFN Exposed Pad	125 °C	-40 °C	2.7 V
Texas Instruments INA826AID	1 MHz	1 V/µs	16 mA	Instrumentation	Rail-to-Rail									Surface Mount	1	40 µV	8-SOIC	35 nA	36 V	200 µA	8-SOIC	125 °C	-40 °C	2.7 V	3.9 mm	0.154 in

Catalog

Precision, 200-μA Supply Current, 36-V Supply Instrumentation Amplifier

Key Features

• Input Common-Mode Range: Includes V–Common-Mode Rejection:104 dB (Min, G = 10)100 dB (Min at 5 kHz, G = 10)Power-Supply Rejection: 100 dB (Min, G = 1)Low Offset Voltage: 150 µV, maxGain Drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)Noise: 18 nV/√Hz, G ≥ 100Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)Inputs Protected up to ±40 VRail-to-Rail OutputSupply Current: 200 µAShutdown Current: 2 µASupply Range:Single Supply: 3 V to 36 VDual Supply: ±1.5 V to ±18 VSpecified Temperature Range:–40°C to +125°CPackages: 3-mm × 3-mm VSONInput Common-Mode Range: Includes V–Common-Mode Rejection:104 dB (Min, G = 10)100 dB (Min at 5 kHz, G = 10)Power-Supply Rejection: 100 dB (Min, G = 1)Low Offset Voltage: 150 µV, maxGain Drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)Noise: 18 nV/√Hz, G ≥ 100Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)Inputs Protected up to ±40 VRail-to-Rail OutputSupply Current: 200 µAShutdown Current: 2 µASupply Range:Single Supply: 3 V to 36 VDual Supply: ±1.5 V to ±18 VSpecified Temperature Range:–40°C to +125°CPackages: 3-mm × 3-mm VSON

Description

The INA826S device is a low-cost instrumentation amplifier that offers extremely low power consumption along with shutdown and operates over a very wide single- or dual-supply range. A single external resistor sets any gain from 1 to 1000. The device offers excellent stability over temperature, even at G > 1, as a result of the low gain drift of only 35 ppm/°C (max). The INA826S is optimized to provide excellent common-mode rejection ratio of over 100 dB (G = 10) over frequencies up to 5 kHz. At G = 1, the common-mode rejection ratio exceeds 84 dB across the full input common-mode range from the negative supply all the way up to 1 V of the positive supply. Using a rail-to-rail output, the INA826S is well-suited for low voltage operation from a 3-V single supply as well as dual supplies up to ±18 V. Shutdown pins are provided to reduce supply current below 2 µA. Additional circuitry protects the inputs against overvoltage of up to ±40 V beyond the power supplies by limiting the input currents to less than 8 mA. The INA826S is available in a 10-pin, 3-mm ×3-mm VSON surface-mount package. The INA826S is specified over the –40°C to +125°C temperature range. The INA826S device is a low-cost instrumentation amplifier that offers extremely low power consumption along with shutdown and operates over a very wide single- or dual-supply range. A single external resistor sets any gain from 1 to 1000. The device offers excellent stability over temperature, even at G > 1, as a result of the low gain drift of only 35 ppm/°C (max). The INA826S is optimized to provide excellent common-mode rejection ratio of over 100 dB (G = 10) over frequencies up to 5 kHz. At G = 1, the common-mode rejection ratio exceeds 84 dB across the full input common-mode range from the negative supply all the way up to 1 V of the positive supply. Using a rail-to-rail output, the INA826S is well-suited for low voltage operation from a 3-V single supply as well as dual supplies up to ±18 V. Shutdown pins are provided to reduce supply current below 2 µA. Additional circuitry protects the inputs against overvoltage of up to ±40 V beyond the power supplies by limiting the input currents to less than 8 mA. The INA826S is available in a 10-pin, 3-mm ×3-mm VSON surface-mount package. The INA826S is specified over the –40°C to +125°C temperature range.
