59024-116 Series

SW TGL 2POS DPDT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SW TGL 2POS DPDT

Part	Actuator Material	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Length [x]	Actuator Type	Switch Function	Illumination	Circuit	Termination Style	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 59024-200	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	On-Off	Non-Illuminated	SPST	Screw Terminal	25 A

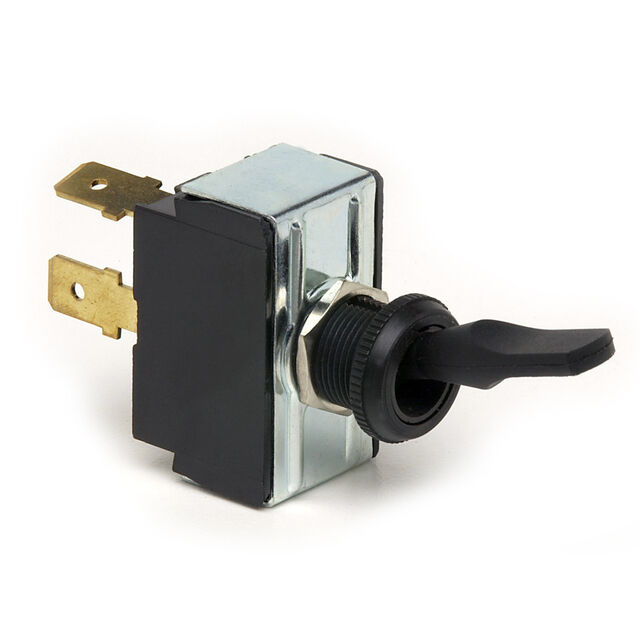

Littelfuse/Commercial Vehicle Products 59024-100	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	On-Off	Non-Illuminated	SPST	Quick Connect - 0.250" (6.3mm)	25 A
Littelfuse/Commercial Vehicle Products 59024-100-BX	Plastic	12 V		15/32-32	1 in	Paddle	On-Off	Non-Illuminated	SPST		25 A

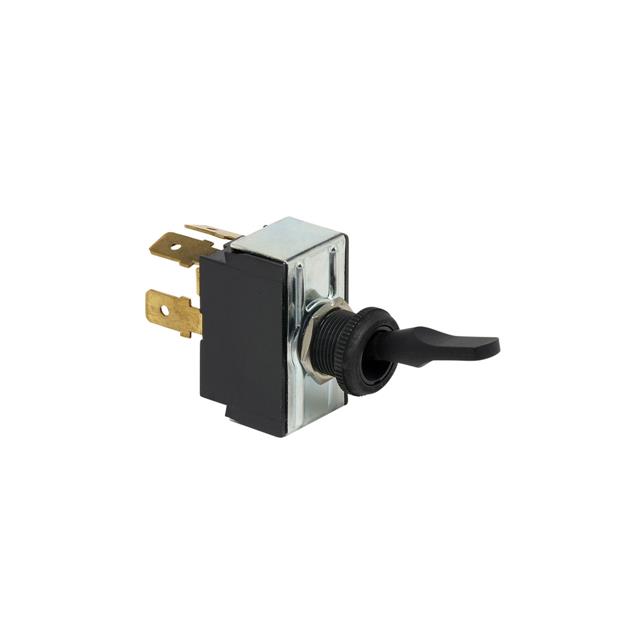

Littelfuse/Commercial Vehicle Products 59024-110	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	On-Off	Non-Illuminated	DPST	Quick Connect - 0.250" (6.3mm)	25 A
Littelfuse/Commercial Vehicle Products 59024-116	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	On-On	Non-Illuminated	DPDT	Quick Connect - 0.250" (6.3mm)	25 A
Littelfuse/Commercial Vehicle Products 59024-106	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	On-Off-On	Non-Illuminated	SPDT	Quick Connect - 0.250" (6.3mm)	25 A

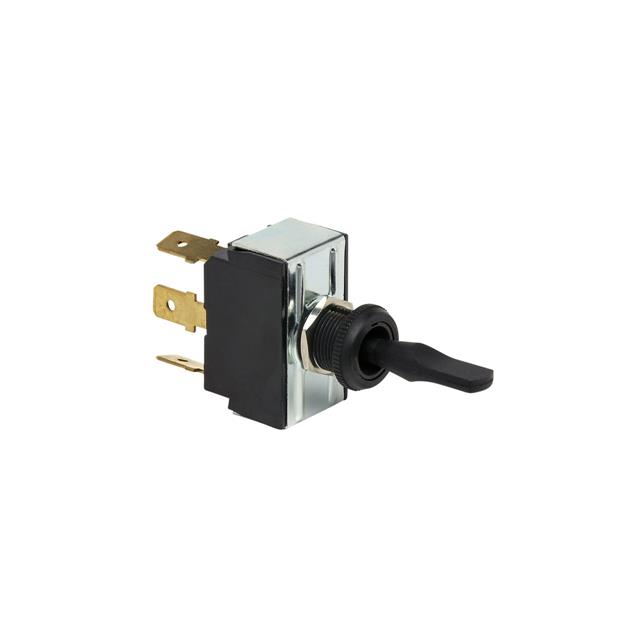

Littelfuse/Commercial Vehicle Products 59024-108	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	Mom-Off-Mom	Non-Illuminated	SPDT	Quick Connect - 0.250" (6.3mm)	25 A

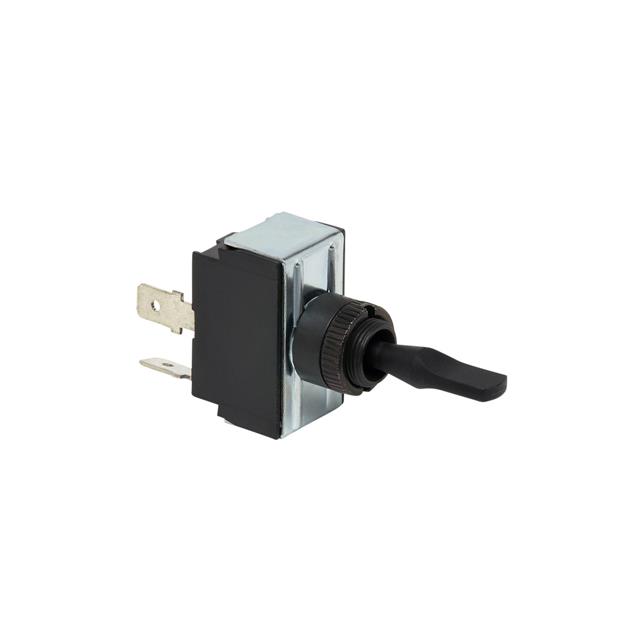

Littelfuse/Commercial Vehicle Products 59024-12	Plastic	12 V	11.9 mm	15/32-32	1 in	Paddle	On-Off	Non-Illuminated	SPST	Quick Connect - 0.250" (6.3mm)	25 A

Catalog

SW TGL 2POS DPDT

Description

This product is not recommended for new designsSilver contacts, 15/32"" -32 thread mounting stem. Fits panels up to 1/4"" (6.4mm) thick. Includes mounting hardware: black knurled facenut, hexnut. Keyway is in the down position. 1"" (25.4mm) handle, black plastic, matte finish. 25A at 12V DC. "
