RS30HT Series

Manufacturer: OptiFuse

Catalog

PTC RESET FUSE 30V 700MA RADIAL

Part	Resistance - Initial (Ri) (Min) [Min]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Time to Trip	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Voltage - Max [Max]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Hold (Ih) (Max)	Lead Spacing	Lead Spacing	Current - Hold (Ih) (Max) [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]

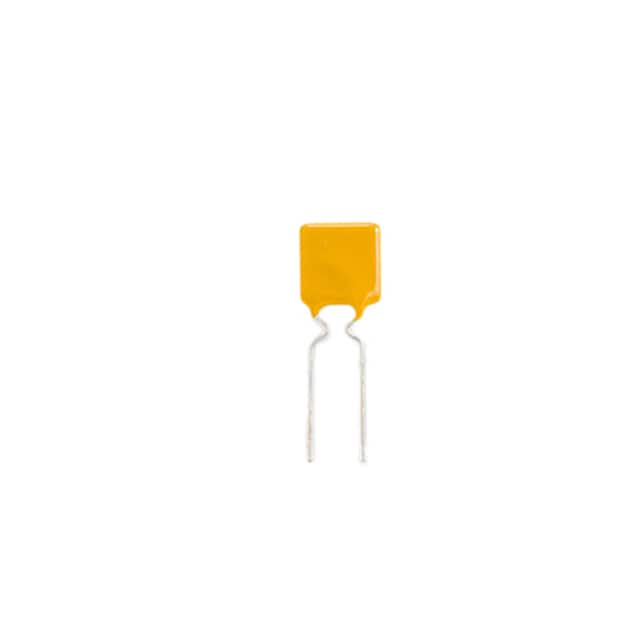

OptiFuse RS30HT-070	300 mOhms	Polymeric	0.118 in	3 mm	6.9 mm	0.272 in	40 A	3.2 s	0.425 in	10.8 mm	800 mOhms	1.4 A	30 V	Disc Radial	Through Hole	125 °C	-40 C	cULus	700 mA	0.201 in	5.1 mm
OptiFuse RS30HT-050		Polymeric					40 A	2.5 s	0.5 in	12.7 mm	1.1 Ohms	900 mA	30 V	Disc Radial	Through Hole	125 °C	-40 C	cULus		0.201 in	5.1 mm	500 mA	3 mm	7.4 mm	0.291 "	0.118 in
