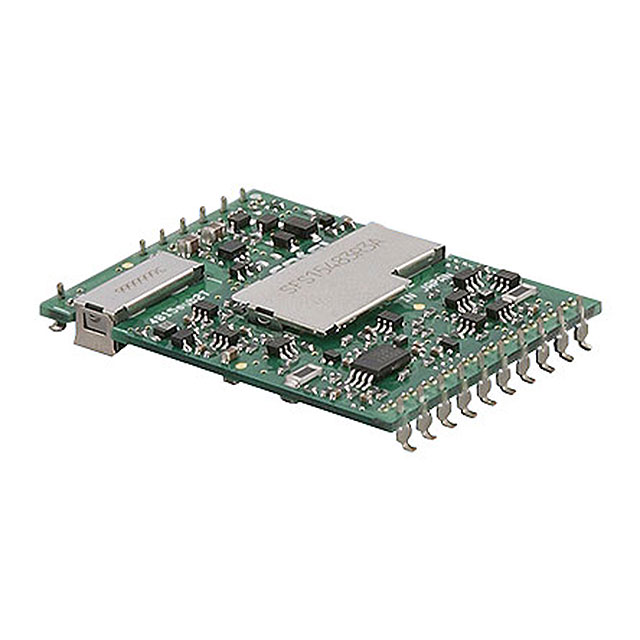

SFS154805 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 5V 15W
| Part | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Voltage - Isolation | Efficiency | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Applications | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 20-SMD Module 17 Leads | 0.2 " | 38.7 mm | 1.52 in | 27.2 mm | 5 mm | 1.07 in | 15 W | -40 °C | 85 °C | 5 V | Isolated Module | 36 V | 3 A | 1.5 kV | 90 % | 76 V | Surface Mount | 1 | ITE (Commercial) | |
 Cosel USA, Inc. | 20-DIP Module 17 Leads | 0.2 " | 38.7 mm | 1.52 in | 27.2 mm | 5 mm | 1.07 in | -40 C | 85 °C | 5 V | Isolated Module | 36 V | 3 A | 1.5 kV | 90 % | 76 V | Through Hole | 1 | ITE (Commercial) | OCP OVP Remote On/Off UVLO |
