ADS8168 Series

16-bit, 1-MSPS, 8-ch SAR ADC with VREF, VREF buffer and direct sensor interface

Catalog

16-bit, 1-MSPS, 8-ch SAR ADC with VREF, VREF buffer and direct sensor interface

Part	Supplied Contents	Number of Bits	Data Interface	Sampling Rate (Per Second)	Input Range	Number of A/D Converters	Utilized IC / Part	Number of Inputs	Reference Type	Configuration	Ratio - S/H:ADC	Features	Package / Case	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Architecture	Supplier Device Package	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Mounting Type

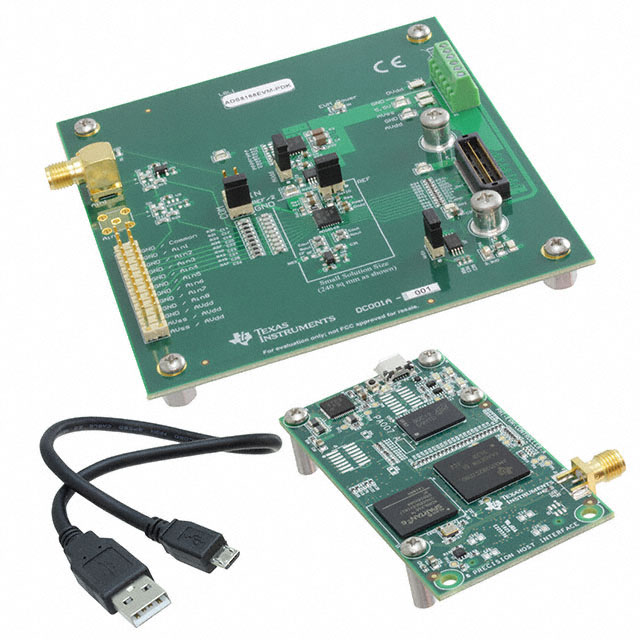

Texas Instruments ADS8168EVM-PDK	Board(s)	16	Parallel	1 M	±VREF/2	1	ADS8168
Texas Instruments ADS8168IRHBR		16	SPI	1 M		1		8	External Internal	MUX-ADC	0:1	Internal Oscillator	32-VFQFN Exposed Pad	5.5 V	1.65 V	Pseudo-Differential Single Ended	125 °C	-40 °C	SAR	32-VQFN (5x5)	3 V	5.5 V	Surface Mount

Catalog

16-bit, 1-MSPS, 8-ch SAR ADC with VREF, VREF buffer and direct sensor interface

Key Features

• Compact low-power data acquisition system:MUX breakout enables single external driver amplifier16-bit SAR ADCLow-drift integrated reference and buffer0.5 × VREF output for analog input DC biasingExcellent AC and DC performance:SNR: 92dB, THD: –110dBINL: ±0.3LSB, 16-bit no missing codesMultiplexer with channel sequencer:Multiple channel-sequencing options:Manual mode, on-the-fly mode, auto sequence mode, custom channel sequencingFast response time with on-the-fly modeSystem monitoring features:Per channel programmable window comparatorFalse trigger avoidance with programmable hysteresisEnhanced-SPI digital interface:1MSPS throughput with 16MHz SCLKHigh-speed, 50MHz digital interfaceWide operating range:External VREF input range: 2.5V to 5VAVDD from 3V to 5.5VDVDD from 1.65V to 5.5V–40°C to +125°C temperature rangeCompact low-power data acquisition system:MUX breakout enables single external driver amplifier16-bit SAR ADCLow-drift integrated reference and buffer0.5 × VREF output for analog input DC biasingExcellent AC and DC performance:SNR: 92dB, THD: –110dBINL: ±0.3LSB, 16-bit no missing codesMultiplexer with channel sequencer:Multiple channel-sequencing options:Manual mode, on-the-fly mode, auto sequence mode, custom channel sequencingFast response time with on-the-fly modeSystem monitoring features:Per channel programmable window comparatorFalse trigger avoidance with programmable hysteresisEnhanced-SPI digital interface:1MSPS throughput with 16MHz SCLKHigh-speed, 50MHz digital interfaceWide operating range:External VREF input range: 2.5V to 5VAVDD from 3V to 5.5VDVDD from 1.65V to 5.5V–40°C to +125°C temperature range

Description

The ADS816x is a family of 16-bit, 8-channel, high-precision successive approximation register (SAR) analog-to-digital converters (ADCs). The ADCs operate from a single 5V supply with a 1MSPS (ADS8168), 500kSPS (ADS8167), and 250kSPS (ADS8166) total throughput. The input multiplexer supports extended settling time, which makes driving the analog inputs easier. The output of the multiplexer and ADC analog inputs are available as device pins. This configuration allows one ADC driver op amp to be used for all eight analog inputs of the multiplexer. The ADS816x features a digital window comparator with programmable high and low alarm thresholds per analog input channel. The single op-amp solution with programmable alarm thresholds enables low power, low cost, and smallest form-factor applications. The ADS816x is a family of 16-bit, 8-channel, high-precision successive approximation register (SAR) analog-to-digital converters (ADCs). The ADCs operate from a single 5V supply with a 1MSPS (ADS8168), 500kSPS (ADS8167), and 250kSPS (ADS8166) total throughput. The input multiplexer supports extended settling time, which makes driving the analog inputs easier. The output of the multiplexer and ADC analog inputs are available as device pins. This configuration allows one ADC driver op amp to be used for all eight analog inputs of the multiplexer. The ADS816x features a digital window comparator with programmable high and low alarm thresholds per analog input channel. The single op-amp solution with programmable alarm thresholds enables low power, low cost, and smallest form-factor applications.
